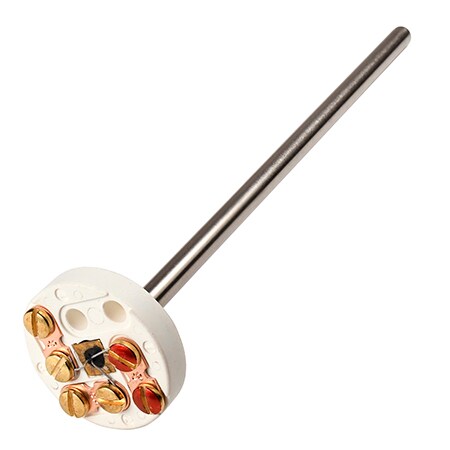

터미널 블록 RTD (PT100) 프로브
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 15개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Electrical Connection | Enclosure Ratings | Model | Nominal Resistance | Nominal Resistance/Curve Note | Number of Wires | Probe Diameter | Probe Length | Process Connection Size | Process Temperature, Max | Process Temperature, Min | RTD Type | Response Time | Sheath Material | Shock | Temperature Coefficient | Temperature Coefficient Note | Temperature Sensor Type | Thermocouple Type | Vibration | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PR-15L-3-100-1/8-12243,530 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Screw Terminal | IP67 | Low | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.125 in | 12 in | N/A | 250 °C | -50 °C | 100 Ω Pt Sensor | 2.40 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15L-3-100-1/8-18가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Screw Terminal | IP67 | Low | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.125 in | 18 in | N/A | 250 °C | -50 °C | 100 Ω Pt Sensor | 2.40 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15H-3-100-1/4-24가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | Screw Terminal | IP67 | High | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 24 in | N/A | 450 °C | -50 °C | 100 Ω Pt Sensor | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15H-3-100-1/4-12268,950 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | Screw Terminal | IP67 | High | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 12 in | N/A | 450 °C | -50 °C | 100 Ω Pt Sensor | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15E-3-100-1/8-12404,260 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -100 to 450°C (-148 to 842°F); or else Class B | Screw Terminal | IP67 | Extreme | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.125 in | 12 in | N/A | 600 °C | -200 °C | 100 Ω Pt Sensor | 9.00 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15E-3-100-1/8-18465,060 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -100 to 450°C (-148 to 842°F); or else Class B | Screw Terminal | IP67 | Extreme | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.125 in | 18 in | N/A | 600 °C | -200 °C | 100 Ω Pt Sensor | 9.00 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15L-3-100-1/4-9234,810 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Screw Terminal | IP67 | Low | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 9 in | N/A | 250 °C | -50 °C | 100 Ω Pt Sensor | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15L-3-100-1/4-6226,150 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Screw Terminal | IP67 | Low | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 6 in | N/A | 250 °C | -50 °C | 100 Ω Pt Sensor | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15L-3-100-1/4-4가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Screw Terminal | IP67 | Low | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 4 in | N/A | 250 °C | -50 °C | 100 Ω Pt Sensor | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15H-3-100-1/4-6가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | Screw Terminal | IP67 | High | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 6 in | N/A | 450 °C | -50 °C | 100 Ω Pt Sensor | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15H-3-100-1/4-9가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | Screw Terminal | IP67 | High | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 9 in | N/A | 450 °C | -50 °C | 100 Ω Pt Sensor | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15H-3-100-1/4-3가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | Screw Terminal | IP67 | High | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 3 in | N/A | 450 °C | -50 °C | 100 Ω Pt Sensor | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15H-2-100-1/4-6246,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | Screw Terminal | IP67 | High | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 2 | 0.25 in | 6 in | N/A | 450 °C | -50 °C | 100 Ω Pt Sensor | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15E-3-100-1/4-9377,030 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -100 to 450°C (-148 to 842°F); or else Class B | Screw Terminal | IP67 | Extreme | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 9 in | N/A | 600 °C | -200 °C | 100 Ω Pt Sensor | 10.60 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day | |
PR-15E-3-100-1/4-6350,190 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -100 to 450°C (-148 to 842°F); or else Class B | Screw Terminal | IP67 | Extreme | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 6 in | N/A | 600 °C | -200 °C | 100 Ω Pt Sensor | 10.60 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C | α = 0.00385 Ω/Ω/°C | RTD | N/A | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day |
