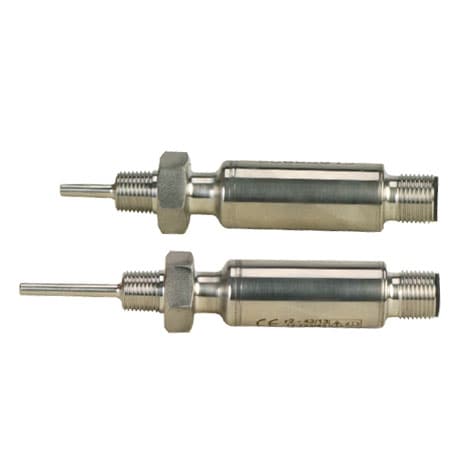

스테인리스 스틸 RTD 프로브, 4~20mA 아날로그 출력 및 장착 나사산
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Body Material | Downscale | EMC | Electrical Output | Enclosure Ratings | Enclosure Ratings Note | Factory Setting | Operating Temperature, Max | Operating Temperature, Min | Permissible Load | Permissible Load Note | Probe Diameter | Probe Length | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | RTD Type | Range Configurations Note | Relative Humidity, Max | Relative Humidity, Min | Response Time | Response Time Note | Sensor Break Monitoring Note | Sensor Error Compensation Note | Span Note | Span, Min | Supply Power Effects | Supply Voltage | Temperature Influence Note | Temperature Influence, Max | Temperature Sensor Type | Thermocouple Type | Tmax. Electronic | Upscale | Zero Setting Adjustable Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M12TXSS-PT100-24MM-1/8NPT250,380 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Stainless steel AISI 316L | 3.6 mA | In accordance to EN 61326 | 4 to 20 mA | IP67 | IP65 and IP67 in accordance to IEC60529 | 0 to 100°C/ sensor break >21 mA (upscale) | 80 °C | -40 °C | 700 | 700 @ 24 Vdc [RLo= (Vsupply-8.5)/0.020] | 3 mm | 24 mm | 1/8 in | NPT Male | 120 °C | -50 °C | 100 Ω Pt Sensor | It is possible set the input temperature range (span) by the M12TX-CONFIG-SETconfiguration kit (PC with OS Windows® required) | 1 | 0% | < 50 ms | Diameter 3 mm (0.12") <3.5 seconds, diameter 6 mm (0.24") <13 seconds (test in water to IEC751- time for reaching 63.2% of instantaneous temperature change) | Selectable: Upscale (>21.0 mA) or downscale (<3.6 mA) action Sensor Short-Circuit: Fixed to downscale (<3.6 mA) action | Over 2 points (maximum 1% of span) | 50°C (122°F) [if the zero value is set between one of these values: -40°C (-40°F), -20°C (-4°F), 0°C (32°F), 20°C (68°F), 40°C (104°F), the minimum span is 20°C (68°F) rather than 50°C (122°F)] | 50°C | Negligible | 8.5 to 32 Vdc | Maximum of ± 0.3°C/25°C (77°F) or ± 0.3% of span/25°C (77°F) | ± 0.3% | RTD | N/A | 80°C | 21 mA | Any value between -50 to 50°C (-58 to 122°F) | |
M12TXSS-PT100-13MM-1/8NPT230,210 원21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Stainless steel AISI 316L | 3.6 mA | In accordance to EN 61326 | 4 to 20 mA | IP67 | IP65 and IP67 in accordance to IEC60529 | 0 to 100°C/ sensor break >21 mA (upscale) | 80 °C | -40 °C | 700 | 700 @ 24 Vdc [RLo= (Vsupply-8.5)/0.020] | 3 mm | 13 mm | 1/8 in | NPT Male | 120 °C | -50 °C | 100 Ω Pt Sensor | It is possible set the input temperature range (span) by the M12TX-CONFIG-SETconfiguration kit (PC with OS Windows® required) | 1 | 0% | < 50 ms | Diameter 3 mm (0.12") <3.5 seconds, diameter 6 mm (0.24") <13 seconds (test in water to IEC751- time for reaching 63.2% of instantaneous temperature change) | Selectable: Upscale (>21.0 mA) or downscale (<3.6 mA) action Sensor Short-Circuit: Fixed to downscale (<3.6 mA) action | Over 2 points (maximum 1% of span) | 50°C (122°F) [if the zero value is set between one of these values: -40°C (-40°F), -20°C (-4°F), 0°C (32°F), 20°C (68°F), 40°C (104°F), the minimum span is 20°C (68°F) rather than 50°C (122°F)] | 50°C | Negligible | 8.5 to 32 Vdc | Maximum of ± 0.3°C/25°C (77°F) or ± 0.3% of span/25°C (77°F) | ± 0.3% | RTD | N/A | 80°C | 21 mA | Any value between -50 to 50°C (-58 to 122°F) | |
M12TXSS-PT100-24MM-G1/8230,590 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Stainless steel AISI 316L | 3.6 mA | In accordance to EN 61326 | 4 to 20 mA | IP67 | IP65 and IP67 in accordance to IEC60529 | 0 to 100°C/ sensor break >21 mA (upscale) | 80 °C | -40 °C | 700 | 700 @ 24 Vdc [RLo= (Vsupply-8.5)/0.020] | 3 mm | 24 mm | 1/8 in | BSPP Male | 120 °C | -50 °C | 100 Ω Pt Sensor | It is possible set the input temperature range (span) by the M12TX-CONFIG-SETconfiguration kit (PC with OS Windows® required) | 1 | 0% | < 50 ms | Diameter 3 mm (0.12") <3.5 seconds, diameter 6 mm (0.24") <13 seconds (test in water to IEC751- time for reaching 63.2% of instantaneous temperature change) | Selectable: Upscale (>21.0 mA) or downscale (<3.6 mA) action Sensor Short-Circuit: Fixed to downscale (<3.6 mA) action | Over 2 points (maximum 1% of span) | 50°C (122°F) [if the zero value is set between one of these values: -40°C (-40°F), -20°C (-4°F), 0°C (32°F), 20°C (68°F), 40°C (104°F), the minimum span is 20°C (68°F) rather than 50°C (122°F)] | 50°C | Negligible | 8.5 to 32 Vdc | Maximum of ± 0.3°C/25°C (77°F) or ± 0.3% of span/25°C (77°F) | ± 0.3% | RTD | N/A | 80°C | 21 mA | Any value between -50 to 50°C (-58 to 122°F) | |
M12TXSS-PT100-13MM-G1/8243,210 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Stainless steel AISI 316L | 3.6 mA | In accordance to EN 61326 | 4 to 20 mA | IP67 | IP65 and IP67 in accordance to IEC60529 | 0 to 100°C/ sensor break >21 mA (upscale) | 80 °C | -40 °C | 700 | 700 @ 24 Vdc [RLo= (Vsupply-8.5)/0.020] | 3 mm | 13 mm | 1/8 in | BSPP Male | 120 °C | -50 °C | 100 Ω Pt Sensor | It is possible set the input temperature range (span) by the M12TX-CONFIG-SETconfiguration kit (PC with OS Windows® required) | 1 | 0% | < 50 ms | Diameter 3 mm (0.12") <3.5 seconds, diameter 6 mm (0.24") <13 seconds (test in water to IEC751- time for reaching 63.2% of instantaneous temperature change) | Selectable: Upscale (>21.0 mA) or downscale (<3.6 mA) action Sensor Short-Circuit: Fixed to downscale (<3.6 mA) action | Over 2 points (maximum 1% of span) | 50°C (122°F) [if the zero value is set between one of these values: -40°C (-40°F), -20°C (-4°F), 0°C (32°F), 20°C (68°F), 40°C (104°F), the minimum span is 20°C (68°F) rather than 50°C (122°F)] | 50°C | Negligible | 8.5 to 32 Vdc | Maximum of ± 0.3°C/25°C (77°F) or ± 0.3% of span/25°C (77°F) | ± 0.3% | RTD | N/A | 80°C | 21 mA | Any value between -50 to 50°C (-58 to 122°F) |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
