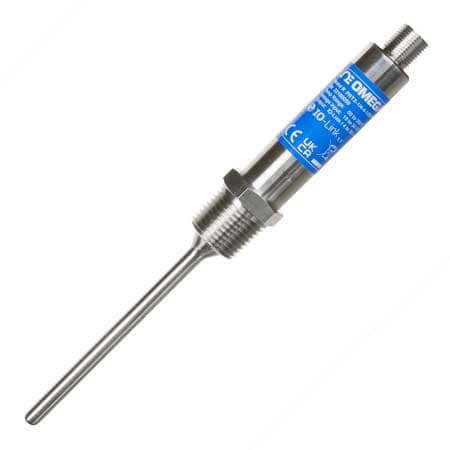

산업용 RTD 프로브, IO-Link, 4~20mA 및 스위치 출력
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 90개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Certifications | Data Interface | Electrical Output | Enclosure Ratings | Enclosure Ratings Note | Operating Temperature, Max | Operating Temperature, Min | Operating Voltage Note | Operating Voltage, Max | Operating Voltage, Min | Output Note | Probe Diameter | Probe Length | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | RTD Type | Response Time | Sheath Material | Temperature Sensor Type | Thermocouple Type | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PRTXI-G3/8-3/16-12-IO473,730 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 12 in | 3/8 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G1/4-3/16-12-IO452,870 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 12 in | 1/4 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G1/2-3/16-12-IO494,600 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 12 in | 1/2 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-3/8N-3/16-12-IO473,730 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 12 in | 3/8 in | NPT Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-1/4N-3/16-12-IO452,870 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 12 in | 1/4 in | NPT Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G3/8-3/16-6-IO461,230 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 6 in | 3/8 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-1/2N-3/16-12-IO494,600 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 12 in | 1/2 in | NPT Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G3/8-3/16-4-IO457,050 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 4 in | 3/8 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G3/8-3/16-3-IO454,940 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 3 in | 3/8 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G3/8-3/16-2-IO452,870 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 2 in | 3/8 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G3/8-1/8-12-IO484,170 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.125 in | 12 in | 3/8 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G3/8-1/4-12-IO463,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.25 in | 12 in | 3/8 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 4 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G1/4-3/16-4-IO436,170 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 4 in | 1/4 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G1/4-3/16-6-IO440,340 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 6 in | 1/4 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G1/4-3/16-3-IO434,070 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 3 in | 1/4 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G1/4-1/8-12-IO463,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.125 in | 12 in | 1/4 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G1/4-3/16-2-IO431,980 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 2 in | 1/4 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G1/4-1/4-12-IO442,420 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.25 in | 12 in | 1/4 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 4 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G1/2-3/16-6-IO482,070 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 6 in | 1/2 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A | |
PRTXI-G1/2-3/16-4-IO477,890 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Full Measuring Range ± 0.55 °C (0.99°F) Scaled Measuring Range ± [0.215 °C (0.39 °F) + 0.134 % x (Measuring Span)] | CE, UKCA | IO-Link | 4 to 20 mA | IP67, IP68, IP69K | 316L Stainless Steel, IP67/IP68/IP69K rated | 85 °C | -40 °C | 15 to 30 VDC (IO-Link/Switch); 10 to 30 VDC (Analog) | 30 VDC, 30 V | 15 VDC, 15 V | IO-Link Communication / PNP Switch (200 mA) / Analog 4-20 mA | 0.1875 in | 4 in | 1/2 in | BSPP Male | 200 °C | -50 °C | 100 Ω Pt Sensor | 2 sec | 316L Stainless Steel | RTD | N/A |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
