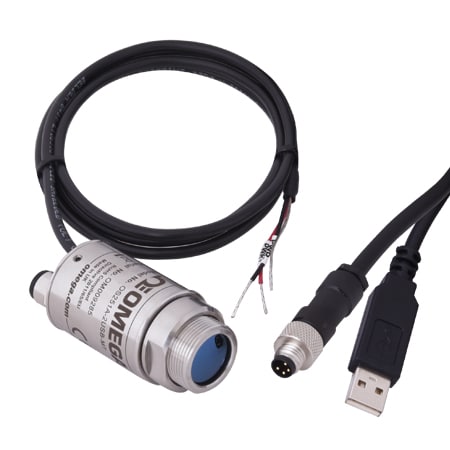

OS-TX-USB-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 9개의 상품

제품 번호 / 가격	Brand	Applications	Cable Length	Cooling	Data Interface	Data Interface Note	Display	Emissivity, Max	Emissivity, Min	Enclosure Ratings	Field of View Note	Field of view	Housing Material	Impedance	Intrisically Safe	Laser Output	Operating Temperature, Max	Optics	Output Detail	Output Signal	Process Temperature, Max	Process Temperature, Min	Relative Humidity Note	Relative Humidity, Max	Repeatability	Repeatability Note	Response Time	Sensing head Mounting	Sensor Voltage	Span, Max	Span, Min	Spectral Response, Max	Supply Voltage	Temperature Range	USB Cable Length	Weight
OS801A-2USB-MT2,216,390 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Industrial and Manufacturing	1 m	N/A	USB	USB 2.0 (removable USB cable and software included) using the Modbus protocol	No	1	0.1	IP65	Close-focus optics (focal spot size 7.5 mm at 500mm distance)	Close Focus	Stainless Steel	900 Ω	No	false	70 °C	801A	0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature	Current, Voltage	1000 °C	250 °C	95% max. non-condensing	0.95	± 0.5°C	± 0.5°C or 0.5% of readi ng, whichever is greater	200 ms	20 mm	6 Vdc	Full temperture Range	100 °C	2.2 μm	24 to 28 Vdc	MT	1.8 m	155 g
OS801A-2USB-HT2,266,080 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Industrial and Manufacturing	1 m	N/A	USB	USB 2.0 (removable USB cable and software included) using the Modbus protocol	No	1	0.1	IP65	Close-focus optics (focal spot size 7.5 mm at 500mm distance)	Close Focus	Stainless Steel	900 Ω	No	false	70 °C	801A	0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature	Current, Voltage	2000 °C	450 °C	95% max. non-condensing	0.95	± 0.5°C	± 0.5°C or 0.5% of readi ng, whichever is greater	200 ms	20 mm	6 Vdc	Full temperture Range	100 °C	2.2 μm	24 to 28 Vdc	HT	1.8 m	155 g
OS751A-2USB-MT1,942,960 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Industrial and Manufacturing	1 m	N/A	USB	USB 2.0 (removable USB cable and software included) using the Modbus protocol	No	1	0.1	IP65	75:1 - divergent	75:1	Stainless Steel	900 Ω	No	false	70 °C	751A	0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature	Current, Voltage	1000 °C	250 °C	95% max. non-condensing	0.95	± 0.5°C	± 0.5°C or 0.5% of readi ng, whichever is greater	200 ms	20 mm	6 Vdc	Full temperture Range	100 °C	2.2 μm	24 to 28 Vdc	MT	1.8 m	155 g
OS751A-2USB-HT2,129,650 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Industrial and Manufacturing	1 m	N/A	USB	USB 2.0 (removable USB cable and software included) using the Modbus protocol	No	1	0.1	IP65	75:1 - divergent	75:1	Stainless Steel	900 Ω	No	false	70 °C	751A	0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature	Current, Voltage	2000 °C	450 °C	95% max. non-condensing	0.95	± 0.5°C	± 0.5°C or 0.5% of readi ng, whichever is greater	200 ms	20 mm	6 Vdc	Full temperture Range	100 °C	2.2 μm	24 to 28 Vdc	HT	1.8 m	155 g
OS251A-2USB-HT1,662,230 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Industrial and Manufacturing	1 m	N/A	USB	USB 2.0 (removable USB cable and software included) using the Modbus protocol	No	1	0.1	IP65	25:1 - divergent	25:1	Stainless Steel	900 Ω	No	false	70 °C	251A	1 mV/degree, 0 to 5 Vdc or 4 to 20 mA	Current	2000 °C	450 °C	95% max. non-condensing	0.95	± 0.5°C	± 0.5°C or 0.5% of readi ng, whichever is greater	200 ms	20 mm	6 Vdc	Full temperture Range	100 °C	2.2 μm	24 to 28 Vdc	HT	1.8 m	155 g
OS251A-2USB-MT1,720,920 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Industrial and Manufacturing	1 m	N/A	USB	USB 2.0 (removable USB cable and software included) using the Modbus protocol	No	1	0.1	IP65	25:1 - divergent	25:1	Stainless Steel	900 Ω	No	false	70 °C	251A	2-wire, 4-20 mA, linear with measured temperature	Current	1000 °C	250 °C	95% max. non-condensing	0.95	± 0.5°C	± 0.5°C or 0.5% of readi ng, whichever is greater	200 ms	20 mm	6 Vdc	Full temperture Range	100 °C	2.2 μm	24 to 28 Vdc	MT	1.8 m	155 g
OS151A-2USB-LT1,704,640 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Industrial and Manufacturing	1 m	N/A	USB	USB 2.0 (removable USB cable and software included) using the Modbus protocol	No	1	0.1	IP65	15:1 - divergent(LT models only)	15:1	Stainless Steel	900 Ω	No	false	70 °C	151A	1 mV/degree, 0 to 5 Vdc or 4 to 20 mA	Current	300 °C	45 °C	95% max. non-condensing	-	± 0.5°C	± 0.5°C or 0.5% of readi ng, whichever is greater	200 ms	20 mm	6 Vdc	Full temperture Range	100 °C	2.2 μm	24 to 28 Vdc	LT	1.8 m	155 g
OS801A-USB1,465,150 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	General Purpose	1 m	N/A	USB	USB 2.0 (removable USB cable and software included) using the Modbus protocol	No	1	0.1	IP65	Close-focus optics (focal spot size 7.5 mm at 500mm distance)	Close Focus	Stainless Steel	900 Ω	No	false	70 °C	801A	0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature	Current, Voltage	1000 °C	-40 °C	95% max. non-condensing	0.95	± 0.5°C	± 0.5°C or 0.5% of readi ng, whichever is greater	200 ms	20 mm	6 Vdc	Full temperture Range	100 °C	5 μm	24 to 28 Vdc	N/A	1.8 m	155 g
OS301A-USB1,087,740 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	General Purpose	1 m	N/A	USB	USB 2.0 (removable USB cable and software included) using the Modbus protocol	No	1	0.1	IP65	30:1 - divergent	30:1	Stainless Steel	900 Ω	No	false	70 °C	301A	0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature	Current, Voltage	1000 °C	-40 °C	95% max. non-condensing	0.95	± 0.5°C	± 0.5°C or 0.5% of readi ng, whichever is greater	200 ms	20 mm	6 Vdc	Full temperture Range	100 °C	5 μm	24 to 28 Vdc	N/A	1.8 m	155 g

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Applications

Cable Length

Cooling

Data Interface

Data Interface Note

Display

Emissivity, Max

Emissivity, Min

Enclosure Ratings

Field of View Note

Field of view

Housing Material

Impedance

Intrisically Safe

Laser Output

Operating Temperature, Max

Operating Temperature, Min

Optics

Output Detail

Output Signal

Process Temperature, Max

Process Temperature, Min

Relative Humidity Note

Relative Humidity, Max

Repeatability

Repeatability Note

Response Time

Sensing head Mounting

Sensor Voltage

Span, Max

Span, Min

Spectral Response, Max

Supply Voltage

Temperature Range

USB Cable Length

Weight

수량 / 장바구니

OS801A-2USB-MT2,216,390 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Industrial and Manufacturing

1 m

N/A

USB

USB 2.0 (removable USB cable and software included) using the Modbus protocol

0.1

IP65

Close-focus optics (focal spot size 7.5 mm at 500mm distance)

Close Focus

Stainless Steel

900 Ω

false

70 °C

0 °C

801A

0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature

Current, Voltage

1000 °C

250 °C

95% max. non-condensing

0.95

± 0.5°C

± 0.5°C or 0.5% of readi ng, whichever is greater

200 ms

20 mm

6 Vdc

Full temperture Range

100 °C

2.2 μm

24 to 28 Vdc

1.8 m

155 g

OS801A-2USB-HT2,266,080 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Industrial and Manufacturing

1 m

N/A

USB

USB 2.0 (removable USB cable and software included) using the Modbus protocol

0.1

IP65

Close-focus optics (focal spot size 7.5 mm at 500mm distance)

Close Focus

Stainless Steel

900 Ω

false

70 °C

0 °C

801A

0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature

Current, Voltage

2000 °C

450 °C

95% max. non-condensing

0.95

± 0.5°C

± 0.5°C or 0.5% of readi ng, whichever is greater

200 ms

20 mm

6 Vdc

Full temperture Range

100 °C

2.2 μm

24 to 28 Vdc

1.8 m

155 g

OS751A-2USB-MT1,942,960 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Industrial and Manufacturing

1 m

N/A

USB

USB 2.0 (removable USB cable and software included) using the Modbus protocol

0.1

IP65

75:1 - divergent

75:1

Stainless Steel

900 Ω

false

70 °C

0 °C

751A

0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature

Current, Voltage

1000 °C

250 °C

95% max. non-condensing

0.95

± 0.5°C

± 0.5°C or 0.5% of readi ng, whichever is greater

200 ms

20 mm

6 Vdc

Full temperture Range

100 °C

2.2 μm

24 to 28 Vdc

1.8 m

155 g

OS751A-2USB-HT2,129,650 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Industrial and Manufacturing

1 m

N/A

USB

USB 2.0 (removable USB cable and software included) using the Modbus protocol

0.1

IP65

75:1 - divergent

75:1

Stainless Steel

900 Ω

false

70 °C

0 °C

751A

0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature

Current, Voltage

2000 °C

450 °C

95% max. non-condensing

0.95

± 0.5°C

± 0.5°C or 0.5% of readi ng, whichever is greater

200 ms

20 mm

6 Vdc

Full temperture Range

100 °C

2.2 μm

24 to 28 Vdc

1.8 m

155 g

OS251A-2USB-HT1,662,230 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Industrial and Manufacturing

1 m

N/A

USB

USB 2.0 (removable USB cable and software included) using the Modbus protocol

0.1

IP65

25:1 - divergent

25:1

Stainless Steel

900 Ω

false

70 °C

0 °C

251A

1 mV/degree, 0 to 5 Vdc or 4 to 20 mA

Current

2000 °C

450 °C

95% max. non-condensing

0.95

± 0.5°C

± 0.5°C or 0.5% of readi ng, whichever is greater

200 ms

20 mm

6 Vdc

Full temperture Range

100 °C

2.2 μm

24 to 28 Vdc

1.8 m

155 g

OS251A-2USB-MT1,720,920 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Industrial and Manufacturing

1 m

N/A

USB

USB 2.0 (removable USB cable and software included) using the Modbus protocol

0.1

IP65

25:1 - divergent

25:1

Stainless Steel

900 Ω

false

70 °C

0 °C

251A

2-wire, 4-20 mA, linear with measured temperature

Current

1000 °C

250 °C

95% max. non-condensing

0.95

± 0.5°C

± 0.5°C or 0.5% of readi ng, whichever is greater

200 ms

20 mm

6 Vdc

Full temperture Range

100 °C

2.2 μm

24 to 28 Vdc

1.8 m

155 g

OS151A-2USB-LT1,704,640 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Industrial and Manufacturing

1 m

N/A

USB

USB 2.0 (removable USB cable and software included) using the Modbus protocol

0.1

IP65

15:1 - divergent(LT models only)

15:1

Stainless Steel

900 Ω

false

70 °C

0 °C

151A

1 mV/degree, 0 to 5 Vdc or 4 to 20 mA

Current

300 °C

45 °C

95% max. non-condensing

± 0.5°C

± 0.5°C or 0.5% of readi ng, whichever is greater

200 ms

20 mm

6 Vdc

Full temperture Range

100 °C

2.2 μm

24 to 28 Vdc

1.8 m

155 g

OS801A-USB1,465,150 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

General Purpose

1 m

N/A

USB

USB 2.0 (removable USB cable and software included) using the Modbus protocol

0.1

IP65

Close-focus optics (focal spot size 7.5 mm at 500mm distance)

Close Focus

Stainless Steel

900 Ω

false

70 °C

0 °C

801A

0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature

Current, Voltage

1000 °C

-40 °C

95% max. non-condensing

0.95

± 0.5°C

± 0.5°C or 0.5% of readi ng, whichever is greater

200 ms

20 mm

6 Vdc

Full temperture Range

100 °C

5 μm

24 to 28 Vdc

N/A

1.8 m

155 g

OS301A-USB1,087,740 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

General Purpose

1 m

N/A

USB

USB 2.0 (removable USB cable and software included) using the Modbus protocol

0.1

IP65

30:1 - divergent

30:1

Stainless Steel

900 Ω

false

70 °C

0 °C

301A

0 to 20mA, 4 to 20mA, 0 to 10V; 2-wire, 4-20 mA, linear with measured temperature

Current, Voltage

1000 °C

-40 °C

95% max. non-condensing

0.95

± 0.5°C

± 0.5°C or 0.5% of readi ng, whichever is greater

200 ms

20 mm

6 Vdc

Full temperture Range

100 °C

5 μm

24 to 28 Vdc

N/A

1.8 m

155 g
