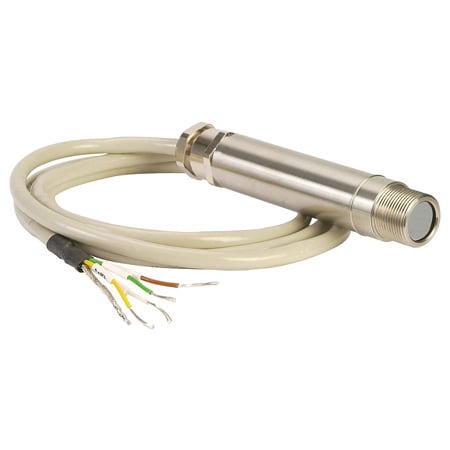

OS210-150-300-800 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 27개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Cable Length	Cable Length Note	Electrical Output	Emissivity, Max	Enclosure Ratings	Field of view	Housing Height	Housing Length	Impedance	Impedance Output	Impedance Output Note	Operating Temperature, Max	Optics	Output Signal	Process Temperature, Max	Process Temperature, Min	Relative Humidity Note	Relative Humidity, Max	Repeatability	Repeatability Note	Response Time	Response Time Note	Sensing head Mounting	Sensor Voltage	Spectral Response, Max	Spectral Response, Min	Supply Power Note	Supply Voltage	Weight	Output Detail
OS301-LT-MV가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	0 to 50 mV	0.95	IP65	30:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	301	Millivolt	100 °C	-20 °C	95% max non-condensing	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	50 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	0 to 50mV
OS211-LT-MV가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	0 to 50 mV	0.95	IP65	2:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	21	Millivolt	100 °C	-20 °C	95% non-condensing maximum	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	37 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	0 to 50mV
OS211-MT-MV552,780 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	0 to 50 mV	0.95	IP65	2:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	21	Millivolt	250 °C	0 °C	95% non-condensing maximum	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	41 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	0 to 50mV
OS801-MT-K가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type K	0.95	IP65	Close Focus	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	801	Thermocouple	250 °C	0 °C	95% max non-condensing	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	60 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type K
OS801-MT-J가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type J	0.95	IP65	Close Focus	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	801	Thermocouple	250 °C	0 °C	95% max non-condensing	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	59 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type J
OS801-LT-K가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type K	0.95	IP65	Close Focus	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	801	Thermocouple	100 °C	-20 °C	95% max non-condensing	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	57 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type K
OS801-LT-J가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type J	0.95	IP65	Close Focus	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	801	Thermocouple	100 °C	-20 °C	95% max non-condensing	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	56 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type J
OS301-HT-K872,770 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type K	0.95	IP65	30:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	301	Thermocouple	500 °C	0 °C	95% non-condensing maximum	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	46 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type K
OS301-MT-K가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type K	0.95	IP65	30:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	301	Thermocouple	250 °C	0 °C	95% max non-condensing	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	52 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type K
OS301-HT-J가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type J	0.95	IP65	30:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	301	Thermocouple	500 °C	0 °C	95% non-condensing maximum	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	44 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type J
OS211-MT-K552,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type K	0.95	IP65	2:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	21	Thermocouple	250 °C	0 °C	95% non-condensing maximum	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	39 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type J
OS151-MT-K597,690 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type K	0.95	IP65	15:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	151	Thermocouple	250 °C	0 °C	95% non-condensing maximum	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	34 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type K
OS151-LT-K가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type K	0.95	IP65	15:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	151	Thermocouple	100 °C	-20 °C	95% non-condensing maximum	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	29 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type K
OS151-MT-J가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type J	0.95	IP65	15:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	151	Thermocouple	250 °C	0 °C	95% non-condensing maximum	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	32 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type J
OS151-HT-K642,480 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type K	0.95	IP65	15:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	151	Thermocouple	500 °C	0 °C	95% non-condensing maximum	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	26 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type K
OS151-HT-J가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	Thermocouple Type J	0.95	IP65	15:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	151	Thermocouple	500 °C	0 °C	95% non-condensing maximum	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	25 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	Thermocouple Type J
OS801-MT1,042,500 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	4 to 20 mA	0.95	IP65	Close Focus	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	801	Current	250 °C	0 °C	95% max non-condensing	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	58 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	-
OS801-HT1,042,500 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	4 to 20 mA	0.95	IP65	Close Focus	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	801	Current	500 °C	0 °C	95% max non-condensing	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	54 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	-
OS801-LT1,042,500 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	4 to 20 mA	0.95	IP65	Close Focus	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	801	Current	100 °C	-20 °C	95% max non-condensing	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	55 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	-
OS301-MT836,400 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m	1 m (3.3') (included) longer lengths available to order	4 to 20 mA	0.95	IP65	30:1	18 mm	103 mm	900 Ω	56 Ω	56 Ω (voltage/thermocouple output)	70 °C	301	Current	250 °C	0 °C	95% max non-condensing	0.95	± 0.5%	± 0.5% of reading or ± 0.5ºC whichever is greater	240 ms	240 ms (90% response)	16 mm	6 Vdc	14 μm	8 μm	51 Vdc (28 Vdc maximum)	24 to 28 Vdc	95 g	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Cable Length

Cable Length Note

Electrical Output

Emissivity, Max

Enclosure Ratings

Field of view

Housing Height

Housing Length

Impedance

Impedance Output

Impedance Output Note

Operating Temperature, Max

Operating Temperature, Min

Optics

Output Signal

Process Temperature, Max

Process Temperature, Min

Relative Humidity Note

Relative Humidity, Max

Repeatability

Repeatability Note

Response Time

Response Time Note

Sensing head Mounting

Sensor Voltage

Spectral Response, Max

Spectral Response, Min

Supply Power Note

Supply Voltage

Weight

Output Detail

수량 / 장바구니

OS301-LT-MV가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

0 to 50 mV

0.95

IP65

30:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

301

Millivolt

100 °C

-20 °C

95% max non-condensing

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

50 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

0 to 50mV

OS211-LT-MV가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

0 to 50 mV

0.95

IP65

2:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

Millivolt

100 °C

-20 °C

95% non-condensing maximum

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

37 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

0 to 50mV

OS211-MT-MV552,780 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

0 to 50 mV

0.95

IP65

2:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

Millivolt

250 °C

0 °C

95% non-condensing maximum

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

41 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

0 to 50mV

OS801-MT-K가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type K

0.95

IP65

Close Focus

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

801

Thermocouple

250 °C

0 °C

95% max non-condensing

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

60 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type K

OS801-MT-J가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type J

0.95

IP65

Close Focus

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

801

Thermocouple

250 °C

0 °C

95% max non-condensing

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

59 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type J

OS801-LT-K가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type K

0.95

IP65

Close Focus

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

801

Thermocouple

100 °C

-20 °C

95% max non-condensing

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

57 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type K

OS801-LT-J가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type J

0.95

IP65

Close Focus

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

801

Thermocouple

100 °C

-20 °C

95% max non-condensing

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

56 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type J

OS301-HT-K872,770 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type K

0.95

IP65

30:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

301

Thermocouple

500 °C

0 °C

95% non-condensing maximum

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

46 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type K

OS301-MT-K가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type K

0.95

IP65

30:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

301

Thermocouple

250 °C

0 °C

95% max non-condensing

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

52 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type K

OS301-HT-J가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type J

0.95

IP65

30:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

301

Thermocouple

500 °C

0 °C

95% non-condensing maximum

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

44 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type J

OS211-MT-K552,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type K

0.95

IP65

2:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

Thermocouple

250 °C

0 °C

95% non-condensing maximum

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

39 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type J

OS151-MT-K597,690 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type K

0.95

IP65

15:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

151

Thermocouple

250 °C

0 °C

95% non-condensing maximum

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

34 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type K

OS151-LT-K가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type K

0.95

IP65

15:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

151

Thermocouple

100 °C

-20 °C

95% non-condensing maximum

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

29 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type K

OS151-MT-J가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type J

0.95

IP65

15:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

151

Thermocouple

250 °C

0 °C

95% non-condensing maximum

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

32 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type J

OS151-HT-K642,480 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type K

0.95

IP65

15:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

151

Thermocouple

500 °C

0 °C

95% non-condensing maximum

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

26 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type K

OS151-HT-J가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

Thermocouple Type J

0.95

IP65

15:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

151

Thermocouple

500 °C

0 °C

95% non-condensing maximum

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

25 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

Thermocouple Type J

OS801-MT1,042,500 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

4 to 20 mA

0.95

IP65

Close Focus

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

801

Current

250 °C

0 °C

95% max non-condensing

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

58 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

OS801-HT1,042,500 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

4 to 20 mA

0.95

IP65

Close Focus

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

801

Current

500 °C

0 °C

95% max non-condensing

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

54 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

OS801-LT1,042,500 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

4 to 20 mA

0.95

IP65

Close Focus

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

801

Current

100 °C

-20 °C

95% max non-condensing

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

55 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g

OS301-MT836,400 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m

1 m (3.3') (included) longer lengths available to order

4 to 20 mA

0.95

IP65

30:1

18 mm

103 mm

900 Ω

56 Ω

56 Ω (voltage/thermocouple output)

70 °C

0 °C

301

Current

250 °C

0 °C

95% max non-condensing

0.95

± 0.5%

± 0.5% of reading or ± 0.5ºC whichever is greater

240 ms

240 ms (90% response)

16 mm

6 Vdc

14 μm

8 μm

51 Vdc (28 Vdc maximum)

24 to 28 Vdc

95 g
