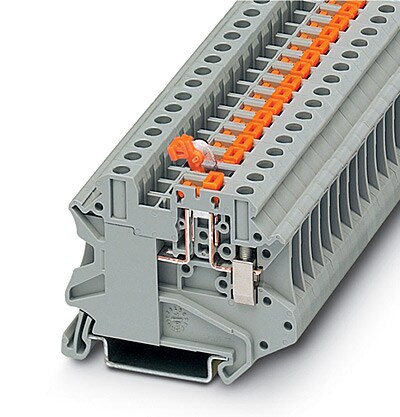

XBUT4-XBUK4-ScrwConn

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 3개의 상품

제품 번호 / 가격	Brand	Accessory Type	Additional Features 1	Color Options	Compatible Wiring Note	Contamination Class	Cover Width	Cross-Section Area	Insulation Strip Length	Load Current, Max	Rated Surge Voltage	Terminal Width	Thread Type	Tightening Torque	V/A/AWG Compliance	Voltage Rating	Wire Gauge	Wire Size, Max
XBUT4TG7,900 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Disconnect	-	Yellow	Stranded with Ferrule=0.25 - 4 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 2.5 mm²;Stranded with Ferrule with Plastic Sleeve=0.25 to 4 mm²;Solid=0.14 - 1.5 mm²	3	2.2 mm	6 mm²	10 mm	16 A	6 kV	6.2 mm	Metric	5.3 to 7.1 Nm	Voltage Rating (UL-cUL Ratings for Disconnect)=600 V;Voltage Rating Connection Data=500 V;Amperage, Max (UL-cUL Ratings for Disconnect)=16 A;Wire Gauge Connection Data=26 to 10 AWG;Wire Gauge (UL-cUL Ratings for Disconnect)=26 to 10 AWG;Amperage, Max (Connection Data) = 16 A	N/A	N/A	4 mm²
XBUKK4DIO18,440 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	2 level TB with diode	Wide Knife Disconnect Terminal Blocks	Yellow	Stranded with Ferrule=0.25 - 4 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 2.5 mm²;Stranded with Ferrule with Plastic Sleeve=0.25 to 4 mm²;Solid=0.14 - 1.5 mm²	3	2.2 mm	4 mm²	9 mm	32 A	6 kV	6.2 mm	Metric	5.3 to 7.1 Nm	Voltage Rating (UL-cUL Ratings for Disconnect)=600 V;Voltage Rating Connection Data=500 V;Amperage, Max (UL-cUL Ratings for Disconnect)=16 A;Wire Gauge Connection Data=26 to 10 AWG;Wire Gauge (UL-cUL Ratings for Disconnect)=26 to 10 AWG;Amperage, Max (Connection Data) = 16 A	N/A	N/A	4 mm²
XBUT4MT10,680 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Knife Disconnect	Wide Disconnect Terminal Blocks	Yellow	Stranded with Ferrule=0.25 - 4 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 2.5 mm²;Stranded with Ferrule with Plastic Sleeve=0.25 to 4 mm²;Solid=0.14 - 1.5 mm²	3	2.2 mm	6 mm²	9 mm	16 A	6 kV	6.2 mm	Metric	5.3 to 7.1 Nm	Voltage Rating (UL-cUL Ratings for Disconnect)=600 V;Voltage Rating Connection Data=500 V;Amperage, Max (UL-cUL Ratings for Disconnect)=16 A;Wire Gauge Connection Data=26 to 10 AWG;Wire Gauge (UL-cUL Ratings for Disconnect)=26 to 10 AWG;Amperage, Max (Connection Data) = 16 A	N/A	N/A	4 mm²

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accessory Type

Additional Features 1

Amperage, Max

Color Options

Compatible Wiring Note

Contamination Class

Cover Width

Cross-Section Area

Insulation Strip Length

Load Current, Max

Rated Surge Voltage

Terminal Width

Thread Type

Tightening Torque

V/A/AWG Compliance

Voltage Rating

Wire Gauge

Wire Size, Max

수량 / 장바구니

XBUT4TG7,900 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Disconnect

0 A

Yellow

Stranded with Ferrule=0.25 - 4 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 2.5 mm²;Stranded with Ferrule with Plastic Sleeve=0.25 to 4 mm²;Solid=0.14 - 1.5 mm²

2.2 mm

6 mm²

10 mm

16 A

6 kV

6.2 mm

Metric

5.3 to 7.1 Nm

Voltage Rating (UL-cUL Ratings for Disconnect)=600 V;Voltage Rating Connection Data=500 V;Amperage, Max (UL-cUL Ratings for Disconnect)=16 A;Wire Gauge Connection Data=26 to 10 AWG;Wire Gauge (UL-cUL Ratings for Disconnect)=26 to 10 AWG;Amperage, Max (Connection Data) = 16 A

N/A

4 mm²

XBUKK4DIO18,440 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

2 level TB with diode

Wide Knife Disconnect Terminal Blocks

0 A

Yellow

Stranded with Ferrule=0.25 - 4 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 2.5 mm²;Stranded with Ferrule with Plastic Sleeve=0.25 to 4 mm²;Solid=0.14 - 1.5 mm²

2.2 mm

4 mm²

9 mm

32 A

6 kV

6.2 mm

Metric

5.3 to 7.1 Nm

N/A

4 mm²

XBUT4MT10,680 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Knife Disconnect

Wide Disconnect Terminal Blocks

0 A

Yellow

Stranded with Ferrule=0.25 - 4 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 2.5 mm²;Stranded with Ferrule with Plastic Sleeve=0.25 to 4 mm²;Solid=0.14 - 1.5 mm²

2.2 mm

6 mm²

9 mm

16 A

6 kV

6.2 mm

Metric

5.3 to 7.1 Nm

N/A

4 mm²
