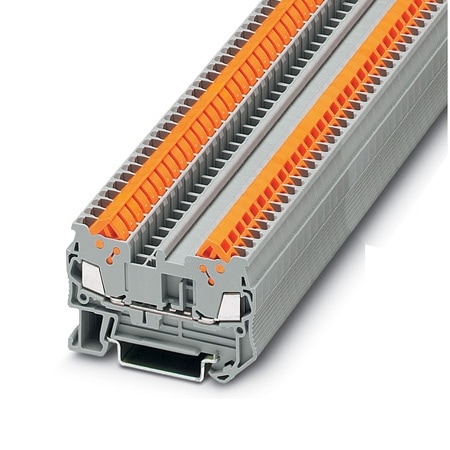

절연 변위 연결 터미널 블록
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | Additional Features 1 | Amperage, Max | Color Options | Compatible Wiring Note | Contamination Class | Cover Width | Cross-Section Area | Electrical Connection | Insulation | Insulation Strip Length | Load Current, Max | Number of Terminals | Rated Surge Voltage | Terminal Width | Thread Type | Tightening Torque | V/A/AWG Compliance | Voltage Rating | Wire Gauge | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XBQT15D22BU5,840 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 4 wire multi-conductor IDC TB | 0 A | Blue | Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 - 16 AWG;Stranded with Ferrule with Plastic Sleeve=0.25 to 2.5 mm²;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm² | 3 | 2.2 mm | 1.5 mm² | Insulation Displacement | PVC/PE | 9 mm | 17.5 A | 4 | 8 kV | 5.2 mm | Metric | 0.6 to 0.8 Nm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating Connection Data=800 V;Amperage, Max (UL-cUL Ratings)=0.4167 A;Wire Gauge (UL-cUL Ratings)=24 to 16 AWG;Wire Gauge Connection Data=24 to 16 AWG;Amperage, Max (Connection Data) = 17.5 A | N/A | 24 to 16 AWG | |
XBQT15D225,840 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 4 wire multi-conductor IDC TB | 0 A | Gray | Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 - 16 AWG;Stranded with Ferrule with Plastic Sleeve=0.25 to 2.5 mm²;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm² | 3 | 2.2 mm | 1.5 mm² | Insulation Displacement | PVC/PE | 9 mm | 17.5 A | 4 | 8 kV | 5.2 mm | Metric | 0.6 to 0.8 Nm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating Connection Data=800 V;Amperage, Max (UL-cUL Ratings)=0.4167 A;Wire Gauge (UL-cUL Ratings)=24 to 16 AWG;Wire Gauge Connection Data=24 to 16 AWG;Amperage, Max (Connection Data) = 17.5 A | N/A | 24 to 16 AWG | |
XBQT15BU2,970 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | IDC single level TB | 0 A | Blue | Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 - 16 AWG;Stranded with Ferrule with Plastic Sleeve=0.25 to 2.5 mm²;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm² | 3 | 2.2 mm | 1.5 mm² | Insulation Displacement | PVC/PE | 9 mm | 17.5 A | 2 | 8 kV | 5.2 mm | Metric | 0.6 to 0.8 Nm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating Connection Data=800 V;Amperage, Max (UL-cUL Ratings)=0.4167 A;Wire Gauge (UL-cUL Ratings)=24 to 16 AWG;Wire Gauge Connection Data=24 to 16 AWG;Amperage, Max (Connection Data) = 17.5 A | N/A | 24 to 16 AWG | |
XBQT25BU3,140 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | IDC single level TB | 0 A | Blue | Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 - 16 AWG;Stranded with Ferrule with Plastic Sleeve=0.25 to 2.5 mm²;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm² | 3 | 2.2 mm | 2.5 mm² | Insulation Displacement | PVC/PE | 9 mm | 24 A | 2 | 8 kV | 6.2 mm | Metric | 0.6 to 0.8 Nm | Voltage Rating (UL-cUL IDC Connection)=600 V;Voltage Rating (UL-cUL Screw Connection)=600 V;Voltage Rating (IEC IDC Connection)=800 V;Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating Screw Connection=800 V;Voltage Rating Connection Data=800 V;Amperage, Max (UL-cUL Ratings)=215 A;Amperage, Max (IEC IDC Connection)=24 A;Amperage, Max (UL-cUL Screw Connection)=15 A;Amperage, Max (UL-cUL IDC Connection)=15 A;Wire Gauge (UL-cUL Ratings)=20 to 14 AWG;Wire Gauge Connection Data=20 to 14 AWG;Wire Gauge Screw Connection=26 to 10 AWG;Wire Gauge (IEC IDC Connection)=20 to 14 AWG;Wire Gauge (UL-cUL Screw Connection)=26 to 10 AWG;Wire Gauge (UL-cUL IDC Connection)=14 to 24 AWG;Amperage, Max (Connection Data) = 24 A;Amperage, Max Screw (Connection)=24 A | N/A | 20 to 14 AWG | |
XBQU253,250 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | IDC hybrid TB | 0 A | Gray | Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 - 16 AWG;Stranded with Ferrule with Plastic Sleeve=0.25 to 2.5 mm²;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm² | 3 | 2.2 mm | 2.5 mm² | Hybrid Terminal Block | PVC/PE | 9 mm | 24 A | 2 | 8 kV | 6.2 mm | Metric | 0.6 to 0.8 Nm | Voltage Rating (UL-cUL IDC Connection)=600 V;Voltage Rating (UL-cUL Screw Connection)=600 V;Voltage Rating (IEC IDC Connection)=800 V;Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating Screw Connection=800 V;Voltage Rating Connection Data=800 V;Amperage, Max (UL-cUL Ratings)=215 A;Amperage, Max (IEC IDC Connection)=24 A;Amperage, Max (UL-cUL Screw Connection)=15 A;Amperage, Max (UL-cUL IDC Connection)=15 A;Wire Gauge (UL-cUL Ratings)=20 to 14 AWG;Wire Gauge Connection Data=20 to 14 AWG;Wire Gauge Screw Connection=26 to 10 AWG;Wire Gauge (IEC IDC Connection)=20 to 14 AWG;Wire Gauge (UL-cUL Screw Connection)=26 to 10 AWG;Wire Gauge (UL-cUL IDC Connection)=14 to 24 AWG;Amperage, Max (Connection Data) = 17.5 A;Amperage, Max (Connection Data) = 24 A;Amperage, Max Screw (Connection)=25 A | N/A | 20 to 14 AWG | |
XBQU153,140 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | IDC hybrid TB | 0 A | Gray | Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 - 16 AWG;Stranded with Ferrule with Plastic Sleeve=0.25 to 2.5 mm²;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm² | 3 | 2.2 mm | 1.5 mm² | Hybrid Terminal Block | PVC/PE | 9 mm | 17.5 A | 2 | 8 kV | 5.2 mm | Metric | 0.6 to 0.8 Nm | Voltage Rating (UL-cUL IDC Connection)=600 V;Voltage Rating (UL-cUL Screw Connection)=600 V;Voltage Rating (IEC IDC Connection)=800 V;Voltage Rating (IEC Screw Connection)=800 V;Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating Connection Data=800 V;Amperage, Max (UL-cUL Ratings)=0.4167 A;Amperage, Max (IEC Screw Connection)=17.5 A;Amperage, Max (IEC IDC Connection)=17.5 A;Amperage, Max (UL-cUL Screw Connection)=0.4167 A;Amperage, Max (UL-cUL IDC Connection)=0.4167 A;Wire Gauge (UL-cUL Ratings)=24 to 16 AWG;Wire Gauge Connection Data=24 to 16 AWG;Wire Gauge (IEC Screw Connection)=26 to 12 AWG;Wire Gauge (IEC IDC Connection)=24 to 12 AWG;Wire Gauge (UL-cUL Screw Connection)=26 to 10 AWG;Wire Gauge (UL-cUL IDC Connection)=16 to 24 AWG;Amperage, Max (Connection Data) = 17.5 A | N/A | 24 to 16 AWG | |
XBQT152,960 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | IDC single level TB | 0 A | Gray | Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 - 16 AWG;Stranded with Ferrule with Plastic Sleeve=0.25 to 2.5 mm²;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm² | 3 | 2.2 mm | 1.5 mm² | Insulation Displacement | PVC/PE | 9 mm | 17.5 A | 2 | 8 kV | 5.2 mm | Metric | 0.6 to 0.8 Nm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating Connection Data=800 V;Amperage, Max (EN 50 019)=16 A;Amperage, Max (UL-cUL Ratings)=0.4167 A;Wire Gauge (EN 50 019)=24 to 16 AWG;Wire Gauge (UL-cUL Ratings)=24 to 16 AWG;Wire Gauge Connection Data=24 to 16 AWG;Amperage, Max (Connection Data) = 17.5 A | N/A | 24 to 16 AWG | |
XBQT253,140 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | IDC single level TB | 0 A | Gray | Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 - 16 AWG;Stranded with Ferrule with Plastic Sleeve=0.25 to 2.5 mm²;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm² | 3 | 2.2 mm | 2.5 mm² | Insulation Displacement | PVC/PE | 9 mm | 24 A | 2 | 8 kV | 6.2 mm | Metric | 0.6 to 0.8 Nm | Voltage Rating (UL-cUL IDC Connection)=600 V;Voltage Rating (UL-cUL Screw Connection)=600 V;Voltage Rating (IEC IDC Connection)=800 V;Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating Screw Connection=800 V;Voltage Rating Connection Data=800 V;Amperage, Max (UL-cUL Ratings)=215 A;Amperage, Max (IEC IDC Connection)=24 A;Amperage, Max (UL-cUL Screw Connection)=15 A;Amperage, Max (UL-cUL IDC Connection)=15 A;Wire Gauge (UL-cUL Ratings)=20 to 14 AWG;Wire Gauge Connection Data=20 to 14 AWG;Wire Gauge Screw Connection=26 to 10 AWG;Wire Gauge (IEC IDC Connection)=20 to 14 AWG;Wire Gauge (UL-cUL Screw Connection)=26 to 10 AWG;Wire Gauge (UL-cUL IDC Connection)=14 to 24 AWG;Amperage, Max (Connection Data) = 24 A;Amperage, Max Screw (Connection)=24 A | N/A | 20 to 14 AWG |
