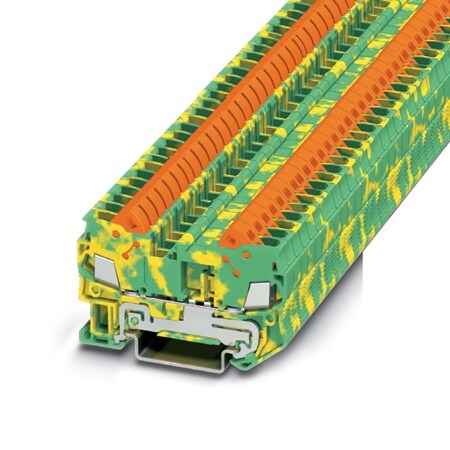

XBQT | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 4개의 상품

제품 번호 / 가격	Brand	Accessory Type	Additional Features 1	Color Options	Compatible Wiring Note	Contamination Class	Cover Width	Electrical Connection	Insulation	Insulation Strip Length	Materials	Number of Terminals	Rated Surge Voltage	Terminal Width	Thread Type	Tightening Torque	V/A/AWG Compliance	Voltage Rating	Wire Gauge	Wire Size, Max
XBQT15D22PE14,200 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Ground Block	4 wire multi-conductor IDC ground TB	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 to 16 AWG;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm²	3	2.2 mm	Insulation Displacement	PVC/PE	9 mm	Copper Allloys/Polyamide 6.6 Housing	4	8 kV	5.2 mm	Metric	0.6 to 0.8 Nm	Wire Gauge (EN 50 019)=24 to 16 AWG;Wire Gauge (UL-cUL Ratings)=24 to 16 AWG;Wire Gauge Connection Data=24 to 16 AWG	N/A	24 to 16 AWG	1.5 mm²
XBQU25PE11,550 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Ground Block	IDC ground hybrid TB	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 to 16 AWG;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm²	3	2.2 mm	Hybrid Terminal Block	PVC/PE	9 mm	Copper Allloys/Polyamide 6.6 Housing	2	8 kV	6.2 mm	Metric	0.6 to 0.8 Nm	Wire Gauge (IEC Screw Connection)=26 to 10 AWG;Wire Gauge (IEC IDC Connection)=20 to 14 AWG;Wire Gauge (UL-cUL Screw Connection)=26 to 10 AWG;Wire Gauge (UL-cUL IDC Connection)=14 to 24 AWG	N/A	26 to 10 AWG	4 mm²
XBQU15PE10,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Ground Block	IDC ground hybrid TB	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 to 16 AWG;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm²	3	2.2 mm	Hybrid Terminal Block	PVC/PE	9 mm	Copper Allloys/Polyamide 6.6 Housing	2	8 kV	5.2 mm	Metric	0.6 to 0.8 Nm	Wire Gauge (IEC Screw Connection)=26 to 12 AWG;Wire Gauge (IEC IDC Connection)=24 to 12 AWG;Wire Gauge (UL-cUL Screw Connection)=26 to 10 AWG;Wire Gauge (UL-cUL IDC Connection)=16 to 24 AWG	N/A	26 to 12 AWG	1.5 mm²
XBQT25PE10,030 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Ground Block	IDC ground TB	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 to 16 AWG;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm²	3	2.2 mm	Insulation Displacement	PVC/PE	9 mm	Copper Allloys/Polyamide 6.6 Housing	2	8 kV	6.2 mm	Metric	0.6 to 0.8 Nm	Wire Gauge (UL-cUL Ratings)=20 to 14 AWG;Wire Gauge Connection Data=20 to 14 AWG	N/A	26 to 10 AWG	2.5 mm²

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accessory Type

Additional Features 1

Amperage, Max

Color Options

Compatible Wiring Note

Contamination Class

Cover Width

Electrical Connection

Insulation

Insulation Strip Length

Materials

Number of Terminals

Rated Surge Voltage

Terminal Width

Thread Type

Tightening Torque

V/A/AWG Compliance

Voltage Rating

Wire Gauge

Wire Size, Max

수량 / 장바구니

XBQT15D22PE14,200 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Ground Block

4 wire multi-conductor IDC ground TB

0 A

Green/Yellow

Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 to 16 AWG;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm²

2.2 mm

Insulation Displacement

PVC/PE

9 mm

Copper Allloys/Polyamide 6.6 Housing

8 kV

5.2 mm

Metric

0.6 to 0.8 Nm

Wire Gauge (EN 50 019)=24 to 16 AWG;Wire Gauge (UL-cUL Ratings)=24 to 16 AWG;Wire Gauge Connection Data=24 to 16 AWG

N/A

24 to 16 AWG

1.5 mm²

XBQU25PE11,550 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Ground Block

IDC ground hybrid TB

0 A

Green/Yellow

2.2 mm

Hybrid Terminal Block

PVC/PE

9 mm

Copper Allloys/Polyamide 6.6 Housing

8 kV

6.2 mm

Metric

0.6 to 0.8 Nm

Wire Gauge (IEC Screw Connection)=26 to 10 AWG;Wire Gauge (IEC IDC Connection)=20 to 14 AWG;Wire Gauge (UL-cUL Screw Connection)=26 to 10 AWG;Wire Gauge (UL-cUL IDC Connection)=14 to 24 AWG

N/A

26 to 10 AWG

4 mm²

XBQU15PE10,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Ground Block

IDC ground hybrid TB

0 A

Green/Yellow

2.2 mm

Hybrid Terminal Block

PVC/PE

9 mm

Copper Allloys/Polyamide 6.6 Housing

8 kV

5.2 mm

Metric

0.6 to 0.8 Nm

Wire Gauge (IEC Screw Connection)=26 to 12 AWG;Wire Gauge (IEC IDC Connection)=24 to 12 AWG;Wire Gauge (UL-cUL Screw Connection)=26 to 10 AWG;Wire Gauge (UL-cUL IDC Connection)=16 to 24 AWG

N/A

26 to 12 AWG

1.5 mm²

XBQT25PE10,030 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Ground Block

IDC ground TB

0 A

Green/Yellow

2.2 mm

Insulation Displacement

PVC/PE

9 mm

Copper Allloys/Polyamide 6.6 Housing

8 kV

6.2 mm

Metric

0.6 to 0.8 Nm

Wire Gauge (UL-cUL Ratings)=20 to 14 AWG;Wire Gauge Connection Data=20 to 14 AWG

N/A

26 to 10 AWG

2.5 mm²
