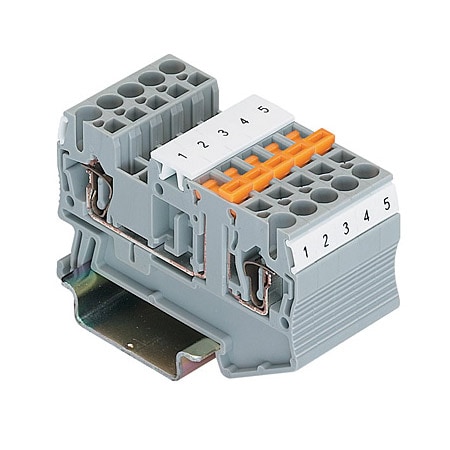

스프링 케이지 단자대 퓨즈 홀더
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 22개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Additional Features 1 | Amperage, Max | Circuit Protection | Color Options | Compatible Wiring Note | Contamination Class | Cover Width | Cross-Section Area | Insulation Strip Length | Load Current, Max | Number of Terminals | Rated Surge Voltage | Terminal Width | V/A/AWG Compliance | Voltage Rating | Wire Gauge | Wire Size, Max | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XBPT25D22BU4,720 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip multi-conductor TB | 0 A | None | Blue | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 4 mm² | 10 mm | 31 A | 4 | 8 kV | 5.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=32 A;Amperage, Max (EN 50 019)=25/21 A;Amperage, Max (UL-cUL Ratings)=20 A;Wire Gauge (IEC 60 947-7-1)=28 to 12 AWG;Wire Gauge (EN 50 019)=24 to 12 AWG;Wire Gauge (UL-cUL Ratings)=26 to 12 AWG | N/A | 28 to 12 AWG | 2.5 mm² | |
XBPT4D22BU5,430 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip multi-conductor TB | 0 A | None | Blue | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 6 mm² | 10 mm | 40 A | 4 | 8 kV | 6.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=40 A;Amperage, Max (EN 50 019)=34/30 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=28 to 10 AWG;Wire Gauge (EN 50 019)=24 to 10 AWG;Wire Gauge (UL-cUL Ratings)=20 to 10 AWG | N/A | 28 to 10 AWG | 4 mm² | |
XBPT4FSI16,590 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip fuse TB for XBAT mini circuit breakers | 0 A | XBAT mini circuit breaker | Gray | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 6 mm² | 10 mm | 40 A | 2 | 8 kV | 6.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=40 A;Amperage, Max (EN 50 019)=34/30 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=28 to 10 AWG;Wire Gauge (EN 50 019)=24 to 10 AWG;Wire Gauge (UL-cUL Ratings)=20 to 10 AWG | N/A | 28 to 10 AWG | 4 mm² | |
XBPT4FBN20,190 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip fuse TB for 6.3 x 32 mm fuse | 0 A | 6.3 x 32 mm fuse | Gray | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 6 mm² | 10 mm | 40 A | 2 | 8 kV | 6.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=40 A;Amperage, Max (EN 50 019)=34/30 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=28 to 10 AWG;Wire Gauge (EN 50 019)=24 to 10 AWG;Wire Gauge (UL-cUL Ratings)=20 to 10 AWG | N/A | 28 to 10 AWG | 4 mm² | |
XBPT4FBE16,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip fuse TB for 5 x 20 mm fuse | 0 A | 5 x 20 mm fuse | Gray | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 6 mm² | 10 mm | 40 A | 2 | 8 kV | 6.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=40 A;Amperage, Max (EN 50 019)=34/30 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=28 to 10 AWG;Wire Gauge (EN 50 019)=24 to 10 AWG;Wire Gauge (UL-cUL Ratings)=20 to 10 AWG | N/A | 28 to 10 AWG | 4 mm² | |
XBPT4D225,430 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip multi-conductor TB | 0 A | None | Gray | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 6 mm² | 10 mm | 40 A | 4 | 8 kV | 6.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=40 A;Amperage, Max (EN 50 019)=34/30 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=28 to 10 AWG;Wire Gauge (EN 50 019)=24 to 10 AWG;Wire Gauge (UL-cUL Ratings)=20 to 10 AWG | N/A | 28 to 10 AWG | 4 mm² | |
XBPT35BU49,070 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Blue | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | - | 35 mm² | 25 mm | 125 A | 2 | 8 kV | 16 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=750 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=125 A;Amperage, Max (EN 50 019)=108 A;Amperage, Max (UL-cUL Ratings)=115 A;Wire Gauge (IEC 60 947-7-1)=14 to 2 AWG;Wire Gauge (EN 50 019)=14 to 2 AWG;Wire Gauge (UL-cUL Ratings)=14 to 2 AWG | N/A | 14 to 2 AWG | 35 mm² | |
XBPT25WH3,120 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | White | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 4 mm² | 10 mm | 31 A | 2 | 8 kV | 5.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=32 A;Amperage, Max (EN 50 019)=25/21 A;Amperage, Max (UL-cUL Ratings)=20 A;Wire Gauge (IEC 60 947-7-1)=28 to 12 AWG;Wire Gauge (EN 50 019)=24 to 12 AWG;Wire Gauge (UL-cUL Ratings)=26 to 12 AWG | N/A | 28 to 12 AWG | 2.5 mm² | |
XBPT25RD3,120 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Red | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 4 mm² | 10 mm | 31 A | 2 | 8 kV | 5.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=32 A;Amperage, Max (EN 50 019)=25/21 A;Amperage, Max (UL-cUL Ratings)=20 A;Wire Gauge (IEC 60 947-7-1)=28 to 12 AWG;Wire Gauge (EN 50 019)=24 to 12 AWG;Wire Gauge (UL-cUL Ratings)=26 to 12 AWG | N/A | 28 to 12 AWG | 2.5 mm² | |
XBPT25BK3,120 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Black | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 4 mm² | 10 mm | 31 A | 2 | 8 kV | 5.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=32 A;Amperage, Max (EN 50 019)=25/21 A;Amperage, Max (UL-cUL Ratings)=20 A;Wire Gauge (IEC 60 947-7-1)=28 to 12 AWG;Wire Gauge (EN 50 019)=24 to 12 AWG;Wire Gauge (UL-cUL Ratings)=26 to 12 AWG | N/A | 28 to 12 AWG | 2.5 mm² | |
XBPT25BU2,950 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Blue | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 4 mm² | 10 mm | 31 A | 2 | 8 kV | 5.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=32 A;Amperage, Max (EN 50 019)=25/21 A;Amperage, Max (UL-cUL Ratings)=20 A;Wire Gauge (IEC 60 947-7-1)=28 to 12 AWG;Wire Gauge (EN 50 019)=24 to 12 AWG;Wire Gauge (UL-cUL Ratings)=26 to 12 AWG | N/A | 28 to 12 AWG | 2.5 mm² | |
XBPT10BU6,440 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Blue | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 16 mm² | 18 mm | 65 A | 2 | 8 kV | 10.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=65 A;Amperage, Max (EN 50 019)=50/63 A;Amperage, Max (UL-cUL Ratings)=65 A;Wire Gauge (IEC 60 947-7-1)=24 to 6 AWG;Wire Gauge (EN 50 019)=16 to 6 AWG;Wire Gauge (UL-cUL Ratings)=16 to 6 AWG | N/A | 24 to 6 AWG | 10 mm² | |
XBPT16BU7,740 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Blue | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 25 mm² | 18 mm | 90 A | 2 | 8 kV | 12 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=90 A;Amperage, Max (EN 50 019)=65/82 A;Amperage, Max (UL-cUL Ratings)=50 A;Wire Gauge (IEC 60 947-7-1)=24 to 4 AWG;Wire Gauge (EN 50 019)=16 to 6 AWG;Wire Gauge (UL-cUL Ratings)=16 to 4 AWG | N/A | 24 to 4 AWG | 16 mm² | |
XBPT6BU5,010 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Blue | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 10 mm² | 12 mm | 52 A | 2 | 8 kV | 8.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=52 A;Amperage, Max (EN 50 019)=45/36 A;Amperage, Max (UL-cUL Ratings)=50 A;Wire Gauge (IEC 60 947-7-1)=24 to 8 AWG;Wire Gauge (EN 50 019)=20 to 8 AWG;Wire Gauge (UL-cUL Ratings)=24 to 8 AWG | N/A | 24 to 8 AWG | 6 mm² | |
XBPT4BU3,120 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Blue | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 6 mm² | 10 mm | 40 A | 2 | 8 kV | 6.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=40 A;Amperage, Max (EN 50 019)=34/30 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=28 to 10 AWG;Wire Gauge (EN 50 019)=24 to 10 AWG;Wire Gauge (UL-cUL Ratings)=20 to 10 AWG | N/A | 28 to 10 AWG | 4 mm² | |
XBPT3549,070 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Gray | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | - | 35 mm² | 30 mm | 125 A | 2 | 8 kV | 16 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=750 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=125 A;Amperage, Max (EN 50 019)=108 A;Amperage, Max (UL-cUL Ratings)=115 A;Wire Gauge (IEC 60 947-7-1)=14 to 2 AWG;Wire Gauge (EN 50 019)=14 to 2 AWG;Wire Gauge (UL-cUL Ratings)=14 to 2 AWG | N/A | 14 to 2 AWG | 35 mm² | |
XBPT252,950 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Gray | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 4 mm² | 10 mm | 31 A | 2 | 8 kV | 5.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=32 A;Amperage, Max (EN 50 019)=25/21 A;Amperage, Max (UL-cUL Ratings)=20 A;Wire Gauge (IEC 60 947-7-1)=28 to 12 AWG;Wire Gauge (EN 50 019)=24 to 12 AWG;Wire Gauge (UL-cUL Ratings)=26 to 12 AWG | N/A | 28 to 12 AWG | 2.5 mm² | |
XBPT167,740 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Gray | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 25 mm² | 18 mm | 90 A | 2 | 8 kV | 12 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=90 A;Amperage, Max (EN 50 019)=65/82 A;Amperage, Max (UL-cUL Ratings)=50 A;Wire Gauge (IEC 60 947-7-1)=24 to 4 AWG;Wire Gauge (EN 50 019)=16 to 6 AWG;Wire Gauge (UL-cUL Ratings)=16 to 4 AWG | N/A | 24 to 4 AWG | 16 mm² | |
XBPT106,440 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Gray | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 16 mm² | 18 mm | 65 A | 2 | 8 kV | 10.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=65 A;Amperage, Max (EN 50 019)=50/63 A;Amperage, Max (UL-cUL Ratings)=65 A;Wire Gauge (IEC 60 947-7-1)=24 to 6 AWG;Wire Gauge (EN 50 019)=16 to 6 AWG;Wire Gauge (UL-cUL Ratings)=16 to 6 AWG | N/A | 24 to 6 AWG | 10 mm² | |
XBPT65,010 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | spring clip TB | 0 A | None | Gray | Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 mm² | 3 | 2.2 mm | 10 mm² | 12 mm | 52 A | 2 | 8 kV | 8.2 mm | Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=52 A;Amperage, Max (EN 50 019)=45/36 A;Amperage, Max (UL-cUL Ratings)=50 A;Wire Gauge (IEC 60 947-7-1)=24 to 8 AWG;Wire Gauge (EN 50 019)=20 to 8 AWG;Wire Gauge (UL-cUL Ratings)=24 to 8 AWG | N/A | 24 to 8 AWG | 6 mm² |
