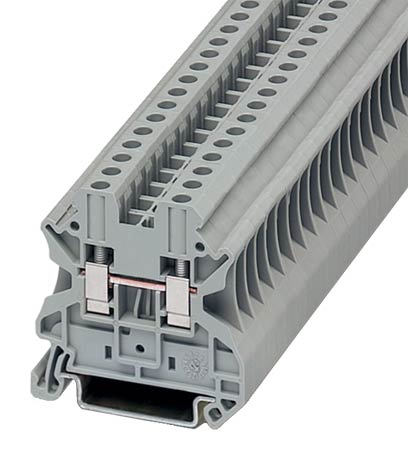

XBUT4-Series | Britestone

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

로딩 중...

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 8개의 상품

제품 번호 / 가격	Brand	Amperage, Max	Color Options	Compatible Wiring Note	Contamination Class	Cross-Section Area	Insulation Strip Length	Load Current, Max	Rated Surge Voltage	Terminal Width	Thread Type	Tightening Torque	V/A/AWG Compliance	Voltage Rating	Wire Gauge	Wire Size, Max	수량 / 장바구니
XBUT4YE2,970 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0 A	Yellow	Stranded Ferrule with Plastic Sleeve=1.5 - 35 mm²;Stranded with Ferrule=1.5 - 35 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 10 mm²;Solid=1.5 - 16 mm²	3	50 mm²	9 mm	150 A	8 kV	16 mm	Metric	28.3 to 32.7 Nm	Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating Connection Data=500 V;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (UL-cUL Ratings)=26 to 10 AWG;Wire Gauge Connection Data=26 to 10 AWG;Amperage, Max (Connection Data) = 16 A	N/A	N/A	4 mm²
XBUT4RD2,970 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0 A	Red	Stranded Ferrule with Plastic Sleeve=1.5 - 35 mm²;Stranded with Ferrule=1.5 - 35 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 10 mm²;Solid=1.5 - 16 mm²	3	50 mm²	9 mm	150 A	8 kV	16 mm	Metric	28.3 to 32.7 Nm	Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=750 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=41 A;Amperage, Max (EN 50 019)=30/38 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=26 to 10 AWG;Wire Gauge (EN 50 019)=26 to 10 AWG;Wire Gauge (UL-cUL Ratings)=26 to 10 AWG	N/A	N/A	4 mm²
XBUT4WH2,970 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0 A	White	Stranded Ferrule with Plastic Sleeve=1.5 - 35 mm²;Stranded with Ferrule=1.5 - 35 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 10 mm²;Solid=1.5 - 16 mm²	3	50 mm²	9 mm	150 A	8 kV	16 mm	Metric	28.3 to 32.7 Nm	Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=750 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=41 A;Amperage, Max (EN 50 019)=30/38 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=26 to 10 AWG;Wire Gauge (EN 50 019)=26 to 10 AWG;Wire Gauge (UL-cUL Ratings)=26 to 10 AWG	N/A	N/A	4 mm²
XBUT4OR2,970 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0 A	Orange	Stranded Ferrule with Plastic Sleeve=1.5 - 35 mm²;Stranded with Ferrule=1.5 - 35 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 10 mm²;Solid=1.5 - 16 mm²	3	50 mm²	9 mm	150 A	8 kV	16 mm	Metric	28.3 to 32.7 Nm	Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=750 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=41 A;Amperage, Max (EN 50 019)=30/38 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=26 to 10 AWG;Wire Gauge (EN 50 019)=26 to 10 AWG;Wire Gauge (UL-cUL Ratings)=26 to 10 AWG	N/A	N/A	4 mm²
XBUT4GN2,970 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0 A	Green	Stranded Ferrule with Plastic Sleeve=1.5 - 35 mm²;Stranded with Ferrule=1.5 - 35 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 10 mm²;Solid=1.5 - 16 mm²	3	50 mm²	9 mm	150 A	8 kV	16 mm	Metric	28.3 to 32.7 Nm	Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=750 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=41 A;Amperage, Max (EN 50 019)=30/38 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=26 to 10 AWG;Wire Gauge (EN 50 019)=26 to 10 AWG;Wire Gauge (UL-cUL Ratings)=26 to 10 AWG	N/A	N/A	4 mm²
XBUT4BU2,970 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0 A	Blue	Stranded Ferrule with Plastic Sleeve=1.5 - 35 mm²;Stranded with Ferrule=1.5 - 35 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 10 mm²;Solid=1.5 - 16 mm²	3	50 mm²	9 mm	150 A	8 kV	16 mm	Metric	28.3 to 32.7 Nm	Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=750 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=41 A;Amperage, Max (EN 50 019)=30/38 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=26 to 10 AWG;Wire Gauge (EN 50 019)=26 to 10 AWG;Wire Gauge (UL-cUL Ratings)=26 to 10 AWG	N/A	N/A	4 mm²
XBUT44,240 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0 A	Gray	Stranded Ferrule with Plastic Sleeve=1.5 - 35 mm²;Stranded with Ferrule=1.5 - 35 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 10 mm²;Solid=1.5 - 16 mm²	3	50 mm²	9 mm	150 A	8 kV	16 mm	Metric	28.3 to 32.7 Nm	Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=750 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=41 A;Amperage, Max (EN 50 019)=30/38 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=26 to 10 AWG;Wire Gauge (EN 50 019)=26 to 10 AWG;Wire Gauge (UL-cUL Ratings)=26 to 10 AWG	N/A	N/A	4 mm²
XBUT4BK4,240 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0 A	Black	Stranded Ferrule with Plastic Sleeve=1.5 - 35 mm²;Stranded with Ferrule=1.5 - 35 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 10 mm²;Solid=1.5 - 16 mm²	3	50 mm²	9 mm	150 A	8 kV	16 mm	Metric	28.3 to 32.7 Nm	Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=750 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=41 A;Amperage, Max (EN 50 019)=30/38 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=26 to 10 AWG;Wire Gauge (EN 50 019)=26 to 10 AWG;Wire Gauge (UL-cUL Ratings)=26 to 10 AWG	N/A	N/A	4 mm²
