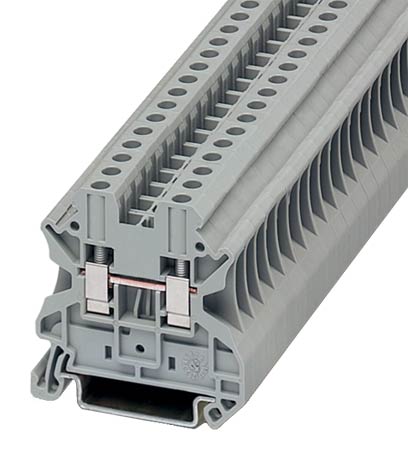

XBUT25-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Color Options	Contamination Class	Cover Width	Cross-Section Area	Insulation Strip Length	Length	Load Current, Max	Rated Surge Voltage	Solid	Stranded Ferrule with Plastic Sleeve	Stranded with Ferrule	Stranded with Ferrule without Plastic Sleeve	Stranded with Twin Ferrule with Plastic Sleeve	Surge Voltage Category	Terminal Width	Thread Type	Tightening Torque	V/A/AWG Compliance	Wire Size, Max	수량 / 장바구니
XBUT25BU4,160 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Blue	3	2.2 mm	4 mm²	9 mm	46.9 mm	32 A	8 kV	0.14 - 1.5 mm²	0.25 - 2.5 mm²	0.25 - 2.5 mm²	0.25 - 1.5 mm²	0.5 - 1.5 mm²	III	5.2 mm	Metric	0.6 to 0.8 Nm	IeC 60 947-7-1 in V/A/AWG: 800/32/26-12 eN 50 0191 in V/A/AWG: 750/22 or 28/26-12 ul-cul ratings in V/AAWG: 600/20/26-12	2.5 mm²
XBUT254,160 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Gray	3	2.2 mm	4 mm²	9 mm	46.9 mm	32 A	8 kV	0.14 - 1.5 mm²	0.25 - 2.5 mm²	0.25 - 2.5 mm²	0.25 - 1.5 mm²	0.5 - 1.5 mm²	III	5.2 mm	Metric	0.6 to 0.8 Nm	IeC 60 947-7-1 in V/A/AWG: 800/32/26-12 eN 50 0191 in V/A/AWG: 750/22 or 28/26-12 ul-cul ratings in V/AAWG: 600/20/26-12	2.5 mm²

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Color Options

Contamination Class

Cover Width

Cross-Section Area

Insulation Strip Length

Length

Load Current, Max

Rated Surge Voltage

Solid

Stranded Ferrule with Plastic Sleeve

Stranded with Ferrule

Stranded with Ferrule without Plastic Sleeve

Stranded with Twin Ferrule with Plastic Sleeve

Surge Voltage Category

Terminal Width

Thread Type

Tightening Torque

V/A/AWG Compliance

Wire Size, Max

수량 / 장바구니

XBUT25BU4,160 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Blue

2.2 mm

4 mm²

9 mm

46.9 mm

32 A

8 kV

0.14 - 1.5 mm²

0.25 - 2.5 mm²

0.25 - 1.5 mm²

0.5 - 1.5 mm²

III

5.2 mm

Metric

0.6 to 0.8 Nm

IeC 60 947-7-1 in V/A/AWG: 800/32/26-12 eN 50 0191 in V/A/AWG: 750/22 or 28/26-12 ul-cul ratings in V/AAWG: 600/20/26-12

2.5 mm²

XBUT254,160 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Gray

2.2 mm

4 mm²

9 mm

46.9 mm

32 A

8 kV

0.14 - 1.5 mm²

0.25 - 2.5 mm²

0.25 - 1.5 mm²

0.5 - 1.5 mm²

III

5.2 mm

Metric

0.6 to 0.8 Nm

IeC 60 947-7-1 in V/A/AWG: 800/32/26-12 eN 50 0191 in V/A/AWG: 750/22 or 28/26-12 ul-cul ratings in V/AAWG: 600/20/26-12

2.5 mm²
