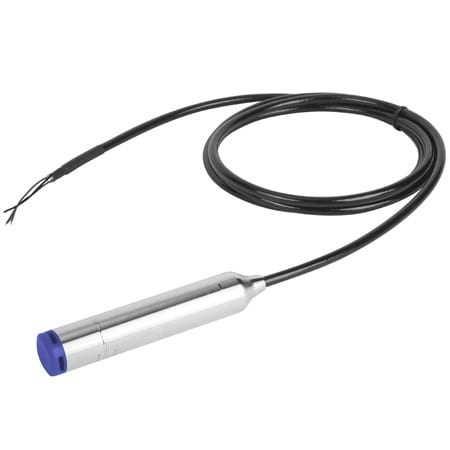

PX633 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 24개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Additional Features 1	Cable Length	Current Draw	Diameter	Electrical Connection	Electrical Output	Enclosure Ratings	Fill Fluid	Fits Cable Diameter	Load Effect	Loop Resistance, Max	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Output Signal	Power Supply	Process Connection Type	Stability	Supply Voltage	Thermal Effect	Transmission Distance	Vibration Effect
PX633A5-300GI2,650,580 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	710 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	300 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A5-250GI2,367,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	595 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	250 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A5-100GI1,521,600 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	250 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	100 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A5-150GI1,793,460 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	365 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	150 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A5-015GI1,030,530 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	50 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	15 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A5-030GI1,127,110 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	90 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	30 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A5-003GI958,060 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	20 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	3 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A2-300GI2,866,700 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	710 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	300 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A2-250GI2,552,750 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	595 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	250 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A2-150GI1,974,190 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	365 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	150 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A2-030GI1,196,570 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	90 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	30 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A2-100GI1,678,310 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	250 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	100 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A2-015GI1,162,660 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	50 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	15 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A2-005GI1,086,570 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	20 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	5 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A2-003GI1,086,570 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	20 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	3 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A1-250GI2,650,580 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %	< 0.1%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	595 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	250 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A1-300GI3,110,170 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %	< 0.1%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	710 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	300 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A1-150GI2,177,190 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %	< 0.1%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	365 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	150 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A1-100GI1,915,930 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %	< 0.1%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	250 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	100 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
PX633A1-030GI1,433,310 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %	< 0.1%	20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR	Surge Protection	90 ft	20.8 mA	28 mm	Submersible Cable	4 to 20 mA	IP68	Silicon oil	7.3 to 7.7 mm	± 0.05% FS/kΩ	<(U-10)/0.021 Ω, where U is supply voltage	316 Stainless Steel, FKM	Gauge	30 psi	Current	500 mW	Submersible	± 0.2%	10.5 to 55 Vdc	± 0.2% FS/10K	up to 1000 meters	IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Additional Features 1

Cable Length

Current Draw

Diameter

Electrical Connection

Electrical Output

Enclosure Ratings

Fill Fluid

Fits Cable Diameter

Load Effect

Loop Resistance, Max

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Output Signal

Power Supply

Process Connection Type

Stability

Supply Voltage

Thermal Effect

Transmission Distance

Vibration Effect

수량 / 장바구니

PX633A5-300GI2,650,580 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

710 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

300 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A5-250GI2,367,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

595 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

250 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A5-100GI1,521,600 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

250 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

100 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A5-150GI1,793,460 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

365 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

150 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A5-015GI1,030,530 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

50 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

15 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A5-030GI1,127,110 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

90 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

30 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A5-003GI958,060 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

20 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

3 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A2-300GI2,866,700 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

710 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

300 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A2-250GI2,552,750 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

595 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

250 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A2-150GI1,974,190 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

365 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

150 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A2-030GI1,196,570 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

90 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

30 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A2-100GI1,678,310 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

250 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

100 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A2-015GI1,162,660 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

50 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

15 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A2-005GI1,086,570 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

20 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

5 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A2-003GI1,086,570 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

20 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

3 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A1-250GI2,650,580 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %

< 0.1%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

595 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

250 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A1-300GI3,110,170 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %

< 0.1%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

710 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

300 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A1-150GI2,177,190 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %

< 0.1%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

365 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

150 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A1-100GI1,915,930 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %

< 0.1%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

250 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

100 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

PX633A1-030GI1,433,310 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %

< 0.1%

20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Surge Protection

90 ft

20.8 mA

28 mm

Submersible Cable

4 to 20 mA

IP68

Silicon oil

7.3 to 7.7 mm

± 0.05% FS/kΩ

<(U-10)/0.021 Ω, where U is supply voltage

316 Stainless Steel, FKM

Gauge

30 psi

0 psi

Current

500 mW

Submersible

± 0.2%

10.5 to 55 Vdc

± 0.2% FS/10K

up to 1000 meters

IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS
