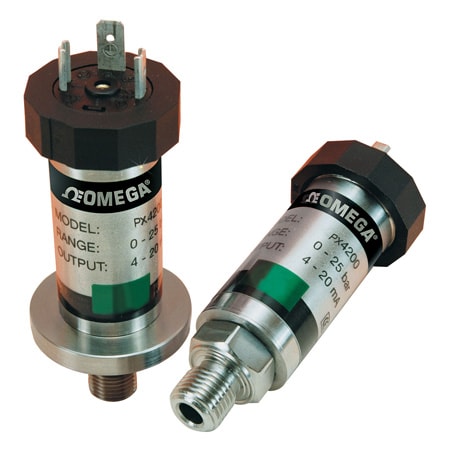

사파이어 기반 실리콘 압력 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 43개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Burst Pressure | Electrical Connection | Electrical Connection Note | Electrical Output | Electrical Output Note | Enclosure Material | Enclosure Ratings | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Relative Humidity | Repeatability Error | Response Time | Sensing Element | Stability | Stability Note | Supply Power Note | Supply Voltage | Thermal Effect on Span error, Max | Thermal Effect on Zero error, Max | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX4202-30VAC5V964,190 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Vacuum | -30 inHg | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-1.5KG5V854,220 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 1500 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-300G5V854,220 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 300 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-600G5V830,150 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 600 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-200G5V854,220 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 200 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-150G5V854,220 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 150 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-060G5V854,220 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 60 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-100G5V854,220 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 100 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-030G5V889,050 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 30 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-015G5V889,050 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 15 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-005G5V917,710 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 5 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-010G5V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 10 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4200-30VACI858,160 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 4 to 20 mA | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Vacuum | -30 inHg | 0 psi | 80 °C | -40 °C | Current | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4200-2.5BGI가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 4 to 20 mA | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 2.5 bar | 0 psi | 80 °C | -40 °C | Current | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-6KG5V834,760 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 6000 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4200-1.5KGI881,390 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 4 to 20 mA | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 1500 psi | 0 psi | 80 °C | -40 °C | Current | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-3KG5V830,150 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 3000 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4202-1KG5V854,220 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 0 to 5 V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 1000 psi | 0 psi | 80 °C | -40 °C | Voltage | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4201-300GV697,870 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 10 mV/V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 300 psi | 0 psi | 80 °C | -40 °C | Millivolt | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g | |
PX4201-600GV697,870 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% full scale includes linearity, and hysteresis | 2x Full Scale | DIN 43650 A (solenoid valve) | DIN 43650 plug mating connector supplied | 10 mV/V | 4 to 20 mA (2-Wire) with zero and span adjustments | Stainless Steel | IP65 | Titanium | Gauge | 600 psi | 0 psi | 80 °C | -40 °C | Millivolt | 1/4 in | NPT Male | 120 °C | -50 °C | 95% RH non-condensing | ± 0.1% full scale | 10 ms | Silicon-on-Sapphire Pieazoresistive MEMS | ± 0.2% | Long Term Stability (1yr): ± 0.2% full scale | 13 to 36 Vdc with PM1000 18 to 36 Vdc reverse polarity protected. | 13 to 36 Vdc | <± 0.016% FS/°F | <± 0.016% FS/°F, <± 0.016% FS/°F | 90 g |
