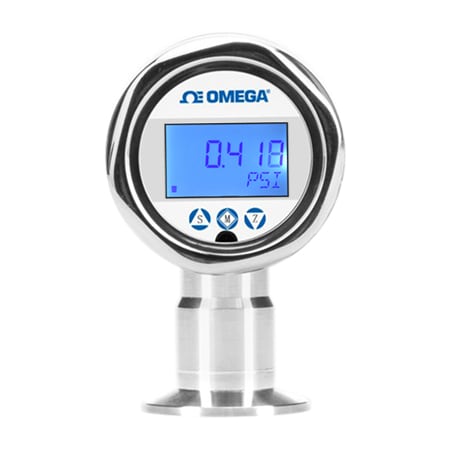

PX3005K | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 16개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Electrical Connection	Electrical Output	Electrical Output Note	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Process Connection Size	Process Connection Type	Process Temperature, Max	Process Temperature, Min	Storage Temperature, Max	Storage Temperature, Min
PX3005K02-250GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	250 psi	-15 psi	70 °C	-20 °C	Current	2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K02-300GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	300 psi	-15 psi	70 °C	-20 °C	Current	2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K02-150GI2,263,520 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	150 psi	-15 psi	70 °C	-20 °C	Current	2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K02-100GI2,143,790 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	100 psi	-15 psi	70 °C	-20 °C	Current	2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K02-015GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	15 psi	-15 psi	70 °C	-20 °C	Current	2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K02-030GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	30 psi	-15 psi	70 °C	-20 °C	Current	2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K02-005GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	5 psi	-5 psi	70 °C	-20 °C	Current	2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K02-003GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	3 psi	-3 psi	70 °C	-20 °C	Current	2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K01-300GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	300 psi	-15 psi	70 °C	-20 °C	Current	1 1/2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K01-150GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	150 psi	-15 psi	70 °C	-20 °C	Current	1 1/2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K01-250GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	250 psi	-15 psi	70 °C	-20 °C	Current	1 1/2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K01-100GI2,199,710 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	100 psi	-15 psi	70 °C	-20 °C	Current	1 1/2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K01-030GI2,199,710 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	30 psi	-15 psi	70 °C	-20 °C	Current	1 1/2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K01-005GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	5 psi	-5 psi	70 °C	-20 °C	Current	1 1/2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K01-015GI2,199,710 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	15 psi	-15 psi	70 °C	-20 °C	Current	1 1/2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C
PX3005K01-003GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	± 0.2TD% SPAN	M12 4 pin Male	4 to 20 mA	4 to 20 mA Two wire	Compound Gauge	3 psi	-3 psi	70 °C	-20 °C	Current	1 1/2 in	Tri-Clamp	120 °C	-40 °C	85 °C	-40 °C

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Electrical Connection

Electrical Output

Electrical Output Note

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Process Connection Size

Process Connection Type

Process Temperature, Max

Process Temperature, Min

Storage Temperature, Max

Storage Temperature, Min

수량 / 장바구니

PX3005K02-250GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

250 psi

-15 psi

70 °C

-20 °C

Current

2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K02-300GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

300 psi

-15 psi

70 °C

-20 °C

Current

2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K02-150GI2,263,520 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

150 psi

-15 psi

70 °C

-20 °C

Current

2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K02-100GI2,143,790 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

100 psi

-15 psi

70 °C

-20 °C

Current

2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K02-015GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

15 psi

-15 psi

70 °C

-20 °C

Current

2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K02-030GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

30 psi

-15 psi

70 °C

-20 °C

Current

2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K02-005GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

5 psi

-5 psi

70 °C

-20 °C

Current

2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K02-003GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

3 psi

-3 psi

70 °C

-20 °C

Current

2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K01-300GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

300 psi

-15 psi

70 °C

-20 °C

Current

1 1/2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K01-150GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

150 psi

-15 psi

70 °C

-20 °C

Current

1 1/2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K01-250GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

250 psi

-15 psi

70 °C

-20 °C

Current

1 1/2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K01-100GI2,199,710 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

100 psi

-15 psi

70 °C

-20 °C

Current

1 1/2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K01-030GI2,199,710 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

30 psi

-15 psi

70 °C

-20 °C

Current

1 1/2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K01-005GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

5 psi

-5 psi

70 °C

-20 °C

Current

1 1/2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K01-015GI2,199,710 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

15 psi

-15 psi

70 °C

-20 °C

Current

1 1/2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C

PX3005K01-003GI2,199,710 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

± 0.2TD% SPAN

M12 4 pin Male

4 to 20 mA

4 to 20 mA Two wire

Compound Gauge

3 psi

-3 psi

70 °C

-20 °C

Current

1 1/2 in

Tri-Clamp

120 °C

-40 °C

85 °C

-40 °C
