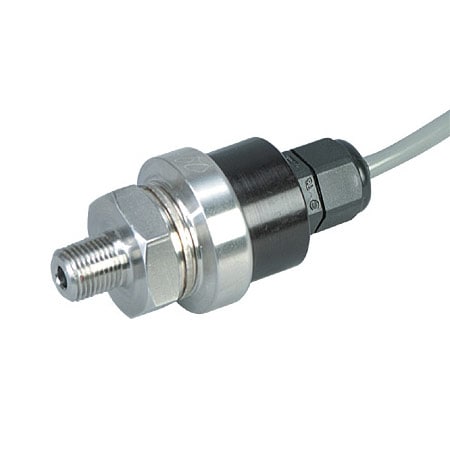

PX480A | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Burst Pressure	Burst Pressure Note	Cable Length	Compensated Temperature, Max	Compensated Temperature, Min	Diameter	Electrical Connection	Electrical Output	Electrical Output Note	Height	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Operating Temperature, Max	Operating Temperature, Min	Output Resistance	Output Signal	Process Connection Size	Process Connection Type	Process Temperature, Max	Process Temperature, Min	Proof Pressure	Proof Pressure Note	Shock	Stability	Stability Note	Supply Voltage	Thermal Effect on Span error, Max	Thermal Effect on Zero error, Max	Vibration	Weight	수량 / 장바구니
PX481A-100G5V660,440 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.3 %	> 0.25%	0.3% BFSL max (includes linearity, hysteresis and repeatability)	3x Full Scale	3X FS	0.4 m	75 °C	-25 °C	29.7 mm	Cable	1 to 5 V	0 to 50 mV for 0 to 1 psi models, 0 to 100 mV for all other ranges; bridge output	72 mm	316L Stainless Steel	Gauge	100 psi	0 psi	80 °C	-40 °C	50000 Ω	Voltage	1/8 in	NPT Male	100 °C	-40 °C	2x Full Scale	2X FS	30 g	<0.25%	1-Year Stability: <0.25% FS	10 Vdc	2% FS maximum over compensated temperature range	2% FS maximum over compensated temperature range, 2% FS maximum over compensated temperature range	10 g, 55 to 2000 Hz	142 g
PX482AD-300GI가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.3 %	> 0.25%	0.3% BFSL max (includes linearity, hysteresis and repeatability)	3x Full Scale	3X FS	0.4 m	75 °C	-25 °C	29.7 mm	DIN 43650 C (solenoid valve)	4 to 20 mA	0 to 50 mV for 0 to 1 psi models, 0 to 100 mV for all other ranges; bridge output	72 mm	316L Stainless Steel	Gauge	300 psi	0 psi	80 °C	-40 °C	50000 Ω	Current	1/8 in	NPT Male	100 °C	-40 °C	2x Full Scale	2X FS	30 g	<0.25%	1-Year Stability: <0.25% FS	10 Vdc	2% FS maximum over compensated temperature range	2% FS maximum over compensated temperature range, 2% FS maximum over compensated temperature range	10 g, 55 to 2000 Hz	142 g

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Burst Pressure

Burst Pressure Note

Cable Length

Compensated Temperature, Max

Compensated Temperature, Min

Diameter

Electrical Connection

Electrical Output

Electrical Output Note

Height

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Output Resistance

Output Signal

Process Connection Size

Process Connection Type

Process Temperature, Max

Process Temperature, Min

Proof Pressure

Proof Pressure Note

Shock

Stability

Stability Note

Supply Voltage

Thermal Effect on Span error, Max

Thermal Effect on Zero error, Max

Vibration

Weight

수량 / 장바구니

PX481A-100G5V660,440 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.3 %

> 0.25%

0.3% BFSL max (includes linearity, hysteresis and repeatability)

3x Full Scale

3X FS

0.4 m

75 °C

-25 °C

29.7 mm

Cable

1 to 5 V

0 to 50 mV for 0 to 1 psi models, 0 to 100 mV for all other ranges; bridge output

72 mm

316L Stainless Steel

Gauge

100 psi

0 psi

80 °C

-40 °C

50000 Ω

Voltage

1/8 in

NPT Male

100 °C

-40 °C

2x Full Scale

2X FS

30 g

<0.25%

1-Year Stability: <0.25% FS

10 Vdc

2% FS maximum over compensated temperature range

2% FS maximum over compensated temperature range, 2% FS maximum over compensated temperature range

10 g, 55 to 2000 Hz

142 g

PX482AD-300GI가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.3 %

> 0.25%

0.3% BFSL max (includes linearity, hysteresis and repeatability)

3x Full Scale

3X FS

0.4 m

75 °C

-25 °C

29.7 mm

DIN 43650 C (solenoid valve)

4 to 20 mA

0 to 50 mV for 0 to 1 psi models, 0 to 100 mV for all other ranges; bridge output

72 mm

316L Stainless Steel

Gauge

300 psi

0 psi

80 °C

-40 °C

50000 Ω

Current

1/8 in

NPT Male

100 °C

-40 °C

2x Full Scale

2X FS

30 g

<0.25%

1-Year Stability: <0.25% FS

10 Vdc

2% FS maximum over compensated temperature range

2% FS maximum over compensated temperature range, 2% FS maximum over compensated temperature range

10 g, 55 to 2000 Hz

142 g
