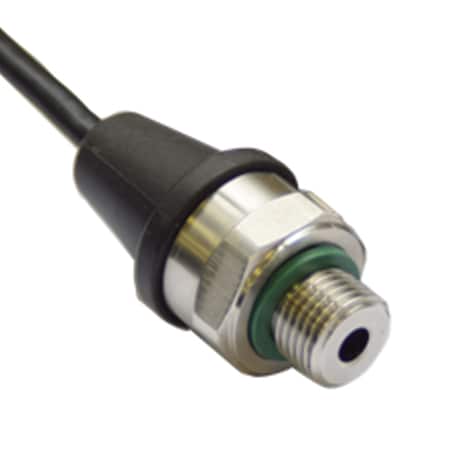

PX190 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 10개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Burst Pressure	Cable Length	Compensated Temperature, Max	Electrical Connection	Electrical Output	Enclosure Ratings	Insulation Resistance	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Operating Temperature, Max	Output Signal	Process Connection Size	Process Connection Type	Storage Temperature, Max	Storage Temperature, Min	Supply Voltage	Thermal Effect on Span error, Max	Thermal Effect on Zero error, Max	Weight
PX191-300GV5가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	2x Full Scale or Maximum 1740 psi	19 in	70 °C	Cable	0.5 to 4.5 V	IP67	≥100 MΩ @ 250 Vdc	17-4 Stainless Steel	Gauge	300 psi	70 °C	Voltage	1/8 in	NPT Male	100 °C	-20 °C	0 to 5 Vdc	± 0.02 %FS/℃	± 0.02 %FS/℃	0.1 kg
PX191-700GV5가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	2x Full Scale or Maximum 1740 psi	19 in	70 °C	Cable	0.5 to 4.5 V	IP67	≥100 MΩ @ 250 Vdc	17-4 Stainless Steel	Gauge	700 psi	70 °C	Voltage	1/8 in	NPT Male	100 °C	-20 °C	0 to 5 Vdc	± 0.02 %FS/℃	± 0.02 %FS/℃	0.1 kg
PX191-200GV5가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	2x Full Scale or Maximum 1740 psi	19 in	70 °C	Cable	0.5 to 4.5 V	IP67	≥100 MΩ @ 250 Vdc	17-4 Stainless Steel	Gauge	200 psi	70 °C	Voltage	1/8 in	NPT Male	100 °C	-20 °C	0 to 5 Vdc	± 0.02 %FS/℃	± 0.02 %FS/℃	0.1 kg
PX192-700GI가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	2x Full Scale or Maximum 1740 psi	19 in	70 °C	Cable	4 to 20 mA	IP67	≥100 MΩ @ 250 Vdc	17-4 Stainless Steel	Gauge	700 psi	70 °C	Current	1/8 in	NPT Male	100 °C	-20 °C	10 to 28 Vdc	± 0.02 %FS/℃	± 0.02 %FS/℃	0.1 kg
PX191-150GV5가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	2x Full Scale or Maximum 1740 psi	19 in	70 °C	Cable	0.5 to 4.5 V	IP67	≥100 MΩ @ 250 Vdc	17-4 Stainless Steel	Gauge	150 psi	70 °C	Voltage	1/8 in	NPT Male	100 °C	-20 °C	0 to 5 Vdc	± 0.02 %FS/℃	± 0.02 %FS/℃	0.1 kg
PX192-300GI가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	2x Full Scale or Maximum 1740 psi	19 in	70 °C	Cable	4 to 20 mA	IP67	≥100 MΩ @ 250 Vdc	17-4 Stainless Steel	Gauge	300 psi	70 °C	Current	1/8 in	NPT Male	100 °C	-20 °C	10 to 28 Vdc	± 0.02 %FS/℃	± 0.02 %FS/℃	0.1 kg
PX192-200GI가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	2x Full Scale or Maximum 1740 psi	19 in	70 °C	Cable	4 to 20 mA	IP67	≥100 MΩ @ 250 Vdc	17-4 Stainless Steel	Gauge	200 psi	70 °C	Current	1/8 in	NPT Male	100 °C	-20 °C	10 to 28 Vdc	± 0.02 %FS/℃	± 0.02 %FS/℃	0.1 kg
PX192-075GI가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	2x Full Scale or Maximum 1740 psi	19 in	70 °C	Cable	4 to 20 mA	IP67	≥100 MΩ @ 250 Vdc	17-4 Stainless Steel	Gauge	75 psi	70 °C	Current	1/8 in	NPT Male	100 °C	-20 °C	10 to 28 Vdc	± 0.02 %FS/℃	± 0.02 %FS/℃	0.1 kg
PX192-150GI가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	2x Full Scale or Maximum 1740 psi	19 in	70 °C	Cable	4 to 20 mA	IP67	≥100 MΩ @ 250 Vdc	17-4 Stainless Steel	Gauge	150 psi	70 °C	Current	1/8 in	NPT Male	100 °C	-20 °C	10 to 28 Vdc	± 0.02 %FS/℃	± 0.02 %FS/℃	0.1 kg
PX191-075GV5가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	2x Full Scale or Maximum 1740 psi	19 in	70 °C	Cable	0.5 to 4.5 V	IP67	≥100 MΩ @ 250 Vdc	17-4 Stainless Steel	Gauge	75 psi	70 °C	Voltage	1/8 in	NPT Male	100 °C	-20 °C	5 Vdc	± 0.02 %FS/℃	± 0.02 %FS/℃	0.1 kg

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Burst Pressure

Cable Length

Compensated Temperature, Max

Compensated Temperature, Min

Electrical Connection

Electrical Output

Enclosure Ratings

Insulation Resistance

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Process Connection Size

Process Connection Type

Storage Temperature, Max

Storage Temperature, Min

Supply Voltage

Thermal Effect on Span error, Max

Thermal Effect on Zero error, Max

Weight

수량 / 장바구니

PX191-300GV5가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

2x Full Scale or Maximum 1740 psi

19 in

70 °C

0 °C

Cable

0.5 to 4.5 V

IP67

≥100 MΩ @ 250 Vdc

17-4 Stainless Steel

Gauge

300 psi

0 psi

70 °C

0 °C

Voltage

1/8 in

NPT Male

100 °C

-20 °C

0 to 5 Vdc

± 0.02 %FS/℃

0.1 kg

PX191-700GV5가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

2x Full Scale or Maximum 1740 psi

19 in

70 °C

0 °C

Cable

0.5 to 4.5 V

IP67

≥100 MΩ @ 250 Vdc

17-4 Stainless Steel

Gauge

700 psi

0 psi

70 °C

0 °C

Voltage

1/8 in

NPT Male

100 °C

-20 °C

0 to 5 Vdc

± 0.02 %FS/℃

0.1 kg

PX191-200GV5가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

2x Full Scale or Maximum 1740 psi

19 in

70 °C

0 °C

Cable

0.5 to 4.5 V

IP67

≥100 MΩ @ 250 Vdc

17-4 Stainless Steel

Gauge

200 psi

0 psi

70 °C

0 °C

Voltage

1/8 in

NPT Male

100 °C

-20 °C

0 to 5 Vdc

± 0.02 %FS/℃

0.1 kg

PX192-700GI가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

2x Full Scale or Maximum 1740 psi

19 in

70 °C

0 °C

Cable

4 to 20 mA

IP67

≥100 MΩ @ 250 Vdc

17-4 Stainless Steel

Gauge

700 psi

0 psi

70 °C

0 °C

Current

1/8 in

NPT Male

100 °C

-20 °C

10 to 28 Vdc

± 0.02 %FS/℃

0.1 kg

PX191-150GV5가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

2x Full Scale or Maximum 1740 psi

19 in

70 °C

0 °C

Cable

0.5 to 4.5 V

IP67

≥100 MΩ @ 250 Vdc

17-4 Stainless Steel

Gauge

150 psi

0 psi

70 °C

0 °C

Voltage

1/8 in

NPT Male

100 °C

-20 °C

0 to 5 Vdc

± 0.02 %FS/℃

0.1 kg

PX192-300GI가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

2x Full Scale or Maximum 1740 psi

19 in

70 °C

0 °C

Cable

4 to 20 mA

IP67

≥100 MΩ @ 250 Vdc

17-4 Stainless Steel

Gauge

300 psi

0 psi

70 °C

0 °C

Current

1/8 in

NPT Male

100 °C

-20 °C

10 to 28 Vdc

± 0.02 %FS/℃

0.1 kg

PX192-200GI가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

2x Full Scale or Maximum 1740 psi

19 in

70 °C

0 °C

Cable

4 to 20 mA

IP67

≥100 MΩ @ 250 Vdc

17-4 Stainless Steel

Gauge

200 psi

0 psi

70 °C

0 °C

Current

1/8 in

NPT Male

100 °C

-20 °C

10 to 28 Vdc

± 0.02 %FS/℃

0.1 kg

PX192-075GI가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

2x Full Scale or Maximum 1740 psi

19 in

70 °C

0 °C

Cable

4 to 20 mA

IP67

≥100 MΩ @ 250 Vdc

17-4 Stainless Steel

Gauge

75 psi

0 psi

70 °C

0 °C

Current

1/8 in

NPT Male

100 °C

-20 °C

10 to 28 Vdc

± 0.02 %FS/℃

0.1 kg

PX192-150GI가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

2x Full Scale or Maximum 1740 psi

19 in

70 °C

0 °C

Cable

4 to 20 mA

IP67

≥100 MΩ @ 250 Vdc

17-4 Stainless Steel

Gauge

150 psi

0 psi

70 °C

0 °C

Current

1/8 in

NPT Male

100 °C

-20 °C

10 to 28 Vdc

± 0.02 %FS/℃

0.1 kg

PX191-075GV5가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

2x Full Scale or Maximum 1740 psi

19 in

70 °C

0 °C

Cable

0.5 to 4.5 V

IP67

≥100 MΩ @ 250 Vdc

17-4 Stainless Steel

Gauge

75 psi

0 psi

70 °C

0 °C

Voltage

1/8 in

NPT Male

100 °C

-20 °C

5 Vdc

± 0.02 %FS/℃

0.1 kg
