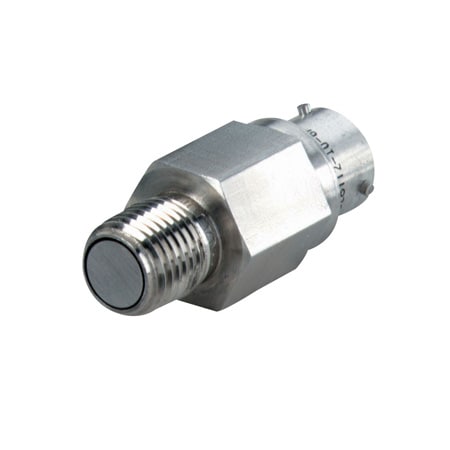

소형 플러시 다이어프램 압력 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 46개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Bridge Resistance | Burst Pressure | Burst Pressure Note | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Electrical Output Note | Materials, Wetted | Mating Connector | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Size | Process Connection Type | Proof Pressure | Proof Pressure Note | Repeatability Error | Supply Voltage | Thermal Effect on Span error, Max | Thermal Effect on Zero error, Max | Weight | Zero/Balance Error | Cable Length | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX61V1-2.5KGV982,440 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 2500 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V0-2.5KGV977,020 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | Cable | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 2500 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V1-500GV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 500 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61C1-2.5KGV1,478,470 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined; calibrated at 0%, 50%, 100%, 50%, 0% | None | 350 Ω | 5x Full Scale | 500% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 2 mV/V | Range @ 50 psi = 1 mV/V; range >100 psi: 2 mV/V | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 2500 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/4 in | NPT Male | 150% Full Scale | 150% of capacity | 0.1% of FSO | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | 50 g | ± 1% FS | - | |
PX61V1-500AV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Absolute | 500 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V1-300GV가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 300 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V1-10KGV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 10000 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V1-200GV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 200 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V1-100SV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Sealed Gauge | 100 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V1-100GV982,440 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 100 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V1-050GV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 1 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 50 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V1-100AV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Absolute | 100 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V1-050AV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | MIL-26482-I 10-6P | 1 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Absolute | 50 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V0-500GV922,940 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | Cable | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 500 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V0-300GV929,940 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | Cable | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 300 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V0-300SV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | Cable | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Sealed Gauge | 300 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V0-200SV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | Cable | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Sealed Gauge | 200 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V0-200GV926,370 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | Cable | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 200 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V0-150GV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | Cable | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Gauge | 150 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m | |
PX61V0-200AV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | 1.0% linearity and hysteresis combined | None | 350 Ω | 3x Full Scale | 300% of capacity | 71 °C | 16 °C | Cable | 2 mV/V | 2 mV/V -20% +50% (1 mV/V 50 psi ranges) | 17-4 Stainless Steel | MIL-26482-I 10-6S | Absolute | 200 psi | 0 psi | 121 °C | -54 °C | Millivolt | 1/2 in | UNF Male | 150% Full Scale | 150% of capacity | ± 0.1% FS | 5 Vdc | ± 0.02% FSO/°F | ± 0.02% FSO/°F , ± 0.01% FSO/°F | - | ± 2.0% FSO | 1.5 m |
