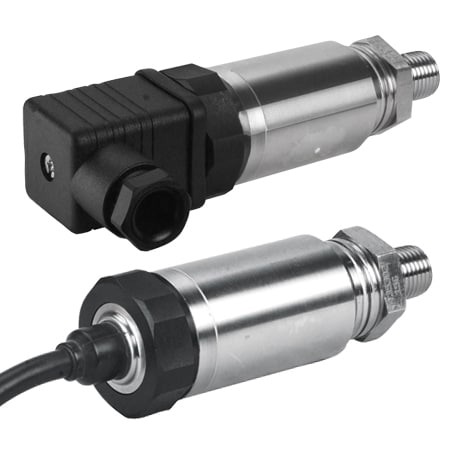

메트릭, 고정밀, 본질 안전형 압력 트랜스미터
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 24개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Bandwidth | Burst Pressure | Compensated Temperature, Max | Compensated Temperature, Min | Compliance | Electrical Connection | Electrical Output | Enclosure Ratings | Insulation Resistance | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Pressure Cycles | Process Connection Size | Process Connection Type | Proof Pressure | Response Time | Sensing Element | Shock | Shunt Calibration Value | Span Setting Adjustable Range | Stability | Stability Note | Supply Power Note | Supply Voltage | Thermal Effect on Span error, Max | Thermal Effect on Zero error, Max | Trim Pot Access | Vibration | Weight | Zero Setting Adjustable Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PXM539-170HCGBC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -17 °C | RoHS 2 | DIN 43650 A (solenoid valve) | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Compound Gauge | 170 mBar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 1.0% span | ± 1.0% span, ± 1.0% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM509C-010BGC2IS1,813,330 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below | 1/2" Conduit | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 10 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | None | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | None | ± 20 g | 315 g | None | |
PXM509C-007BAC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below | 1/2" Conduit | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Absolute | 7 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | Up to 1000 psi | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | None | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | None | ± 20 g | 315 g | None | |
PXM509-17.5BGC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | Cable | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 17.5 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM509C-001BAC2IS1,813,330 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below | 1/2" Conduit | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Absolute | 1 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | Up to 1000 psi | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | None | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | None | ± 20 g | 315 g | None | |
PXM559-350HAC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 6x Full Scale | 75 °C | -17 °C | RoHS 2 | M12 4 pin Female | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Absolute | 350 mBar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | Up to 1000 psi | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 1.0% span | ± 1.0% span, ± 1.0% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM559-245BGC2IS1,645,970 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 7250 psi Maximum | 75 °C | -29 °C | RoHS 2 | M12 4 pin Female | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 245 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM559-100BGC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 7250 psi Maximum | 75 °C | -29 °C | RoHS 2 | M12 4 pin Female | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 100 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM559-035BGC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | M12 4 pin Female | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 35 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM559-010BGC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | M12 4 pin Female | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 10 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM559-002BGC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | M12 4 pin Female | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 2 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM559-007BGC2IS가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | M12 4 pin Female | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 7 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM559-001BGC2IS1,817,380 원20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | M12 4 pin Female | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 1 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM539-350HGC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -17 °C | RoHS 2 | DIN 43650 A (solenoid valve) | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 350 mBar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 1.0% span | ± 1.0% span, ± 1.0% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM539-170HGC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -17 °C | RoHS 2 | DIN 43650 A (solenoid valve) | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 170 mBar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 1.0% span | ± 1.0% span, ± 1.0% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM539-050BGC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | DIN 43650 A (solenoid valve) | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 50 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM539-007BGC2IS가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | DIN 43650 A (solenoid valve) | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 7 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM509-3.5BAC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | Cable | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Absolute | 3.5 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | Up to 1000 psi | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM519-010BAC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 4x Full Scale | 75 °C | -29 °C | RoHS 2 | DIN 43650 C (solenoid valve) | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Absolute | 10 bar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | Up to 1000 psi | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 0.5% span | ± 0.5% span, ± 0.5% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span | |
PXM509-070HGC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | ± 0.08% BSL maximum (other accuracies available) | None | DC to 1 kHz | 6x Full Scale | 75 °C | -17 °C | RoHS 2 | Cable | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | Gauge | 70 mBar | 0 bar | 75 °C | -40 °C | Current | 1 million, minimum | 1/4 in | BSPP Male | - | <1 ms | Oil filled Piezoresistive MEMS | 50 g, 11 ms half-sine | - | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 10 to 28 Vdc, output 4 to 20 mA | 10 to 28 Vdc | ± 1.0% span | ± 1.0% span, ± 1.0% span | Removeable Electrical Connection Cover | ± 20 g | 315 g | ± 10% span |
