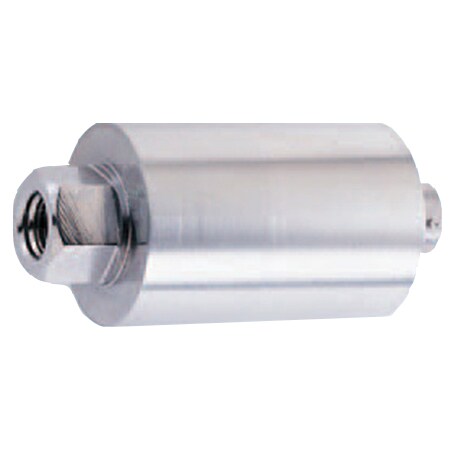

스테인리스 스틸 구조의 해양 압력 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 5개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Burst Pressure | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Electrical Output Note | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Output Signal | Process Connection Size | Process Connection Type | Proof Pressure | Stability | Stability Note | Supply Voltage | Thermal Effect | Thermal Effect on Zero error, Max | Vibration | Zero/Balance Error | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5SE01313-21가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | Combined Effects Non-Linearity, Hysteresis and Repeatability: 0.25% RO (Max.) | - | 150 °F | -25 °F | MIL-26482-I 10-6P | 0 to 5 V | 5 VDC ± 0.25% (± 10% Adjustable) Short Circuit Protected | Absolute | 600 inHg | 0 inHg | Voltage | 1/4 in | NPT Female | - | 0.4% RO | Thermal Zero Stability: 0.4% RO (Max.) Thermal Sensitivity Stability: 0.3% RO (Max.) | 28 Vdc ± 4 Vdc | 0.0020/°F (0.0036/°C) Max. | 0.0015/°F (0.0027%/°C) Max. | (5-2000 Hz): 0.04% RO/G (Max.) | ± 10% Adjustable (Min.) | |
5SE01313-20가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | Combined Effects Non-Linearity, Hysteresis and Repeatability: 0.25% RO (Max.) | 150% Full Scale | 150 °F | -25 °F | MIL-26482-I 10-6P | 0 to 5 V | 5 VDC ± 0.25% (± 10% Adjustable) Short Circuit Protected | Gauge | 300 psi | 0 psi | Voltage | 1/4 in | NPT Female | - | 0.4% RO | Thermal Zero Stability: 0.4% RO (Max.) Thermal Sensitivity Stability: 0.3% RO (Max.) | 28 Vdc ± 4 Vdc | 0.0020/°F (0.0036/°C) Max. | 0.0015/°F (0.0027%/°C) Max. | (5-2000 Hz): 0.04% RO/G (Max.) | ± 10% Adjustable (Min.) | |
5SE01313-9가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | Combined Effects Non-Linearity, Hysteresis and Repeatability: 0.25% RO (Max.) | 3x Full Scale | 150 °F | -25 °F | MIL-26482-I 10-6P | 0 to 5 V | 5 VDC ± 0.25% (± 10% Adjustable) Short Circuit Protected | Gauge | 1000 psi | 0 psi | Voltage | 1/4 in | NPT Female | 150% Full Scale | 0.4% RO | Thermal Zero Stability: 0.4% RO (Max.) Thermal Sensitivity Stability: 0.3% RO (Max.) | 28 Vdc ± 4 Vdc | 0.0020/°F (0.0036/°C) Max. | 0.0015/°F (0.0027%/°C) Max. | (5-2000 Hz): 0.04% RO/G (Max.) | ± 10% Adjustable (Min.) | |
5SE01313-8가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | Combined Effects Non-Linearity, Hysteresis and Repeatability: 0.25% RO (Max.) | 3x Full Scale | 150 °F | -25 °F | MIL-26482-I 10-6P | 0 to 5 V | 5 VDC ± 0.25% (± 10% Adjustable) Short Circuit Protected | Gauge | 500 psi | 0 psi | Voltage | 1/4 in | NPT Female | 150% Full Scale | 0.4% RO | Thermal Zero Stability: 0.4% RO (Max.) Thermal Sensitivity Stability: 0.3% RO (Max.) | 28 Vdc ± 4 Vdc | 0.0020/°F (0.0036/°C) Max. | 0.0015/°F (0.0027%/°C) Max. | (5-2000 Hz): 0.04% RO/G (Max.) | ± 10% Adjustable (Min.) | |
5SE01313-4가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | Combined Effects Non-Linearity, Hysteresis and Repeatability: 0.25% RO (Max.) | 8x Full Scale | 150 °F | -25 °F | MIL-26482-I 10-6P | 0 to 5 V | 5 VDC ± 0.25% (± 10% Adjustable) Short Circuit Protected | Gauge | 50 psi | 0 psi | Voltage | 1/4 in | NPT Female | 150% Full Scale | 0.4% RO | Thermal Zero Stability: 0.4% RO (Max.) Thermal Sensitivity Stability: 0.3% RO (Max.) | 28 Vdc ± 4 Vdc | 0.0020/°F (0.0036/°C) Max. | 0.0015/°F (0.0027%/°C) Max. | (5-2000 Hz): 0.04% RO/G (Max.) | ± 10% Adjustable (Min.) |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
