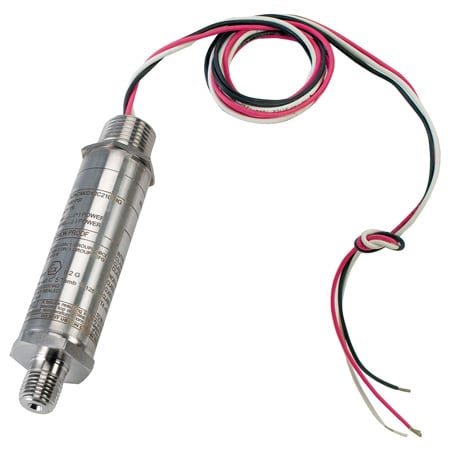

본질안전형 압력 트랜스미터 (ATEX 인증)
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 23개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Electrical Output Note | Enclosure Material | Enclosure Ratings | Fits Cable Diameter | Insulation Resistance | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Position Effect | Process Connection Note | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Protection | Relative Humidity | Response Time | Stability | Stability Note | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Voltage | Thermal Effect on Span error, Max | Thermal Effect on Zero error, Max | Vibration | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX835-7.5KGI1,565,070 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 7500 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-100CGI1,565,070 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Compound Gauge | 100 psi | -15 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-060CGI1,644,330 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Compound Gauge | 60 psi | -15 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-030CGI1,565,070 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Compound Gauge | 30 psi | -15 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-045CGI1,644,330 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Compound Gauge | 45 psi | -15 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-750GI1,644,330 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 750 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-500GI1,565,070 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 500 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-200GI1,605,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 200 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-300GI1,653,410 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 300 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-15NGI1,644,330 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Vacuum | 15 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-150GI1,653,410 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 150 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-10KGI1,653,410 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 10000 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-060GI1,653,410 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 60 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-100GI1,522,810 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 100 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-030GI1,565,070 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 30 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-015GI1,733,430 원22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 15 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-005GI1,733,430 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 5 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-010GI1,723,870 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 10 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-5KGI1,565,070 원17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 5000 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g | |
PX835-3KGI가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | > 0.25% | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) | None | 85 °C | -20 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 4 to 20 mA(2 wire) | 304 Stainless Steel | IP65, NEMA Type 7, NEMA Type 9 | 9 to 12 mm | 100 MΩ | 316 Stainless Steel | Gauge | 3000 psi | 0 psi | 125 °C | -40 °C | Current | ± 0.02% typical | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination | 1/4 in | NPT Male | 125 °C | -40 °C | Reverse polarity and mis-wire protected | 0 to 0.95 | 2 ms | ≤± 0.25% | ≤± 0.25% span/year @ ref conditions (21°C/70°F) | 125 °C | -40 °C | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) | 12 to 32 Vdc | 2% span | 2% span | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak | 254 g |
