산업용 본질 안전 압력 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 12개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Additional Features 2 | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Enclosure Material | Fill Fluid | Loop Resistance, Max | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Size | Process Connection Type | Response Time | Stability | Stability Note | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Voltage | Thermal Effect on Span error, Max | Thermal Effect on Zero error, Max | Vibration | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX881-300GI2,478,870 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Flush Mount Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel, Hastelloy, PTFE | Gauge | 300 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | Weldolet Pipe Coupling | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |
PX881-100GI2,604,410 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Flush Mount Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel, Hastelloy, PTFE | Gauge | 100 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | Weldolet Pipe Coupling | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |
PX881-030GI2,618,850 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Flush Mount Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel, Hastelloy, PTFE | Gauge | 30 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | Weldolet Pipe Coupling | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |

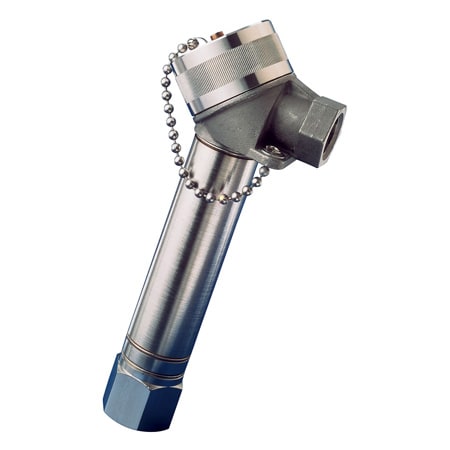

PX880-X15GI2,139,730 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Connection Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel | Gauge | 15 psi | 3 psi | 100 °C | -40 °C | Current | 1/2 in | NPT Female | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |
PX881-015GI2,604,410 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Flush Mount Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel, Hastelloy, PTFE | Gauge | 15 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | Weldolet Pipe Coupling | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |
PX880-300GI2,239,280 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Connection Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel | Gauge | 300 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | NPT Female | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |
PX880-100GI2,239,280 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Connection Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel | Gauge | 100 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | NPT Female | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |
PX880-030GI2,239,280 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Connection Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel | Gauge | 30 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | NPT Female | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |
PX880-3KGI2,239,280 원13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Connection Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel | Gauge | 3000 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | NPT Female | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |
PX880-5KGI2,226,950 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Connection Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel | Gauge | 5000 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | NPT Female | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |
PX880-1KGI2,119,620 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Connection Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel | Gauge | 1000 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | NPT Female | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g | |
PX880-015GI2,239,280 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | 0.1% to 0.25% | ± 0.2% of calibrated span including linearity, hysteresis and repeatability | Connection Transmitter | Cast Head: CF-8M (316 cast SS) with Buna-N O-ring | 82 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | 316 Stainless Steel | DC 200 silicone oil | (Vs – 12) x 50 | 316 Stainless Steel | Gauge | 15 psi | 0 psi | 100 °C | -40 °C | Current | 1/2 in | NPT Female | 20 ms | ± 0.5% | ± 0.5% of upper range for 6 months | 100 °C | -40 °C | 12 to 40 Vdc with reverse polarity protection | 12 to 40 Vdc | ± 0.02% FS/°F, ± 0.032% FS/°F | ± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F | 0.1% upper limit for 3 g @ 200 Hz | 725 g |
