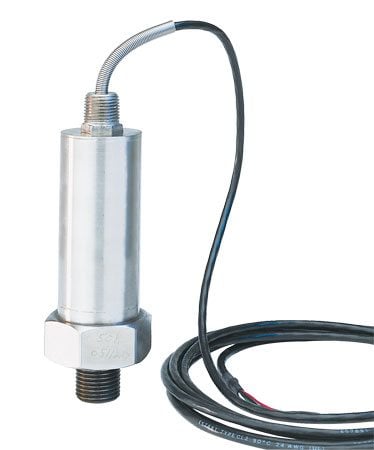

고온 고압 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 57개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy Class | Burst Pressure | Burst Pressure Note | Cable Length | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Electrical Output Note | Hysteresis | Linearity Error | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Note | Process Connection Size | Process Connection Type | Proof Pressure | Proof Pressure Note | Repeatability Error | Supply Voltage | Thermal Effect on Span error, Max | Thermal Effect on Zero error, Max | Zero/Balance Error | Bridge Resistance | Shunt Calibration Value | Supply Power Note | Mating Connector | Additional Features 1 | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX91P1-150KS5T가격 문의84 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | - | 71 °C | 17 °C | MIL-26482-I 10-6P | 0 to 5 V | 0 to 5 Vdc ± 10% adj | 0.10% FS | 0.005 | 455 Stainless Steel | Sealed Gauge | 150000 psi | 0 psi | 121 °C | -46 °C | Voltage | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | 0.10% FS | 28 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 0 V ± 10% ADJ | - | 80% FSO | 28 Vdc ± 4 V | MIL-26482-I 10-6S | - | |
PX91P1-120KS5T가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | - | 71 °C | 17 °C | MIL-26482-I 10-6P | 0 to 5 V | 0 to 5 Vdc ± 10% adj | 0.10% FS | 0.005 | 455 Stainless Steel | Sealed Gauge | 120000 psi | 0 psi | 121 °C | -46 °C | Voltage | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | 0.10% FS | 28 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 0 V ± 10% ADJ | - | 80% FSO | 28 Vdc ± 4 V | MIL-26482-I 10-6S | - | |
PX91P1-100KS5T5,074,160 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | - | 71 °C | 17 °C | MIL-26482-I 10-6P | 0 to 5 V | 0 to 5 Vdc ± 10% adj | 0.10% FS | 0.005 | 455 Stainless Steel | Sealed Gauge | 100000 psi | 0 psi | 121 °C | -46 °C | Voltage | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | 0.10% FS | 28 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 0 V ± 10% ADJ | - | 80% FSO | 28 Vdc ± 4 V | MIL-26482-I 10-6S | - | |
PX91P0-150KS5T가격 문의84 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | 3 m | 71 °C | 17 °C | Cable | 0 to 5 V | 0 to 5 Vdc ± 10% adj | 0.10% FS | 0.005 | 455 Stainless Steel | Sealed Gauge | 150000 psi | 0 psi | 121 °C | -46 °C | Voltage | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | 0.10% FS | 28 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 0 V ± 10% ADJ | - | 80% FSO | 28 Vdc ± 4 V | - | - | |
PX91P0-100KS5T가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | 3 m | 71 °C | 17 °C | Cable | 0 to 5 V | 0 to 5 Vdc ± 10% adj | 0.10% FS | 0.005 | 455 Stainless Steel | Sealed Gauge | 100000 psi | 0 psi | 121 °C | -46 °C | Voltage | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | 0.10% FS | 28 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 0 V ± 10% ADJ | - | 80% FSO | 28 Vdc ± 4 V | - | - | |
PX91P0-120KS5T가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | 3 m | 71 °C | 17 °C | Cable | 0 to 5 V | 0 to 5 Vdc ± 10% adj | 0.10% FS | 0.005 | 455 Stainless Steel | Sealed Gauge | 120000 psi | 0 psi | 121 °C | -46 °C | Voltage | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | 0.10% FS | 28 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 0 V ± 10% ADJ | - | 80% FSO | 28 Vdc ± 4 V | - | - | |
PX91P5-150KSI가격 문의84 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | - | 71 °C | 17 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA ± 10% adj | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 150000 psi | 0 psi | 121 °C | -46 °C | Current | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 12 to 40 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 4 mA (+10%, -2% adj) | - | - | - | MIL-26482-I 10-6S | Lightning-protected amplifier housing | |
PX91P1-150KSV가격 문의84 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | - | 218 °C | 21 °C | MIL-26482-I 10-6P | 1 mV/V | 1 mV/V ± 0.5% | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 150000 psi | 0 psi | 204 °C | -56 °C | Millivolt | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 10 to 15 Vac/Vdc | 0.01% rdg/°F | 0.01% rdg/°F, 0.01% FSO/°F | ± 2.5% | 350 Ω | Calibration up to 30k psi. Consult Sales for full scale price. | - | MIL-26482-I 10-6S | - | |
PX91P1-80KS5T5,074,160 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | - | 71 °C | 17 °C | MIL-26482-I 10-6P | 0 to 5 V | 0 to 5 Vdc ± 10% adj | 0.10% FS | 0.005 | 455 Stainless Steel | Sealed Gauge | 80000 psi | 0 psi | 121 °C | -46 °C | Voltage | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | 0.10% FS | 28 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 0 V ± 10% ADJ | - | 80% FSO | 28 Vdc ± 4 V | MIL-26482-I 10-6S | - | |
PX91P1-150KSI가격 문의84 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | - | 71 °C | 17 °C | MIL-26482-I 10-6P | 4 to 20 mA | 4 to 20 mA ± 10% adj | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 150000 psi | 0 psi | 121 °C | -46 °C | Current | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 12 to 40 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 4 mA (+10%, -2% adj) | - | - | - | MIL-26482-I 10-6S | - | |
PX91P1-120KSI가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | - | 71 °C | 17 °C | MIL-26482-I 10-6P | 4 to 20 mA | 4 to 20 mA ± 10% adj | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 120000 psi | 0 psi | 121 °C | -46 °C | Current | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 12 to 40 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 4 mA (+10%, -2% adj) | - | - | - | MIL-26482-I 10-6S | - | |
PX91P1-100KSI가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | - | 71 °C | 17 °C | MIL-26482-I 10-6P | 4 to 20 mA | 4 to 20 mA ± 10% adj | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 100000 psi | 0 psi | 121 °C | -46 °C | Current | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 12 to 40 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 4 mA (+10%, -2% adj) | - | - | - | MIL-26482-I 10-6S | - | |
PX91P0-150KSV가격 문의84 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | 3 m | 218 °C | 21 °C | Cable | 1 mV/V | 1 mV/V ± 0.5% | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 150000 psi | 0 psi | 204 °C | -56 °C | Millivolt | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 10 to 15 Vac/Vdc | 0.01% rdg/°F | 0.01% rdg/°F, 0.01% FSO/°F | ± 2.5% | 350 Ω | Calibration up to 30k psi. Consult Sales for full scale price. | - | - | - | |
PX91P0-80KS5T가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | 3 m | 71 °C | 17 °C | Cable | 0 to 5 V | 0 to 5 Vdc ± 10% adj | 0.10% FS | 0.005 | 455 Stainless Steel | Sealed Gauge | 80000 psi | 0 psi | 121 °C | -46 °C | Voltage | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | 0.10% FS | 28 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 0 V ± 10% ADJ | - | 80% FSO | 28 Vdc ± 4 V | - | - | |
PX91P0-150KSI가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | 3 m | 71 °C | 17 °C | Cable | 4 to 20 mA | 4 to 20 mA ± 10% adj | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 150000 psi | 0 psi | 121 °C | -46 °C | Current | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 12 to 40 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 4 mA (+10%, -2% adj) | - | - | - | - | - | |
PX91P0-120KSV가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | 3 m | 218 °C | 21 °C | Cable | 1 mV/V | 1 mV/V ± 0.5% | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 120000 psi | 0 psi | 204 °C | -56 °C | Millivolt | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 10 to 15 Vac/Vdc | 0.01% rdg/°F | 0.01% rdg/°F, 0.01% FSO/°F | ± 2.5% | 350 Ω | Calibration up to 30k psi. Consult Sales for full scale price. | - | - | - | |
PX91P0-100KSV4,024,580 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | 3 m | 218 °C | 21 °C | Cable | 1 mV/V | 1 mV/V ± 0.5% | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 100000 psi | 0 psi | 204 °C | -56 °C | Millivolt | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 10 to 15 Vac/Vdc | 0.01% rdg/°F | 0.01% rdg/°F, 0.01% FSO/°F | ± 2.5% | 350 Ω | Calibration up to 30k psi. Consult Sales for full scale price. | - | - | - | |
PX91P0-120KSI가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | 3 m | 71 °C | 17 °C | Cable | 4 to 20 mA | 4 to 20 mA ± 10% adj | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 120000 psi | 0 psi | 121 °C | -46 °C | Current | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 12 to 40 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 4 mA (+10%, -2% adj) | - | - | - | - | - | |
PX91P0-100KSI가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | 3 m | 71 °C | 17 °C | Cable | 4 to 20 mA | 4 to 20 mA ± 10% adj | ± 0.10% FSO | ± 0.50% | 455 Stainless Steel | Sealed Gauge | 100000 psi | 0 psi | 121 °C | -46 °C | Current | 1-14 NS-2 (use 0.910" dia. 150° ferrule) | 1 in | High Pressure NS-2 | 110% Full Scale | 110% of rated pressure | ± 0.1% full scale | 12 to 40 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 4 mA (+10%, -2% adj) | - | - | - | - | - | |
PX91N1-60KS5T2,831,280 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | > 0.25% | 120% Full Scale | 120% of rated pressure | - | 71 °C | 17 °C | MIL-26482-I 10-6P | 0 to 5 V | 0 to 5 Vdc ± 10% adj | 0.10% FS | 0.0035 | 17-4 Stainless Steel | Sealed Gauge | 60000 psi | 0 psi | 121 °C | -46 °C | Voltage | 1/2-14 NPSM (fits 0.315" dia. 59° ferrule) | 1/2 in | High Pressure NPSM | 110% Full Scale | 110% of rated pressure | 0.10% FS | 28 Vdc | 0.005% rdg/°F | 0.005% rdg/°F, 0.005% FSO/°F | 0 V ± 10% ADJ | - | 80% FSO | 28 Vdc ± 4 V | MIL-26482-I 10-6S | - |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
