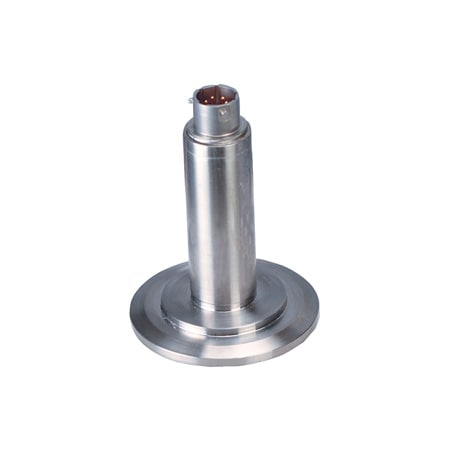

고정밀 위생 압력 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 223개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | ADC Resolution | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Bandwidth | Burst Pressure | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Enclosure Ratings | Fill Fluid | Insulation Resistance | Loop Resistance, Max | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Pressure Cycles | Process Connection Note | Process Connection Size | Process Connection Type | Proof Pressure | Response Time | Shock | Shunt Calibration Value | Span Setting Adjustable Range | Stability | Supply Power Note | Supply Voltage | Thermal Effect on Span error, Max | Thermal Effect on Zero error, Max | Vibration | Weight | Zero/Balance Error | Zero/Balance Error Note | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PXM459S15-001BG10V가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | None | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1 kHz | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | M12 4 pin Female | 0 to 10 V | IP65, IP67 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc | - | 316L Stainless Steel | Gauge | 1 bar | 0 bar | 115 °C | -15 °C | Voltage | 1 million | 1 1⁄2" and 2" Tri-GripTM (Tri-Clamp® compatible) Fitting: 40 bar using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | 15 to 30 Vdc | 0.005%/°F | 0.005%/°F | ± 20 g | 285 g | ± 0.5% | ± 0.5% FS typical ± 1% max (for ranges ≤ 5 psi ± 1% typ. ± 2% max) | |
PX409S15-015CGUSBH2,157,210 원20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Compound Gauge | 15 psi | -15 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S15-005CGUSBH2,313,500 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Compound Gauge | 5 psi | -5 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 1.00%, 0.01%/°F | 0.01%/°F, 1.00% | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PXM459S15-17.5BGI가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | None | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1 kHz | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | M12 4 pin Female | 4 to 20 mA | IP65, IP67 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc | (Vs-9) x 50 Ω | 316L Stainless Steel | Gauge | 17.5 bar | 0 bar | 115 °C | -15 °C | Current | 1 million | 1 1⁄2" and 2" Tri-GripTM (Tri-Clamp® compatible) Fitting: 40 bar using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | 9 to 30 Vdc [9 to 20 Vdc above 105°C (229°F)] | 9 to 30 Vdc | 0.005%/°F | 0.005%/°F | ± 20 g | 285 g | ± 0.5% | ± 0.5% FS typical ± 1% max (for ranges ≤ 5 psi ± 1% typ. ± 2% max) | |
PXM409S15-025HCGV가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | None | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1 kHz | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | 10 mV/V | IP65, IP67 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc | - | 316L Stainless Steel | Compound Gauge | 25 mBar | -25 mBar | 115 °C | -15 °C | Millivolt | 1 million | 1 1⁄2" and 2" Tri-GripTM (Tri-Clamp® compatible) Fitting: 40 bar using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | 5 to 10 Vdc | 0.005, 0.01%/°F | 0.01%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% FS typical ± 1% max (for ranges ≤ 5 psi ± 1% typ. ± 2% max) | |
PX459S20-2.5CG10V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | None | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1 kHz | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | M12 4 pin Female | ± 10 Vdc | IP65, IP67 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc | - | 316L Stainless Steel | Compound Gauge | 2.5 psi | -2.5 psi | 115 °C | -15 °C | Voltage | 1 million | 1 1⁄2" and 2" Tri-GripTM (Tri-Clamp® compatible) Fitting: 600 bar using suitable clamp | 2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | 15 to 30 Vdc | 0.005, 0.01%/°F | 0.01%/°F, 1.00% | ± 20 g | 285 g | ± 0.5% | ± 0.5% FS typical ± 1% max (for ranges ≤ 5 psi ± 1% typ. ± 2% max) | |
PX429S15-10WCG10V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | None | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1 kHz | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | MIL-26482-I 10-6P | ± 10 Vdc | IP65, IP67 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc | - | 316L Stainless Steel | Compound Gauge | 10 inH₂O | -10 inH₂O | 115 °C | -15 °C | Voltage | 1 million | 1 1⁄2" and 2" Tri-GripTM (Tri-Clamp® compatible) Fitting: 600 bar using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | 15 to 30 Vdc @ 10 mA | 15 to 30 Vdc | 0.01%/°F | 0.01%/°F | ± 20 g | 285 g | ± 0.5% | ± 0.5% FS typical ± 1% max (for ranges ≤ 5 psi ± 1% typ. ± 2% max) | |
PX409S20-500GUSBH가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Gauge | 500 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S20-500AUSBH가격 문의27 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Absolute | 500 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S20-250AUSBH가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Absolute | 250 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S20-150GUSBH가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Gauge | 150 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S20-050AUSBH가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Absolute | 50 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S20-030GUSBH가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Gauge | 30 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S15-600GUSBH1,840,810 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Gauge | 600 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S15-500AUSBH가격 문의25 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Absolute | 500 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S15-250GUSBH1,840,810 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Gauge | 250 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S15-250AUSBH1,912,760 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Absolute | 250 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S15-150AUSBH1,912,760 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Absolute | 150 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S15-10WGUSBH1,984,630 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Gauge | 10 inH₂O | 0 inH₂O | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.01%/°F | 0.01%/°F | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) | |
PX409S15-100GUSBH1,840,810 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24 bit | ± 0.08 % | < 0.1% | ± 0.08% best straight line (linearity, hysteresis and repeatability combined) compound gage models calibrated in positive direction only | None | DC to 1000 updates per second (± 3%) | 4x Full Scale to Maximum Rated Flange Pressure | 87.7 °C | -1.1 °C | Cable | USB | IP65 | NEOBEE M5 food grade | 100 MΩ @ 50 Vdc case to sensor; 2 MΩ @ 50 Vdc case to output terminations | - | 316L Stainless Steel | Gauge | 100 psi | 0 psi | 95 °C | -15 °C | Digital | 1 million, minimum | 1 1⁄2" and 2" Tri-GripTM Fitting: 600 psi using suitable clamp | 1 1/2 in | Tri-Clamp | 6x Full Scale up to 2000 psi | <1 ms | 50 g, 11 ms half sine (under test) | 5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction | ± 0.5% FS | ± 0.1% | - | - | 0.005, 0.005%/°F | 0.005%/°F, 0.005 | ± 20 g | 285 g | ± 0.5% | ± 0.5% full scale typical ± 1% maximum (± 1% typical, ± 2% maximum for 5 psi and below) |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
