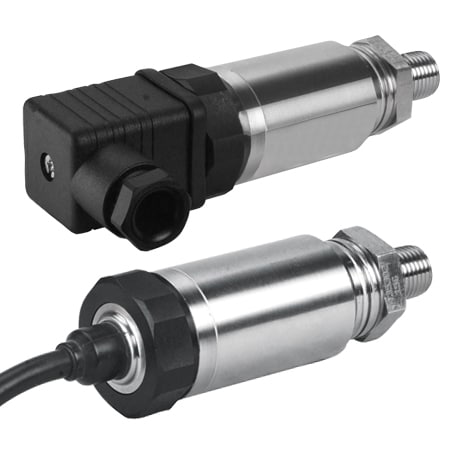

PX509-IS | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 126개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Additional Features 1	Applications	Bandwidth	Burst Pressure	Cable Length	Compensated Temperature, Max	Compensated Temperature, Min	Compliance	Electrical Connection	Electrical Output	Insulation Resistance	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Pressure Cycles	Process Connection Size	Process Connection Type	Proof Pressure	Response Time	Sensing Element	Shock	Stability	Supply Voltage	Thermal Effect on Span error, Max	Thermal Effect on Zero error, Max	Trim Pot Access	Vibration	Weight	Span Setting Adjustable Range	Zero Setting Adjustable Range
PX509CWP-005VC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-17 °C	RoHS 2	1/2 in NPT male Conduit with Submersible Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Vacuum	5 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 1.0% span	± 1.0% span, ± 1.0% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-2.5KGC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	7250 psi Maximum	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Gauge	2500 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-3.5KAC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	7250 psi Maximum	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Absolute	3500 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-1.0KGC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Gauge	1000 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-1.0KAC2IS가격 문의27 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Absolute	1000 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509C-015CGBC2IS가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Compound Gauge	15 psi	-15 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	None	± 20 g	315 g	-	-
PX559-2.5CGBC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	None	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	-	10 ft	75 °C	-17 °C	RoHS 2	M12 4 pin Female	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Compound Gauge	2 psi	-2 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 1.0% span	± 1.0% span, ± 1.0% span	Removeable Electrical Connection Cover	± 20 g	315 g	± 10% span	± 10% span
PX559-10WCGBC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	None	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	10x Full Scale	10 ft	75 °C	-17 °C	RoHS 2	M12 4 pin Female	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Compound Gauge	10 inH₂O	-10 inH₂O	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 1.0% span	± 1.0% span, ± 1.0% span	Removeable Electrical Connection Cover	± 20 g	315 g	± 10% span	± 10% span
PX509CW-2.5GC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-17 °C	RoHS 2	1/2 in NPT male Conduit with Submersible Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Gauge	2.5 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 1.0% span	± 1.0% span, ± 1.0% span	None	± 20 g	315 g	-	-
PX559-015CGBC2IS가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	None	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	M12 4 pin Female	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Compound Gauge	15 psi	-15 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	Removeable Electrical Connection Cover	± 20 g	315 g	± 10% span	± 10% span
PX509CP-500GC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Gauge	500 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-250GC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Gauge	250 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-150GC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Gauge	150 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-100GC2IS가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Gauge	100 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-050GC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Gauge	50 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-015VC2IS가격 문의25 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Vacuum	15 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-030GC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Gauge	30 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-015GC2IS가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	4x Full Scale	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Gauge	15 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509CP-005AC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit Trim Pots	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	6x Full Scale	10 ft	75 °C	-17 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Absolute	5 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 1.0% span	± 1.0% span, ± 1.0% span	O-ring sealed screws on side cover	± 20 g	315 g	-	-
PX509C-3.5KAC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 %	< 0.1%	± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below	1/2" Conduit	Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing	DC to 1 kHz	7250 psi Maximum	10 ft	75 °C	-29 °C	RoHS 2	1/2 in NPT male Conduit with Cable	4 to 20 mA	100 MΩ @ 50 Vdc	316L Stainless Steel	Absolute	3500 psi	0 psi	75 °C	-40 °C	Current	1 million, minimum	1/4 in	NPT Male	Up to 1000 psi	<1 ms	Oil filled Piezoresistive MEMS	50 g, 11 ms half-sine	± 0.1%	10 to 28 Vdc	± 0.5% span	± 0.5% span, ± 0.5% span	None	± 20 g	315 g	-	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Additional Features 1

Applications

Bandwidth

Burst Pressure

Cable Length

Compensated Temperature, Max

Compensated Temperature, Min

Compliance

Electrical Connection

Electrical Output

Insulation Resistance

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Pressure Cycles

Process Connection Size

Process Connection Type

Proof Pressure

Response Time

Sensing Element

Shock

Stability

Supply Voltage

Thermal Effect on Span error, Max

Thermal Effect on Zero error, Max

Trim Pot Access

Vibration

Weight

Span Setting Adjustable Range

Zero Setting Adjustable Range

수량 / 장바구니

PX509CWP-005VC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

± 0.08% BSL maximum (other accuracies available) For conduit (C and CW) zero and span set ± 0.5% full scale typical ± 1% maximum or set ± 1% full scale typical ± 2% maximum ranges 2.5 psi and below

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-17 °C

RoHS 2

1/2 in NPT male Conduit with Submersible Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Vacuum

5 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 1.0% span

± 1.0% span, ± 1.0% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-2.5KGC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

7250 psi Maximum

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Gauge

2500 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-3.5KAC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

7250 psi Maximum

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Absolute

3500 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-1.0KGC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Gauge

1000 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-1.0KAC2IS가격 문의27 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Absolute

1000 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509C-015CGBC2IS가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Compound Gauge

15 psi

-15 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

None

± 20 g

315 g

PX559-2.5CGBC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

None

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

10 ft

75 °C

-17 °C

RoHS 2

M12 4 pin Female

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Compound Gauge

2 psi

-2 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 1.0% span

± 1.0% span, ± 1.0% span

Removeable Electrical Connection Cover

± 20 g

315 g

± 10% span

PX559-10WCGBC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

None

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

10x Full Scale

10 ft

75 °C

-17 °C

RoHS 2

M12 4 pin Female

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Compound Gauge

10 inH₂O

-10 inH₂O

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 1.0% span

± 1.0% span, ± 1.0% span

Removeable Electrical Connection Cover

± 20 g

315 g

± 10% span

PX509CW-2.5GC2IS가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-17 °C

RoHS 2

1/2 in NPT male Conduit with Submersible Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Gauge

2.5 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 1.0% span

± 1.0% span, ± 1.0% span

None

± 20 g

315 g

PX559-015CGBC2IS가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

None

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

M12 4 pin Female

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Compound Gauge

15 psi

-15 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

Removeable Electrical Connection Cover

± 20 g

315 g

± 10% span

PX509CP-500GC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Gauge

500 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-250GC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Gauge

250 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-150GC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Gauge

150 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-100GC2IS가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Gauge

100 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-050GC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Gauge

50 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-015VC2IS가격 문의25 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Vacuum

15 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-030GC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Gauge

30 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-015GC2IS가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

4x Full Scale

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Gauge

15 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509CP-005AC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit Trim Pots

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

6x Full Scale

10 ft

75 °C

-17 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Absolute

5 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 1.0% span

± 1.0% span, ± 1.0% span

O-ring sealed screws on side cover

± 20 g

315 g

PX509C-3.5KAC2IS가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.08 %

< 0.1%

1/2" Conduit

Chemicals, Energy Generation and Distribution, Fuel and Gas, Hydraulic and Pneumatic Systems, Industrial and Manufacturing

DC to 1 kHz

7250 psi Maximum

10 ft

75 °C

-29 °C

RoHS 2

1/2 in NPT male Conduit with Cable

4 to 20 mA

100 MΩ @ 50 Vdc

316L Stainless Steel

Absolute

3500 psi

0 psi

75 °C

-40 °C

Current

1 million, minimum

1/4 in

NPT Male

Up to 1000 psi

<1 ms

Oil filled Piezoresistive MEMS

50 g, 11 ms half-sine

± 0.1%

10 to 28 Vdc

± 0.5% span

± 0.5% span, ± 0.5% span

None

± 20 g

315 g
