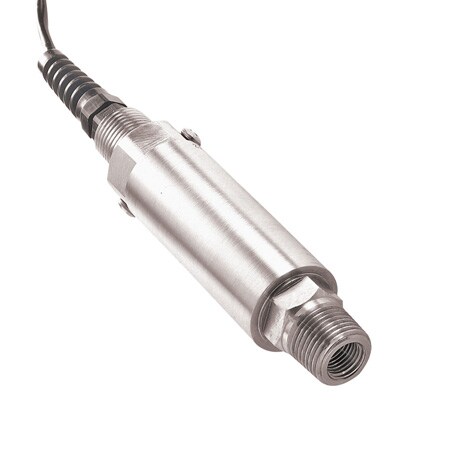

중장비용, MSHA 승인 압력 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 9개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Burst Pressure | Burst Pressure Note | Cable Length | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Electrical Output Note | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Note | Process Connection Size | Process Connection Type | Proof Pressure | Sensing Element | Sensing Element Note | Supply Voltage | Thermal Effect on Span error, Max | Thermal Effect on Zero error, Max | Zero/Balance Error | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX41T0-500GI-MSHA가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | 0.25% FS linearity and hysteresis combined | Mine Safety and Health Admin | 3x Full Scale | 300% of rated pressure | 10 in | 71 °C | 16 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA ± 10% adj | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 500 psi | 0 psi | 121 °C | -47 °C | Current | <10,000 psi 1⁄2-14 NPT external and 1⁄4-18 NPT internal 10,000 F250C autoclave 9⁄16-18 thread | 1/2 in x 1/4 in | NPT Male and Female | 150% Full Scale | 4-active-arm Strain Gauge Bridge | 4-active-arm bridge with hermetically sealed thick-film strain gages | 10 to 40 Vdc | 0.003% of rdg/°F | 0.003% of rdg/°F, 0.003% of rdg/°F | 4 mA (+10%, -2% adj) | |
PX41T0-200GI-MSHA가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | 0.25% FS linearity and hysteresis combined | Mine Safety and Health Admin | 3x Full Scale | 300% of rated pressure | 10 in | 71 °C | 16 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA ± 10% adj | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 200 psi | 0 psi | 121 °C | -47 °C | Current | <10,000 psi 1⁄2-14 NPT external and 1⁄4-18 NPT internal 10,000 F250C autoclave 9⁄16-18 thread | 1/2 in x 1/4 in | NPT Male and Female | 150% Full Scale | 4-active-arm Strain Gauge Bridge | 4-active-arm bridge with hermetically sealed thick-film strain gages | 10 to 40 Vdc | 0.003% of rdg/°F | 0.003% of rdg/°F, 0.003% of rdg/°F | 4 mA (+10%, -2% adj) | |
PX41T0-050GI-MSHA가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | 0.25% FS linearity and hysteresis combined | Mine Safety and Health Admin | 3x Full Scale | 300% of rated pressure | 10 in | 71 °C | 16 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA ± 10% adj | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 50 psi | 0 psi | 121 °C | -47 °C | Current | <10,000 psi 1⁄2-14 NPT external and 1⁄4-18 NPT internal 10,000 F250C autoclave 9⁄16-18 thread | 1/2 in x 1/4 in | NPT Male and Female | 150% Full Scale | 4-active-arm Strain Gauge Bridge | 4-active-arm bridge with hermetically sealed thick-film strain gages | 10 to 40 Vdc | 0.003% of rdg/°F | 0.003% of rdg/°F, 0.003% of rdg/°F | 4 mA (+10%, -2% adj) | |
PX41T0-100GI-MSHA가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | 0.25% FS linearity and hysteresis combined | Mine Safety and Health Admin | 3x Full Scale | 300% of rated pressure | 10 in | 71 °C | 16 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA ± 10% adj | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 100 psi | 0 psi | 121 °C | -47 °C | Current | <10,000 psi 1⁄2-14 NPT external and 1⁄4-18 NPT internal 10,000 F250C autoclave 9⁄16-18 thread | 1/2 in x 1/4 in | NPT Male and Female | 150% Full Scale | 4-active-arm Strain Gauge Bridge | 4-active-arm bridge with hermetically sealed thick-film strain gages | 10 to 40 Vdc | 0.003% of rdg/°F | 0.003% of rdg/°F, 0.003% of rdg/°F | 4 mA (+10%, -2% adj) | |
PX41T0-030GI-MSHA가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | 0.25% FS linearity and hysteresis combined | Mine Safety and Health Admin | 3x Full Scale | 300% of rated pressure | 10 in | 71 °C | 16 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA ± 10% adj | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 30 psi | 0 psi | 121 °C | -47 °C | Current | <10,000 psi 1⁄2-14 NPT external and 1⁄4-18 NPT internal 10,000 F250C autoclave 9⁄16-18 thread | 1/2 in x 1/4 in | NPT Male and Female | 150% Full Scale | 4-active-arm Strain Gauge Bridge | 4-active-arm bridge with hermetically sealed thick-film strain gages | 10 to 40 Vdc | 0.003% of rdg/°F | 0.003% of rdg/°F, 0.003% of rdg/°F | 4 mA (+10%, -2% adj) | |
PX41T0-010GI-MSHA가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | 0.25% FS linearity and hysteresis combined | Mine Safety and Health Admin | 3x Full Scale | 300% of rated pressure | 10 in | 71 °C | 16 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA ± 10% adj | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 10 bar | 0 bar | 121 °C | -47 °C | Current | <10,000 psi 1⁄2-14 NPT external and 1⁄4-18 NPT internal 10,000 F250C autoclave 9⁄16-18 thread | 1/2 in x 1/4 in | NPT Male and Female | 150% Full Scale | 4-active-arm Strain Gauge Bridge | 4-active-arm bridge with hermetically sealed thick-film strain gages | 10 to 40 Vdc | 0.003% of rdg/°F | 0.003% of rdg/°F, 0.003% of rdg/°F | 4 mA (+10%, -2% adj) | |
PX41S0-10KGI-MSHA가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | 0.25% FS linearity and hysteresis combined | Mine Safety and Health Admin | 3x Full Scale | 300% of rated pressure | 10 in | 71 °C | 16 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA ± 10% adj | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 10000 psi | 0 psi | 121 °C | -47 °C | Current | <10,000 psi 1⁄2-14 NPT external and 1⁄4-18 NPT internal 10,000 F250C autoclave 9⁄16-18 thread | 1/4 in | High Pressure F-250-C | 150% Full Scale | 4-active-arm Strain Gauge Bridge | 4-active-arm bridge with hermetically sealed thick-film strain gages | 10 to 40 Vdc | 0.003% of rdg/°F | 0.003% of rdg/°F, 0.003% of rdg/°F | 4 mA (+10%, -2% adj) | |
PX41C0-075SI-MSHA가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | 0.25% FS linearity and hysteresis combined | Mine Safety and Health Admin | 3x Full Scale | 300% of rated pressure | 10 in | 71 °C | 16 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA ± 10% adj | 17-4 Stainless Steel, 316 Stainless Steel | Sealed Gauge | 75 psi | 0 psi | 121 °C | -47 °C | Current | <10,000 psi 1⁄2-14 NPT external and 1⁄4-18 NPT internal 10,000 F250C autoclave 9⁄16-18 thread | 1/4 in | NPT Male | 150% Full Scale | 4-active-arm Strain Gauge Bridge | 4-active-arm bridge with hermetically sealed thick-film strain gages | 10 to 40 Vdc | 0.003% of rdg/°F | 0.003% of rdg/°F, 0.003% of rdg/°F | 4 mA (+10%, -2% adj) | |
PX41T0-5KGI-MSHA가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | 0.25% FS linearity and hysteresis combined | Mine Safety and Health Admin | 3x Full Scale | 300% of rated pressure | 10 in | 71 °C | 16 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA ± 10% adj | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 5000 psi | 0 psi | 121 °C | -47 °C | Current | <10,000 psi 1⁄2-14 NPT external and 1⁄4-18 NPT internal 10,000 F250C autoclave 9⁄16-18 thread | 1/2 in x 1/4 in | NPT Male and Female | 150% Full Scale | 4-active-arm Strain Gauge Bridge | 4-active-arm bridge with hermetically sealed thick-film strain gages | 10 to 40 Vdc | 0.003% of rdg/°F | 0.003% of rdg/°F, 0.003% of rdg/°F | 4 mA (+10%, -2% adj) |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
