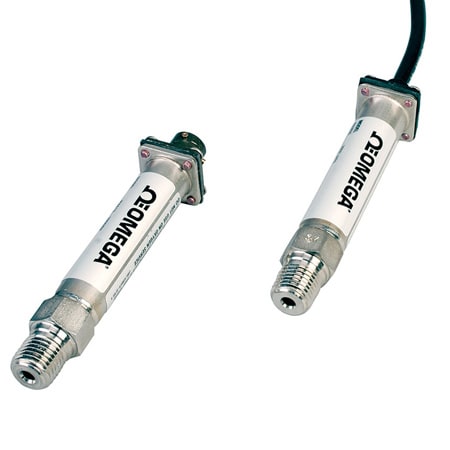

조정 가능한 영점 및 스팬을 갖춘 범용 압력 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 112개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Burst Pressure | Burst Pressure Note | Cable Length | Compensated Temperature, Max | Compensated Temperature, Min | Current Draw | Electrical Connection | Electrical Output | Electrical Output Note | Enclosure Material | Gauge Type | Hysteresis | Insulation Resistance | Mating Connector | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Pressure Cycles | Process Connection Size | Process Connection Type | Proof Pressure | Proof Pressure Note | Repeatability Error | Response Time | Stability | Supply Power Note | Supply Voltage | Thermal Effect on Span error, Max | Thermal Effect on Zero error, Max | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX613-30V60G5V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 60 psi | -15 psi | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX613-30V30G5V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 30 psi | -15 psi | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX613-30V15G5V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 15 psi | -15 psi | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX603-30V60G5V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | Cable | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 60 psi | -15 psi | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX603-30V15G5V1,353,610 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | Cable | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 15 psi | -15 psi | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX603-30V30G5V가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | Cable | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 30 psi | -15 psi | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX615-30V60GI가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 4 to 20 mA | None | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 60 psi | -15 psi | 90 °C | -48 °C | Current | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX615-30V30GI가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 4 to 20 mA | None | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 30 psi | -15 psi | 90 °C | -48 °C | Current | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX615-30V15GI가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 4 to 20 mA | None | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 15 psi | -15 psi | 90 °C | -48 °C | Current | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX613-7.5KG5V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 500% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Gauge | 7500 psi | 0 psi | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | 120% Full Scale | 120% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX605-30V60GI1,324,810 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | Cable | 4 to 20 mA | None | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 60 psi | -15 psi | 90 °C | -48 °C | Current | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX613-30VAC5V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | - | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Vacuum | -30 inHg | 0 inHg | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | - | - | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX605-30V30GI1,217,510 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | Cable | 4 to 20 mA | None | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 30 psi | -15 psi | 90 °C | -48 °C | Current | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX605-30V15GI1,217,510 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | Cable | 4 to 20 mA | None | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Compound Gauge | 15 psi | -15 psi | 90 °C | -48 °C | Current | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX603-7.5KG5V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 500% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | Cable | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Gauge | 7500 psi | 0 psi | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | 120% Full Scale | 120% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX615-7.5KGI1,229,040 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 500% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 4 to 20 mA | None | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Gauge | 7500 psi | 0 psi | 90 °C | -48 °C | Current | 100 million | 1/4 in | NPT Male | 120% Full Scale | 120% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX603-30VAC5V1,353,610 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | - | 0.9 m | 82 °C | -29 °C | <3.0 mA | Cable | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Vacuum | -30 inHg | 0 inHg | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | - | - | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX615-30VACI1,363,050 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | - | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 4 to 20 mA | None | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Vacuum | -30 inHg | 0 inHg | 90 °C | -48 °C | Current | 100 million | 1/4 in | NPT Male | - | - | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX613-500G5V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Gauge | 500 psi | 0 psi | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g | |
PX613-300G5V1,324,810 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.4 % | > 0.25% | ± 0.4% BFSL | None | 8x Full Scale | 800% FS | 0.9 m | 82 °C | -29 °C | <3.0 mA | MIL-26482-I 8-4P | 1 to 5 V | 1 to 5 Vdc (3 wire) | 17-4 PH Stainless Steel | Thin-film polysilicone Piezoresistive | ± 0.2% | 100 MΩ | MIL-26482-I 8-4S | Gauge | 300 psi | 0 psi | 90 °C | -48 °C | Voltage | 100 million | 1/4 in | NPT Male | 2x Full Scale | 200% FS | ± 0.05% full scale | 5 ms | ± 1.0% | 10 to 36 Vdc unregulated | 10 to 36 Vdc | ± 0.07% FS/°C | ± 0.07% FS/°C , ± 0.07% FS/°C | 128 g |
