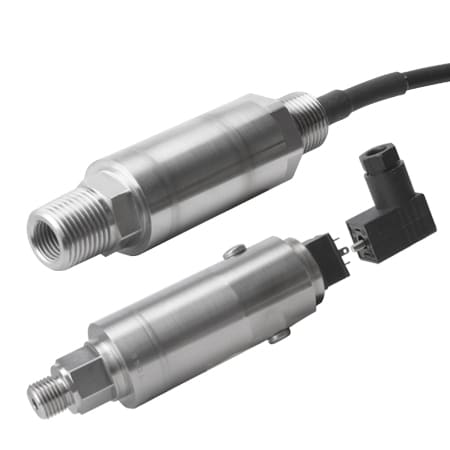

PX51-IS | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 8개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Additional Features 1	Burst Pressure	Burst Pressure Note	Cable Length	Compensated Temperature, Max	Compensated Temperature, Min	Electrical Connection	Electrical Output	Insulation Resistance	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Process Connection Size	Process Connection Type	Span Setting Adjustable Range	Supply Voltage	Thermal Effect on Zero error, Max	Trim Pot Access	Zero Setting Adjustable Range	Additional Features 2
PX51TGW-2.5KAC2ISNP가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	0.25% FS linearity and hysteresis combined	Intrinsically Safe IS FM Approval No Potentiometer	150% Full Scale	3X Range	-	71 °C	16 °C	1/2 in NPT male Conduit with Submersible Cable	4 to 20 mA	100 MΩ @ 50 Vdc	17-4 Stainless Steel	Absolute	2500 psi	104 °C	-40 °C	Current	1/2 in x 1/4 in	NPT Male and Female	-	10 to 32 Vdc	0.003% of rdg/°F ,	None	-	No Potentiometer
PX51J6-7.5KAC2ISNP가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	0.25% FS linearity and hysteresis combined	Intrinsically Safe IS FM Approval No Potentiometer	150% Full Scale	3X Range	-	71 °C	16 °C	DIN 43650 C (solenoid valve)	4 to 20 mA	100 MΩ @ 50 Vdc	17-4 Stainless Steel	Absolute	7500 psi	104 °C	-40 °C	Current	7/16 in	UNF Male	-	10 to 32 Vdc	0.003% of rdg/°F ,	None	-	No Potentiometer
PX51C5-3.5KGC2ISNP가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	0.25% FS linearity and hysteresis combined	Intrinsically Safe IS FM Approval No Potentiometer	150% Full Scale	3X Range	-	71 °C	16 °C	M12 4 pin Female	4 to 20 mA	100 MΩ @ 50 Vdc	17-4 Stainless Steel	Gauge	3500 psi	104 °C	-40 °C	Current	1/4 in	NPT Male	-	10 to 32 Vdc	0.003% of rdg/°F ,	None	-	No Potentiometer
PX51C6-1.5KGC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	0.25% FS linearity and hysteresis combined	Intrinsically Safe IS FM Approval	150% Full Scale	3X Range	-	71 °C	16 °C	DIN 43650 C (solenoid valve)	4 to 20 mA	100 MΩ @ 50 Vdc	17-4 Stainless Steel	Gauge	1500 psi	104 °C	-40 °C	Current	1/4 in	NPT Male	± 10% FS	10 to 32 Vdc	0.003% of rdg/°F ,	O-ring sealed screws on side cover	± 10% FS	-
PX51T5-7.5KGC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	0.25% FS linearity and hysteresis combined	Intrinsically Safe IS FM Approval	150% Full Scale	3X Range	-	71 °C	16 °C	M12 4 pin Female	4 to 20 mA	100 MΩ @ 50 Vdc	17-4 Stainless Steel	Gauge	7500 psi	104 °C	-40 °C	Current	1/2 in x 1/4 in	NPT Male and Female	± 10% FS	10 to 32 Vdc	0.003% of rdg/°F ,	O-ring sealed screws on side cover	± 10% FS	-
PX51C5-3.5KGC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	0.25% FS linearity and hysteresis combined	Intrinsically Safe IS FM Approval	150% Full Scale	3X Range	-	71 °C	16 °C	M12 4 pin Female	4 to 20 mA	100 MΩ @ 50 Vdc	17-4 Stainless Steel	Gauge	3500 psi	104 °C	-40 °C	Current	1/4 in	NPT Male	± 10% FS	10 to 32 Vdc	0.003% of rdg/°F ,	O-ring sealed screws on side cover	± 10% FS	-
PX51C1-1.5KGC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	0.25% FS linearity and hysteresis combined	Intrinsically Safe IS FM Approval	150% Full Scale	3X Range	-	71 °C	16 °C	MIL-26482-I 10-6P	4 to 20 mA	100 MΩ @ 50 Vdc	17-4 Stainless Steel	Gauge	1500 psi	104 °C	-40 °C	Current	1/4 in	NPT Male	± 10% FS	10 to 32 Vdc	0.003% of rdg/°F ,	O-ring sealed screws on side cover	± 10% FS	-
PX51C0-1.5KGC2IS가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	0.25% FS linearity and hysteresis combined	Intrinsically Safe IS FM Approval	150% Full Scale	3X Range	3 m	71 °C	16 °C	Cable	4 to 20 mA	100 MΩ @ 50 Vdc	17-4 Stainless Steel	Gauge	1500 psi	104 °C	-40 °C	Current	1/4 in	NPT Male	± 10% FS	10 to 32 Vdc	0.003% of rdg/°F ,	O-ring sealed screws on side cover	± 10% FS	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Additional Features 1

Burst Pressure

Burst Pressure Note

Cable Length

Compensated Temperature, Max

Compensated Temperature, Min

Electrical Connection

Electrical Output

Insulation Resistance

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Process Connection Size

Process Connection Type

Span Setting Adjustable Range

Supply Voltage

Thermal Effect on Zero error, Max

Trim Pot Access

Zero Setting Adjustable Range

Additional Features 2

수량 / 장바구니

PX51TGW-2.5KAC2ISNP가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

0.25% FS linearity and hysteresis combined

Intrinsically Safe IS FM Approval No Potentiometer

150% Full Scale

3X Range

71 °C

16 °C

1/2 in NPT male Conduit with Submersible Cable

4 to 20 mA

100 MΩ @ 50 Vdc

17-4 Stainless Steel

Absolute

2500 psi

0 psi

104 °C

-40 °C

Current

1/2 in x 1/4 in

NPT Male and Female

10 to 32 Vdc

0.003% of rdg/°F ,

None

No Potentiometer

PX51J6-7.5KAC2ISNP가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

0.25% FS linearity and hysteresis combined

Intrinsically Safe IS FM Approval No Potentiometer

150% Full Scale

3X Range

71 °C

16 °C

DIN 43650 C (solenoid valve)

4 to 20 mA

100 MΩ @ 50 Vdc

17-4 Stainless Steel

Absolute

7500 psi

0 psi

104 °C

-40 °C

Current

7/16 in

UNF Male

10 to 32 Vdc

0.003% of rdg/°F ,

None

No Potentiometer

PX51C5-3.5KGC2ISNP가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

0.25% FS linearity and hysteresis combined

Intrinsically Safe IS FM Approval No Potentiometer

150% Full Scale

3X Range

71 °C

16 °C

M12 4 pin Female

4 to 20 mA

100 MΩ @ 50 Vdc

17-4 Stainless Steel

Gauge

3500 psi

0 psi

104 °C

-40 °C

Current

1/4 in

NPT Male

10 to 32 Vdc

0.003% of rdg/°F ,

None

No Potentiometer

PX51C6-1.5KGC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

0.25% FS linearity and hysteresis combined

Intrinsically Safe IS FM Approval

150% Full Scale

3X Range

71 °C

16 °C

DIN 43650 C (solenoid valve)

4 to 20 mA

100 MΩ @ 50 Vdc

17-4 Stainless Steel

Gauge

1500 psi

0 psi

104 °C

-40 °C

Current

1/4 in

NPT Male

± 10% FS

10 to 32 Vdc

0.003% of rdg/°F ,

O-ring sealed screws on side cover

± 10% FS

PX51T5-7.5KGC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

0.25% FS linearity and hysteresis combined

Intrinsically Safe IS FM Approval

150% Full Scale

3X Range

71 °C

16 °C

M12 4 pin Female

4 to 20 mA

100 MΩ @ 50 Vdc

17-4 Stainless Steel

Gauge

7500 psi

0 psi

104 °C

-40 °C

Current

1/2 in x 1/4 in

NPT Male and Female

± 10% FS

10 to 32 Vdc

0.003% of rdg/°F ,

O-ring sealed screws on side cover

± 10% FS

PX51C5-3.5KGC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

0.25% FS linearity and hysteresis combined

Intrinsically Safe IS FM Approval

150% Full Scale

3X Range

71 °C

16 °C

M12 4 pin Female

4 to 20 mA

100 MΩ @ 50 Vdc

17-4 Stainless Steel

Gauge

3500 psi

0 psi

104 °C

-40 °C

Current

1/4 in

NPT Male

± 10% FS

10 to 32 Vdc

0.003% of rdg/°F ,

O-ring sealed screws on side cover

± 10% FS

PX51C1-1.5KGC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

0.25% FS linearity and hysteresis combined

Intrinsically Safe IS FM Approval

150% Full Scale

3X Range

71 °C

16 °C

MIL-26482-I 10-6P

4 to 20 mA

100 MΩ @ 50 Vdc

17-4 Stainless Steel

Gauge

1500 psi

0 psi

104 °C

-40 °C

Current

1/4 in

NPT Male

± 10% FS

10 to 32 Vdc

0.003% of rdg/°F ,

O-ring sealed screws on side cover

± 10% FS

PX51C0-1.5KGC2IS가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

0.25% FS linearity and hysteresis combined

Intrinsically Safe IS FM Approval

150% Full Scale

3X Range

3 m

71 °C

16 °C

Cable

4 to 20 mA

100 MΩ @ 50 Vdc

17-4 Stainless Steel

Gauge

1500 psi

0 psi

104 °C

-40 °C

Current

1/4 in

NPT Male

± 10% FS

10 to 32 Vdc

0.003% of rdg/°F ,

O-ring sealed screws on side cover

± 10% FS
