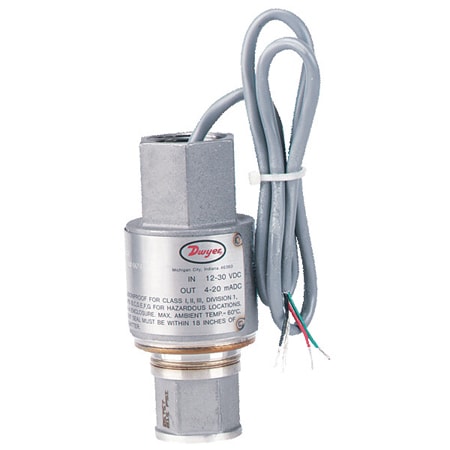

고정 범위 압력 변환기, 스테인리스강(SS), ±0.30% 정확도, 방폭형
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 7개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Applications | Compensated Temperature, Max | Compensated Temperature, Min | Compliance | Compliance Note | Electrical Connection | Electrical Output | Enclosure Ratings | Fill Fluid | Loop Resistance | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Proof Pressure | Span Adjustment | Stability | Supply Power Note | Supply Power Type | Supply Voltage | Thermal Effects | Weight | Wire Gauge | Zero Setting Adjustable Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
636-7가격 문의30 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.3 % | ± 0.30% of calibrated span including linearity hysteresis and repeatability (BFSL) at 25°C (77°F) and 12 VDC excitation | Oil and Gas | 180 °F | -20 °F | CSA, FM | FM and CSA approved explosion-proof for Class I, Division 1, Groups B, C, and D, Class II Groups E, F, and G Class III | 3/4 in NPT female Conduit with Cable | 4 to 20 mA | IP56, NEMA Type 4 | DC 200 silicone oil | 900 Ω max @ 30 V | 316L Stainless Steel | Gauge | 60 psi | 0 psi | Air, Gases, Nitrogen, Oil, Oxygen, Solvents, Water | 140 °F | -40 °F | 4 to 20 mA DC, limited to 30 mA DC | Current | 1/2 in | NPT Female | 212 °F | -40 °F | Up to 45 psi | ± 0.16 mA | ± 0.5% of upper range limit for six months | 12-30 VDC (636), 8-14 VDC (636LP), reverse polarity protection | DC | 12 to 30 Vdc | ± 2.0%/50°F (includes zero and span). Between -20 and 180°F (-29 and 82°C). ± 2.0% per 50°F (28°C). | 374 g | 22 AWG | ± 0.32 mA | |
636-6가격 문의32 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.3 % | ± 0.30% of calibrated span including linearity hysteresis and repeatability (BFSL) at 25°C (77°F) and 12 VDC excitation | Oil and Gas | 180 °F | -20 °F | CSA, FM | FM and CSA approved explosion-proof for Class I, Division 1, Groups B, C, and D, Class II Groups E, F, and G Class III | 3/4 in NPT female Conduit with Cable | 4 to 20 mA | IP56, NEMA Type 4 | DC 200 silicone oil | 900 Ω max @ 30 V | 316L Stainless Steel | Gauge | 5000 psi | 0 psi | Air, Gases, Nitrogen, Oil, Oxygen, Solvents, Water | 140 °F | -40 °F | 4 to 20 mA DC, limited to 30 mA DC | Current | 1/2 in | NPT Female | 212 °F | -40 °F | Up to 45 psi | ± 0.16 mA | ± 0.5% of upper range limit for six months | 12-30 VDC (636), 8-14 VDC (636LP), reverse polarity protection | DC | 12 to 30 Vdc | ± 2.0%/50°F (includes zero and span). Between -20 and 180°F (-29 and 82°C). ± 2.0% per 50°F (28°C). | 374 g | 22 AWG | ± 0.32 mA | |
636-4가격 문의30 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.3 % | ± 0.30% of calibrated span including linearity hysteresis and repeatability (BFSL) at 25°C (77°F) and 12 VDC excitation | Oil and Gas | 180 °F | -20 °F | CSA, FM | FM and CSA approved explosion-proof for Class I, Division 1, Groups B, C, and D, Class II Groups E, F, and G Class III | 3/4 in NPT female Conduit with Cable | 4 to 20 mA | IP56, NEMA Type 4 | DC 200 silicone oil | 900 Ω max @ 30 V | 316L Stainless Steel | Gauge | 1000 psi | 0 psi | Air, Gases, Nitrogen, Oil, Oxygen, Solvents, Water | 140 °F | -40 °F | 4 to 20 mA DC, limited to 30 mA DC | Current | 1/2 in | NPT Female | 212 °F | -40 °F | Up to 45 psi | ± 0.16 mA | ± 0.5% of upper range limit for six months | 12-30 VDC (636), 8-14 VDC (636LP), reverse polarity protection | DC | 12 to 30 Vdc | ± 2.0%/50°F (includes zero and span). Between -20 and 180°F (-29 and 82°C). ± 2.0% per 50°F (28°C). | 374 g | 22 AWG | ± 0.32 mA | |
636-1가격 문의32 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.3 % | ± 0.30% of calibrated span including linearity hysteresis and repeatability (BFSL) at 25°C (77°F) and 12 VDC excitation | Oil and Gas | 180 °F | -20 °F | CSA, FM | FM and CSA approved explosion-proof for Class I, Division 1, Groups B, C, and D, Class II Groups E, F, and G Class III | 3/4 in NPT female Conduit with Cable | 4 to 20 mA | IP56, NEMA Type 4 | DC 200 silicone oil | 900 Ω max @ 30 V | 316L Stainless Steel | Gauge | 30 psi | 0 psi | Air, Gases, Nitrogen, Oil, Oxygen, Solvents, Water | 140 °F | -40 °F | 4 to 20 mA DC, limited to 30 mA DC | Current | 1/2 in | NPT Female | 212 °F | -40 °F | Up to 45 psi | ± 0.16 mA | ± 0.5% of upper range limit for six months | 12-30 VDC (636), 8-14 VDC (636LP), reverse polarity protection | DC | 12 to 30 Vdc | ± 2.0%/50°F (includes zero and span). Between -20 and 180°F (-29 and 82°C). ± 2.0% per 50°F (28°C). | 374 g | 22 AWG | ± 0.32 mA | |
636-3가격 문의32 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.3 % | ± 0.30% of calibrated span including linearity hysteresis and repeatability (BFSL) at 25°C (77°F) and 12 VDC excitation | Oil and Gas | 180 °F | -20 °F | CSA, FM | FM and CSA approved explosion-proof for Class I, Division 1, Groups B, C, and D, Class II Groups E, F, and G Class III | 3/4 in NPT female Conduit with Cable | 4 to 20 mA | IP56, NEMA Type 4 | DC 200 silicone oil | 900 Ω max @ 30 V | 316L Stainless Steel | Gauge | 300 psi | 0 psi | Air, Gases, Nitrogen, Oil, Oxygen, Solvents, Water | 140 °F | -40 °F | 4 to 20 mA DC, limited to 30 mA DC | Current | 1/2 in | NPT Female | 212 °F | -40 °F | Up to 45 psi | ± 0.16 mA | ± 0.5% of upper range limit for six months | 12-30 VDC (636), 8-14 VDC (636LP), reverse polarity protection | DC | 12 to 30 Vdc | ± 2.0%/50°F (includes zero and span). Between -20 and 180°F (-29 and 82°C). ± 2.0% per 50°F (28°C). | 374 g | 22 AWG | ± 0.32 mA | |
636-0가격 문의32 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.3 % | ± 0.30% of calibrated span including linearity hysteresis and repeatability (BFSL) at 25°C (77°F) and 12 VDC excitation | Oil and Gas | 180 °F | -20 °F | CSA, FM | FM and CSA approved explosion-proof for Class I, Division 1, Groups B, C, and D, Class II Groups E, F, and G Class III | 3/4 in NPT female Conduit with Cable | 4 to 20 mA | IP56, NEMA Type 4 | DC 200 silicone oil | 900 Ω max @ 30 V | 316L Stainless Steel | Gauge | 15 psi | 0 psi | Air, Gases, Nitrogen, Oil, Oxygen, Solvents, Water | 140 °F | -40 °F | 4 to 20 mA DC, limited to 30 mA DC | Current | 1/2 in | NPT Female | 212 °F | -40 °F | Up to 45 psi | ± 0.16 mA | ± 0.5% of upper range limit for six months | 12-30 VDC (636), 8-14 VDC (636LP), reverse polarity protection | DC | 12 to 30 Vdc | ± 2.0%/50°F (includes zero and span). Between -20 and 180°F (-29 and 82°C). ± 2.0% per 50°F (28°C). | 374 g | 22 AWG | ± 0.32 mA | |
636-2가격 문의32 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.3 % | ± 0.30% of calibrated span including linearity hysteresis and repeatability (BFSL) at 25°C (77°F) and 12 VDC excitation | Oil and Gas | 180 °F | -20 °F | CSA, FM | FM and CSA approved explosion-proof for Class I, Division 1, Groups B, C, and D, Class II Groups E, F, and G Class III | 3/4 in NPT female Conduit with Cable | 4 to 20 mA | IP56, NEMA Type 4 | DC 200 silicone oil | 900 Ω max @ 30 V | 316L Stainless Steel | Gauge | 100 psi | 0 psi | Air, Gases, Nitrogen, Oil, Oxygen, Solvents, Water | 140 °F | -40 °F | 4 to 20 mA DC, limited to 30 mA DC | Current | 1/2 in | NPT Female | 212 °F | -40 °F | Up to 45 psi | ± 0.16 mA | ± 0.5% of upper range limit for six months | 12-30 VDC (636), 8-14 VDC (636LP), reverse polarity protection | DC | 12 to 30 Vdc | ± 2.0%/50°F (includes zero and span). Between -20 and 180°F (-29 and 82°C). ± 2.0% per 50°F (28°C). | 374 g | 22 AWG | ± 0.32 mA |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
