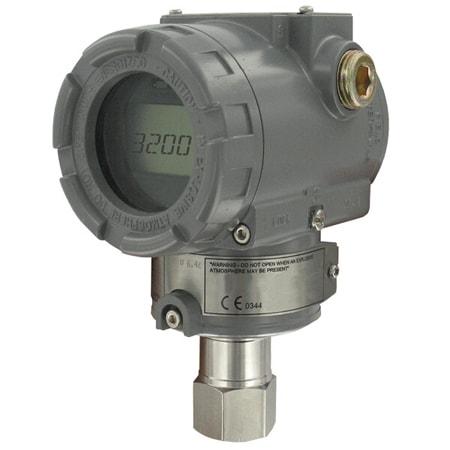

방폭 압력 변환기, HART®, FM 인증, 100:1 범위
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Compliance | Damping Time | Display Type | Electrical Connection | Electrical Output | Enclosure Ratings | Loop Resistance | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Proof Pressure | Response Time | Span Limit | Stability | Supply Power Type | Supply Voltage | Thermal Effects | Turndown Ratio | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3200G-4-FM-1-1-LCD가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel | Gauge | 3600 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | 5 | 176 °F | -22 °F | 4 to 20 mA / HART Communication | Current | 1/2 in | NPT Female | 248 °F | -40 °F | Up to 58 psi | 0.12 s | 0.22 to 21 psi | ± 0.125% FSO/year | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 2.5 kg | |
3200G-3-FM-1-1-LCD가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel | Gauge | 725 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | 5 | 176 °F | -22 °F | 4 to 20 mA / HART Communication | Current | 1/2 in | NPT Female | 248 °F | -40 °F | Up to 58 psi | 0.12 s | 0.22 to 21 psi | ± 0.125% FSO/year | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 2.5 kg | |
3200G-2-FM-1-1-LCD가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel | Gauge | 217 psi | -14.5 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | 5 | 176 °F | -22 °F | 4 to 20 mA / HART Communication | Current | 1/2 in | NPT Female | 248 °F | -40 °F | Up to 58 psi | 0.12 s | 0.22 to 21 psi | ± 0.125% FSO/year | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 2.5 kg | |
3200G-4-FM-1-1가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel | Gauge | 3600 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | 5 | 176 °F | -22 °F | 4 to 20 mA / HART Communication | Current | 1/2 in | NPT Female | 248 °F | -40 °F | Up to 58 psi | 0.12 s | 0.22 to 21 psi | ± 0.125% FSO/year | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 2.5 kg | |
3200G-2-FM-1-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel | Gauge | 217 psi | -14.5 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | 5 | 176 °F | -22 °F | 4 to 20 mA / HART Communication | Current | 1/2 in | NPT Female | 248 °F | -40 °F | Up to 58 psi | 0.12 s | 0.22 to 21 psi | ± 0.125% FSO/year | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 2.5 kg | |
3200G-3-FM-1-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel | Gauge | 725 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | 5 | 176 °F | -22 °F | 4 to 20 mA / HART Communication | Current | 1/2 in | NPT Female | 248 °F | -40 °F | Up to 58 psi | 0.12 s | 0.22 to 21 psi | ± 0.125% FSO/year | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 2.5 kg | |
3200G-1-FM-1-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel | Gauge | 21 psi | -14.5 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | 5 | 176 °F | -22 °F | 4 to 20 mA / HART Communication | Current | 1/2 in | NPT Female | 248 °F | -40 °F | Up to 58 psi | 0.12 s | 0.22 to 21 psi | ± 0.125% FSO/year | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 2.5 kg | |
3200G-1-FM-1-1-LCD가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel | Gauge | 21 psi | -14.5 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | 5 | 176 °F | -22 °F | 4 to 20 mA / HART Communication | Current | 1/2 in | NPT Female | 248 °F | -40 °F | Up to 58 psi | 0.12 s | 0.22 to 21 psi | ± 0.125% FSO/year | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 2.5 kg |
