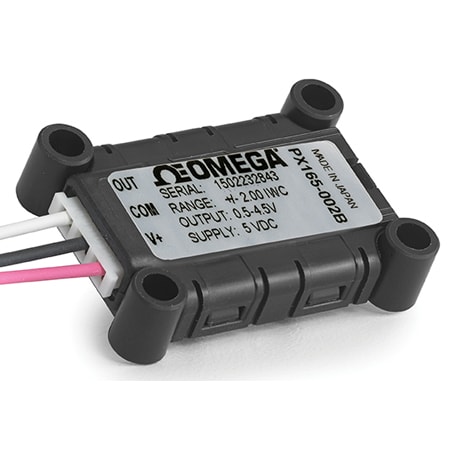

소형, 차동, 저압 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 16개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Additional Features 1 | Additional Features 2 | Electrical Connection | Electrical Output | Electrical Output Note | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Size | Process Connection Type | Supply Voltage | Thermal Effect on Span error, Max | Zero/Balance Error | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX165-0.75U586,670 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Unidirectional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 0.75 inH₂O | 0 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 3% gage | up to 1% of FS | |
PX165-0.50U586,670 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Unidirectional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 0.5 inH₂O | 0 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 4.5% gage | up to 1% of FS | |
PX165-0.50B586,670 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Bi-directional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 0.5 inH₂O | -0.5 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 4.5% gage | up to 1% of FS | |
PX165-0.25B586,670 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Bi-directional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 0.25 inH₂O | -0.25 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 0.02 %FS/℃ | up to 1% of FS | |
PX165-0.25U586,670 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Unidirectional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 0.25 inH₂O | 0 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 0.02 %FS/℃ | up to 1% of FS | |
PX165-0.10B586,670 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Bi-directional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 0.1 inH₂O | -0.1 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 0.02 %FS/℃ | up to 1% of FS | |
PX165-020U586,670 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Unidirectional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 20 inH₂O | 0 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 1% gage | up to 1% of FS | |
PX165-015U586,670 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Unidirectional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 15 inH₂O | 0 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 1% absolute | up to 1% of FS | |
PX165-010U586,670 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Unidirectional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 10 inH₂O | 0 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 1% absolute | up to 1% of FS | |
PX165-005U586,670 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Unidirectional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 5 inH₂O | 0 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 1% absolute | up to 1% of FS | |
PX165-010B586,670 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Bi-directional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 10 inH₂O | -10 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 1% absolute | up to 1% of FS | |
PX165-005B586,670 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Bi-directional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 5 inH₂O | -5 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 1.5% gage and absolute | up to 1% of FS | |
PX165-002U586,670 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Unidirectional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 2 inH₂O | 0 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 1.5% gage and absolute | up to 1% of FS | |
PX165-001U586,670 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Unidirectional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 1 inH₂O | 0 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 1.5% gage and absolute | up to 1% of FS | |
PX165-002B586,670 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Bi-directional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 2 inH₂O | -2 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 1.5% gage and absolute | up to 1% of FS | |
PX165-001B586,670 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Bi-directional | PCB Mountable | JST BH Connector | 0.5 to 4.5 V | 0.5 to 4.5 VDC ratiometric output when powered with a 5VDC supply voltage. | Differential | 1 inH₂O | -1 inH₂O | Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 60 °C | -20 °C | Millivolt | 3/32 in | Stem | 4.5 to 5.5 Vdc | ± 3% gage | up to 1% of FS |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
