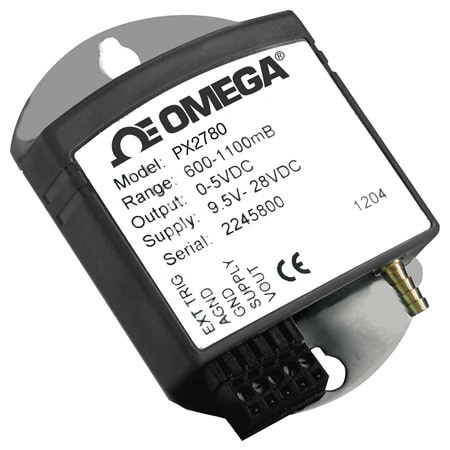

PX2780 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 5개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Burst Pressure	Compensated Temperature, Max	Compensated Temperature, Min	Electrical Connection	Electrical Output	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Mounting	Operating Temperature, Max	Operating Temperature, Min	Output Resistance	Output Signal	Process Connection Size	Process Connection Type	Proof Pressure	Resolution	Response Time	Sensitivity Effect	Span Setting Adjustable Range	Stability	Stability Note	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Voltage	Thermal Effect on Span error, Max	Warm Up Time	Warm-Up Shift	Weight	Zero Setting Adjustable Range	Zero/Balance Error
PX2780-800NB5V1,871,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	29 psi Maximum	60 °C	-40 °C	Removable Screw Terminal	0 to 5 V	Barometric	1060 mBar	800 mBar	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	Mounting plate	60 °C	-40 °C	<10 Ω	Voltage	1/8 in	Barbed Fitting	Up to 1500 hpa	0.1 hPa	<100 ms	<± 0.09% full scale/50°C	± 5 mV	<± 0.1	Long Term Stability: <± 0.1 hPa (mb)/year	120 °C	-60 °C	9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit	9.5 to 28 Vdc	± 1% gage	<1 sec	<0.1 hPa (mb) maximum	137 g	± 5 mV	<± 0.18% full scale/50°C
PX2780-600NB5V1,871,830 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.4 %	> 0.25%	29 psi Maximum	60 °C	-40 °C	Removable Screw Terminal	0 to 5 V	Barometric	1060 mBar	600 mBar	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	Mounting plate	60 °C	-40 °C	<10 Ω	Voltage	1/8 in	Barbed Fitting	Up to 1500 hpa	0.1 hPa	<100 ms	<± 0.09% full scale/50°C	± 5 mV	<± 0.1	Long Term Stability: <± 0.1 hPa (mb)/year	120 °C	-60 °C	9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit	9.5 to 28 Vdc	± 1% gage	<1 sec	<0.1 hPa (mb) maximum	137 g	± 5 mV	<± 0.18% full scale/50°C
PX2780-800B5V1,882,190 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	29 psi Maximum	60 °C	-40 °C	Removable Screw Terminal	0 to 5 V	Barometric	1100 mBar	800 mBar	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	Mounting plate	60 °C	-40 °C	<10 Ω	Voltage	1/8 in	Barbed Fitting	Up to 1500 hpa	0.1 hPa	<100 ms	<± 0.09% full scale/50°C	± 5 mV	<± 0.1	Long Term Stability: <± 0.1 hPa (mb)/year	120 °C	-60 °C	9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit	9.5 to 28 Vdc	± 1% gage	<1 sec	<0.1 hPa (mb) maximum	137 g	± 5 mV	<± 0.18% full scale/50°C
PX2780-500B5V1,781,620 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	29 psi Maximum	60 °C	-40 °C	Removable Screw Terminal	0 to 5 V	Barometric	1100 mBar	500 mBar	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	Mounting plate	60 °C	-40 °C	<10 Ω	Voltage	1/8 in	Barbed Fitting	Up to 1500 hpa	0.1 hPa	<100 ms	<± 0.09% full scale/50°C	± 5 mV	<± 0.1	Long Term Stability: <± 0.1 hPa (mb)/year	120 °C	-60 °C	9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit	9.5 to 28 Vdc	± 1% gage	<1 sec	<0.1 hPa (mb) maximum	137 g	± 5 mV	<± 0.18% full scale/50°C
PX2780-600B5V1,781,620 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.4 %	> 0.25%	29 psi Maximum	60 °C	-40 °C	Removable Screw Terminal	0 to 5 V	Barometric	1100 mBar	600 mBar	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	Mounting plate	60 °C	-40 °C	<10 Ω	Voltage	1/8 in	Barbed Fitting	Up to 1500 hpa	0.1 hPa	<100 ms	<± 0.09% full scale/50°C	± 5 mV	<± 0.1	Long Term Stability: <± 0.1 hPa (mb)/year	120 °C	-60 °C	9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit	9.5 to 28 Vdc	± 1% gage	<1 sec	<0.1 hPa (mb) maximum	137 g	± 5 mV	<± 0.18% full scale/50°C

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Burst Pressure

Compensated Temperature, Max

Compensated Temperature, Min

Electrical Connection

Electrical Output

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Mounting

Operating Temperature, Max

Operating Temperature, Min

Output Resistance

Output Signal

Process Connection Size

Process Connection Type

Proof Pressure

Resolution

Response Time

Sensitivity Effect

Span Setting Adjustable Range

Stability

Stability Note

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Voltage

Thermal Effect on Span error, Max

Warm Up Time

Warm-Up Shift

Weight

Zero Setting Adjustable Range

Zero/Balance Error

수량 / 장바구니

PX2780-800NB5V1,871,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

29 psi Maximum

60 °C

-40 °C

Removable Screw Terminal

0 to 5 V

Barometric

1060 mBar

800 mBar

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

Mounting plate

60 °C

-40 °C

<10 Ω

Voltage

1/8 in

Barbed Fitting

Up to 1500 hpa

0.1 hPa

<100 ms

<± 0.09% full scale/50°C

± 5 mV

<± 0.1

Long Term Stability: <± 0.1 hPa (mb)/year

120 °C

-60 °C

9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit

9.5 to 28 Vdc

± 1% gage

<1 sec

<0.1 hPa (mb) maximum

137 g

± 5 mV

<± 0.18% full scale/50°C

PX2780-600NB5V1,871,830 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.4 %

> 0.25%

29 psi Maximum

60 °C

-40 °C

Removable Screw Terminal

0 to 5 V

Barometric

1060 mBar

600 mBar

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

Mounting plate

60 °C

-40 °C

<10 Ω

Voltage

1/8 in

Barbed Fitting

Up to 1500 hpa

0.1 hPa

<100 ms

<± 0.09% full scale/50°C

± 5 mV

<± 0.1

Long Term Stability: <± 0.1 hPa (mb)/year

120 °C

-60 °C

9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit

9.5 to 28 Vdc

± 1% gage

<1 sec

<0.1 hPa (mb) maximum

137 g

± 5 mV

<± 0.18% full scale/50°C

PX2780-800B5V1,882,190 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

29 psi Maximum

60 °C

-40 °C

Removable Screw Terminal

0 to 5 V

Barometric

1100 mBar

800 mBar

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

Mounting plate

60 °C

-40 °C

<10 Ω

Voltage

1/8 in

Barbed Fitting

Up to 1500 hpa

0.1 hPa

<100 ms

<± 0.09% full scale/50°C

± 5 mV

<± 0.1

Long Term Stability: <± 0.1 hPa (mb)/year

120 °C

-60 °C

9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit

9.5 to 28 Vdc

± 1% gage

<1 sec

<0.1 hPa (mb) maximum

137 g

± 5 mV

<± 0.18% full scale/50°C

PX2780-500B5V1,781,620 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

29 psi Maximum

60 °C

-40 °C

Removable Screw Terminal

0 to 5 V

Barometric

1100 mBar

500 mBar

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

Mounting plate

60 °C

-40 °C

<10 Ω

Voltage

1/8 in

Barbed Fitting

Up to 1500 hpa

0.1 hPa

<100 ms

<± 0.09% full scale/50°C

± 5 mV

<± 0.1

Long Term Stability: <± 0.1 hPa (mb)/year

120 °C

-60 °C

9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit

9.5 to 28 Vdc

± 1% gage

<1 sec

<0.1 hPa (mb) maximum

137 g

± 5 mV

<± 0.18% full scale/50°C

PX2780-600B5V1,781,620 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.4 %

> 0.25%

29 psi Maximum

60 °C

-40 °C

Removable Screw Terminal

0 to 5 V

Barometric

1100 mBar

600 mBar

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

Mounting plate

60 °C

-40 °C

<10 Ω

Voltage

1/8 in

Barbed Fitting

Up to 1500 hpa

0.1 hPa

<100 ms

<± 0.09% full scale/50°C

± 5 mV

<± 0.1

Long Term Stability: <± 0.1 hPa (mb)/year

120 °C

-60 °C

9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit

9.5 to 28 Vdc

± 1% gage

<1 sec

<0.1 hPa (mb) maximum

137 g

± 5 mV

<± 0.18% full scale/50°C
