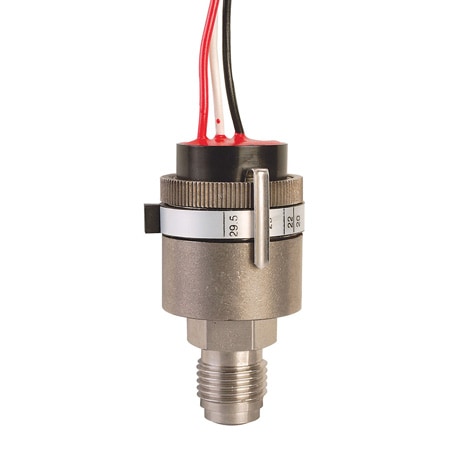

고순도 OEM 기계식 압력 스위치
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 24개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Control Output | Deadband Type | Decreasing Pressure, Max | Decreasing Pressure, Min | Diameter | Electrical Connection | Increasing Pressure, Max | Increasing Pressure, Min | Materials | Materials, Wetted | Measurement Pressure Type | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Proof Pressure | Repeatability | Switch | Switch Rating | Switch Type | Weight | Wiring/Connector Table | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PSW-696-V5379,770 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 1.6 inHg | -27 inHg | 1.125 in | Pigtail Leads | 2.7 inHg | -28.2 inHg | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Vacuum | 1/4 in | VCR | 107 °C | -54 °C | Up to 2.4 inHg | ± 1.2% | Single | 5 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-696-V1379,770 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 1.6 inHg | -27 inHg | 1.125 in | Pigtail Leads | 2.7 inHg | -28.2 inHg | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Vacuum | 1/4 in | VCR | 107 °C | -54 °C | Up to 2.4 inHg | ± 1.2% | Single | 1 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-696-N1366,210 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 1.6 inHg | -27 inHg | 1.125 in | Pigtail Leads | 2.7 inHg | -28.2 inHg | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Vacuum | 1/8 in | NPT Male | 107 °C | -54 °C | Up to 2.4 inHg | ± 1.2% | Single | 1 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-696-N5366,210 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 1.6 inHg | -27 inHg | 1.125 in | Pigtail Leads | 2.7 inHg | -28.2 inHg | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Vacuum | 1/8 in | NPT Male | 107 °C | -54 °C | Up to 2.4 inHg | ± 1.2% | Single | 5 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-695-V5377,670 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 485 psi | 15 psi | 1.125 in | Pigtail Leads | 500 psi | 20 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/4 in | VCR | 107 °C | -54 °C | Up to 750 psi | ± 10% | Single | 5 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-695-V1377,670 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 485 psi | 15 psi | 1.125 in | Pigtail Leads | 500 psi | 20 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/4 in | VCR | 107 °C | -54 °C | Up to 750 psi | ± 10% | Single | 1 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-695-N5364,200 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 485 psi | 15 psi | 1.125 in | Pigtail Leads | 500 psi | 20 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/8 in | NPT Male | 107 °C | -54 °C | Up to 750 psi | ± 10% | Single | 5 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-694-V5359,480 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 242.5 psi | 7.5 psi | 1.125 in | Pigtail Leads | 250 psi | 9.7 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/4 in | VCR | 107 °C | -54 °C | Up to 375 psi | ± 5% | Single | 5 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-695-N1364,200 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 485 psi | 15 psi | 1.125 in | Pigtail Leads | 500 psi | 20 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/8 in | NPT Male | 107 °C | -54 °C | Up to 750 psi | ± 10% | Single | 1 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-694-V1377,670 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 242.5 psi | 7.5 psi | 1.125 in | Pigtail Leads | 250 psi | 9.7 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/4 in | VCR | 107 °C | -54 °C | Up to 375 psi | ± 5% | Single | 1 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-694-N5366,210 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 242.5 psi | 7.5 psi | 1.125 in | Pigtail Leads | 250 psi | 9.7 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/8 in | NPT Male | 107 °C | -54 °C | Up to 375 psi | ± 5% | Single | 5 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-694-N1366,210 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 242.5 psi | 7.5 psi | 1.125 in | Pigtail Leads | 250 psi | 9.7 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/8 in | NPT Male | 107 °C | -54 °C | Up to 375 psi | ± 5% | Single | 1 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-693-V1379,770 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 96.5 psi | 3 psi | 1.125 in | Pigtail Leads | 100 psi | 4.5 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/4 in | VCR | 107 °C | -54 °C | Up to 150 psi | ± 2% | Single | 1 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-693-V5379,770 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 96.5 psi | 3 psi | 1.125 in | Pigtail Leads | 100 psi | 4.5 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/4 in | VCR | 107 °C | -54 °C | Up to 150 psi | ± 2% | Single | 5 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-693-N5366,210 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 96.5 psi | 3 psi | 1.125 in | Pigtail Leads | 100 psi | 4.5 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/8 in | NPT Male | 107 °C | -54 °C | Up to 150 psi | ± 2% | Single | 5 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-693-N1366,210 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 96.5 psi | 3 psi | 1.125 in | Pigtail Leads | 100 psi | 4.5 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/8 in | NPT Male | 107 °C | -54 °C | Up to 150 psi | ± 2% | Single | 1 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-692-V5379,770 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 48 psi | 2 psi | 1.125 in | Pigtail Leads | 50 psi | 3 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/4 in | VCR | 107 °C | -54 °C | Up to 75 psi | ± 1% | Single | 5 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-692-N5364,200 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 48 psi | 2 psi | 1.125 in | Pigtail Leads | 50 psi | 3 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/8 in | NPT Male | 107 °C | -54 °C | Up to 75 psi | ± 1% | Single | 5 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-692-V1377,670 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 48 psi | 2 psi | 1.125 in | Pigtail Leads | 50 psi | 3 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/4 in | VCR | 107 °C | -54 °C | Up to 75 psi | ± 1% | Single | 1 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common | |
PSW-692-N1366,210 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | SPDT Relay | Fixed | 48 psi | 2 psi | 1.125 in | Pigtail Leads | 50 psi | 3 psi | Stainless Steel, Zinc Alloy, Valox | 17-4 Stainless Steel, 316 Stainless Steel | Gauge | 1/8 in | NPT Male | 107 °C | -54 °C | Up to 75 psi | ± 1% | Single | 1 A | SPDT NO/NC, Selectable | 3 oz | Red = N/C, White = N/O, Black = Common |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
