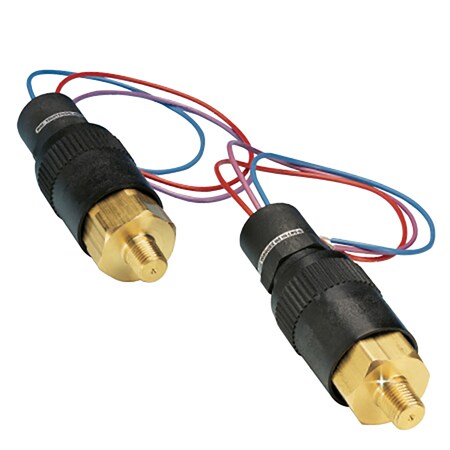

혹독한 환경용 OEM 기계식 압력 스위치
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 11개의 상품
| 제품 번호 / 가격 | Brand | Burst Pressure | Control Output | Deadband | Deadband Type | Decreasing Pressure, Max | Decreasing Pressure, Min | Diameter | Electrical Connection | Increasing Pressure, Max | Increasing Pressure, Min | Materials | Materials, Wetted | Measurement Pressure Type | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Proof Pressure | Repeatability | Repeatability Note | Sensor Type | Switch Rating | Switch Type | Thermal Effects | Weight | Wiring/Connector Table | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PSW-811311,870 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24,000 psi Maximum | SPST Relay | 350 to 800 psi | Fixed | 6700 psi | 3650 psi | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | 7500 psi | 4000 psi | Plastic | Brass, Buna-N (NBR), Stainless Steel | Gauge | 1/2 in | NPT Male | 75 °C | -40 °C | Up to 12000 psi | ± 1.5% | ± 1.5 of span | Sealed Piston | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common | |
PSW-810313,610 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 14,000 psi Maximum | SPST Relay | 200 to 500 psi | Fixed | 3900 psi | 1450 psi | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | 4400 psi | 1650 psi | Plastic | Brass, Buna-N (NBR), Stainless Steel | Gauge | 1/2 in | NPT Male | 75 °C | -40 °C | Up to 7000 psi | ± 1.5% | ± 1.5 of span | Sealed Piston | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common | |
PSW-809440,090 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 14,000 psi Maximum | SPST Relay | 70 to 250 psi | Fixed | 1450 psi | 360 psi | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | 1700 psi | 430 psi | Plastic | Brass, Buna-N (NBR), Stainless Steel | Gauge | 1/2 in | NPT Male | 75 °C | -40 °C | Up to 7000 psi | ± 1.5% | ± 1.5 of span | Sealed Piston | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common | |
PSW-808311,870 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 14,000 psi Maximum | SPST Relay | 60 to 150 psi | Fixed | 450 psi | 190 psi | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | 600 psi | 250 psi | Plastic | Brass, Buna-N (NBR), Stainless Steel | Gauge | 1/2 in | NPT Male | 75 °C | -40 °C | Up to 7000 psi | ± 1.5% | ± 1.5 of span | Sealed Piston | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common | |
PSW-806311,870 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 psi Maximum | SPST Relay | 10 to 30 psi | Fixed | 220 psi | 70 psi | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | 250 psi | 50 psi | Plastic | Brass, Buna-N (NBR) | Gauge | 1/2 in | NPT Male | 75 °C | -30 °C | Up to 1000 psi | ± 1% | ± 1 of span | Diaphragm | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common | |
PSW-807313,610 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 psi Maximum | SPST Relay | 20 to 60 psi | Fixed | 440 psi | 110 psi | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | 500 psi | 130 psi | Plastic | Brass, Buna-N (NBR) | Gauge | 1/2 in | NPT Male | 75 °C | -30 °C | Up to 1000 psi | ± 1% | ± 1 of span | Diaphragm | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common | |
PSW-805330,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 psi Maximum | SPST Relay | 2.5 to 13 psi | Fixed | 112 psi | 22.5 psi | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | 125 psi | 25 psi | Plastic | Brass, Buna-N (NBR) | Gauge | 1/2 in | NPT Male | 75 °C | -30 °C | Up to 1000 psi | ± 1% | ± 1 of span | Diaphragm | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common | |
PSW-804313,610 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 psi Maximum | SPST Relay | 1.5 to 6 psi | Fixed | 44 psi | 8.5 psi | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | 50 psi | 10 psi | Plastic | Brass, Buna-N (NBR) | Gauge | 1/2 in | NPT Male | 75 °C | -30 °C | Up to 1000 psi | ± 1% | ± 1 of span | Diaphragm | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common | |
PSW-803296,880 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 psi Maximum | SPST Relay | 1 to 4 psi | Fixed | 31 psi | 5 psi | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | 35 psi | 6 psi | Plastic | Brass, Buna-N (NBR) | Gauge | 1/2 in | NPT Male | 75 °C | -30 °C | Up to 1000 psi | ± 1% | ± 1 of span | Diaphragm | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common | |
PSW-801313,610 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 60 psi Maximum | SPST Relay | 1 to 4 inHg | Fixed | -1 inHg | -28 inHg | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | -4 inHg | -30 inHg | Plastic | Brass, Buna-N (NBR) | Vacuum | 1/2 in | NPT Male | 75 °C | -20 °C | Up to 30 psi | ± 1% | ± 1 of span | Diaphragm | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common | |
PSW-802302,430 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 psi Maximum | SPST Relay | 0.5 to 2.2 psi | Fixed | 12.8 psi | 2.5 psi | 1.5 in | 1/2 in NPT female Conduit with Wire Leads | 15 psi | 3 psi | Plastic | Brass, Buna-N (NBR) | Gauge | 1/2 in | NPT Male | 75 °C | -30 °C | Up to 1000 psi | ± 1% | ± 1 of span | Diaphragm | 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc | SPST | <1% for 25°C (45°F) change | 0.95 lb | Red - N/C, Blue - N/O, Purple - Common |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
