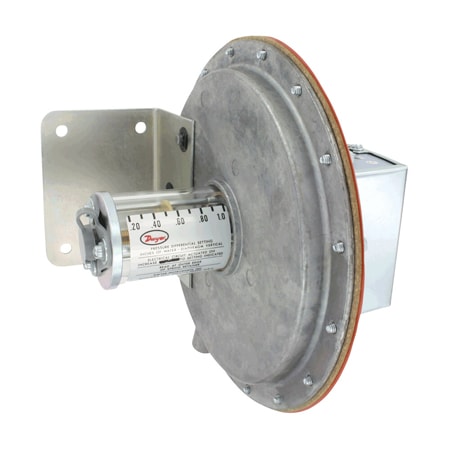

대형 다이어프램 압력 스위치, UL/CSA 인증, 15A, 설정값 표시, HVAC
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 5개의 상품
| 제품 번호 / 가격 | Brand | Applications | Compliance | Deadband | Electrical Connection | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Process Connection Size | Process Connection Type | Proof Pressure | Repeatability | Set Point Adjustment | Switch Note | Switch Rating | Switch Type | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1638-10가격 문의29 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CSA, FM, UL | 0.11 to 0.3 inH2O | Screw Terminal | Consult Factory | Gauge | 12 inH₂O | 3 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 110 °F | -30 °F | 1/8 in | NPT Female | Up to 10 psi | ± 1% | Internal Screw | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | SPDT NO/NC, Selectable | 1.5 kg | |
1638-2가격 문의29 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CSA, FM, UL | 0.06 to 0.08 inH2O | Screw Terminal | Consult Factory | Gauge | 3 inH₂O | 1 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 110 °F | -30 °F | 1/8 in | NPT Female | Up to 10 psi | ± 1% | Internal Screw | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | SPDT NO/NC, Selectable | 1.5 kg | |
1638-1가격 문의29 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CSA, FM, UL | 0.04 to 0.06 inH2O | Screw Terminal | Consult Factory | Gauge | 1 inH₂O | 0.2 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 110 °F | -30 °F | 1/8 in | NPT Female | Up to 10 psi | ± 1% | Internal Screw | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | SPDT NO/NC, Selectable | 1.5 kg | |
1638-5가격 문의29 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CSA, FM, UL | 0.07 to 0.25 inH2O | Screw Terminal | Consult Factory | Gauge | 6 inH₂O | 2 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 110 °F | -30 °F | 1/8 in | NPT Female | Up to 10 psi | ± 1% | Internal Screw | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | SPDT NO/NC, Selectable | 1.5 kg | |
1638-0가격 문의29 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CSA, FM, UL | 0.04 to 0.05 inH2O | Screw Terminal | Consult Factory | Gauge | 0.25 inH₂O | 0.05 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 110 °F | -30 °F | 1/8 in | NPT Female | Up to 10 psi | ± 1% | Internal Screw | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | SPDT NO/NC, Selectable | 1.5 kg |
