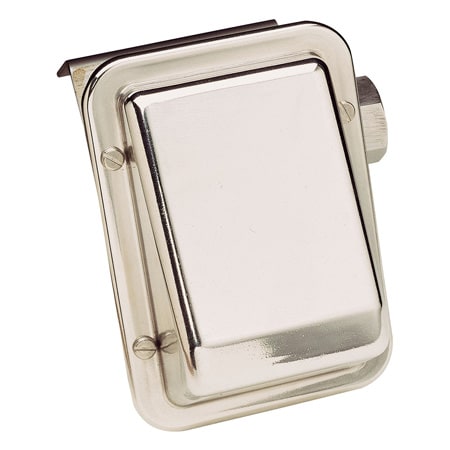

PSW-370-Series | Britestone

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

로딩 중...

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 10개의 상품

제품 번호 / 가격	Brand	Control Output	Deadband	Deadband Type	Electrical Connection	Enclosure Ratings	Materials	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Operating Temperature, Max	Operating Temperature, Min	Output Note	Output Value	Process Connection Size	Process Connection Type	Proof Pressure	Sensor Type	Setpoint Repeatability	Setpoint Repeatability Note	Storage Temperature, Max	Storage Temperature, Min	Switch	Switch Note	Switch Type	수량 / 장바구니
PSW-3791,585,000 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SPDT Relay	301 to 418 psi	Fixed	3/4 in NPSM with Screw Terminal block	IP66, NEMA Type 4X	316 Stainless Steel, PTFE, Stainless Steel	PTFE, Stainless Steel	Gauge	3000 psi	450 psi	66 °C	-29 °C	15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc	15A @ 125/250/480 Vac	1/4 in	NPT Female	Up to 12000 psi	Diaphragm	± 1%	Typically shifts ± 1% of range per 28°C (50°F)	66 °C	-29 °C	Dual	Two SPDT switches can be wired “normally open” or “normally closed”	SPDT NO/NC, Selectable
PSW-3781,585,000 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SPDT Relay	84 to 216 psi	Fixed	3/4 in NPSM with Screw Terminal block	IP66, NEMA Type 4X	316 Stainless Steel, PTFE, Stainless Steel	PTFE, Stainless Steel	Gauge	1000 psi	150 psi	66 °C	-29 °C	15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc	15A @ 125/250/480 Vac	1/4 in	NPT Female	Up to 12000 psi	Diaphragm	± 1%	Typically shifts ± 1% of range per 28°C (50°F)	66 °C	-29 °C	Dual	Two SPDT switches can be wired “normally open” or “normally closed”	SPDT NO/NC, Selectable
PSW-3771,532,150 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SPDT Relay	37.4 to 119 psi	Fixed	3/4 in NPSM with Screw Terminal block	IP66, NEMA Type 4X	316 Stainless Steel, Stainless Steel	PTFE, Stainless Steel	Gauge	600 psi	120 psi	66 °C	-29 °C	15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc	15A @ 125/250/480 Vac	1/4 in	NPT Female	Up to 2400 psi	Diaphragm	± 1%	Typically shifts ± 1% of range per 28°C (50°F)	66 °C	-29 °C	Dual	Two SPDT switches can be wired “normally open” or “normally closed”	SPDT NO/NC, Selectable
PSW-3751,540,640 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SPDT Relay	17 to 34 psi	Fixed	3/4 in NPSM with Screw Terminal block	IP66, NEMA Type 4X	316 Stainless Steel, Stainless Steel	PTFE, Stainless Steel	Gauge	200 psi	40 psi	66 °C	-29 °C	15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc	15A @ 125/250/480 Vac	1/4 in	NPT Female	Up to 1000 psi	Diaphragm	± 1%	Typically shifts ± 1% of range per 28°C (50°F)	66 °C	-29 °C	Dual	Two SPDT switches can be wired “normally open” or “normally closed”	SPDT NO/NC, Selectable
PSW-3761,532,150 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SPDT Relay	37.4 to 71.4 psi	Fixed	3/4 in NPSM with Screw Terminal block	IP66, NEMA Type 4X	316 Stainless Steel, Stainless Steel	PTFE, Stainless Steel	Gauge	400 psi	80 psi	66 °C	-29 °C	15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc	15A @ 125/250/480 Vac	1/4 in	NPT Female	Up to 2400 psi	Diaphragm	± 1%	Typically shifts ± 1% of range per 28°C (50°F)	66 °C	-29 °C	Dual	Two SPDT switches can be wired “normally open” or “normally closed”	SPDT NO/NC, Selectable
PSW-3741,532,150 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SPDT Relay	85 to 15.3 psi	Fixed	3/4 in NPSM with Screw Terminal block	IP66, NEMA Type 4X	316 Stainless Steel, Stainless Steel	PTFE, Stainless Steel	Gauge	100 psi	20 psi	66 °C	-29 °C	15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc	15A @ 125/250/480 Vac	1/4 in	NPT Female	Up to 1000 psi	Diaphragm	± 1%	Typically shifts ± 1% of range per 28°C (50°F)	66 °C	-29 °C	Dual	Two SPDT switches can be wired “normally open” or “normally closed”	SPDT NO/NC, Selectable
PSW-3731,532,150 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SPDT Relay	2.4 to 6.8 psi	Fixed	3/4 in NPSM with Screw Terminal block	IP66, NEMA Type 4X	316 Stainless Steel, Stainless Steel	PTFE, Stainless Steel	Gauge	30 psi	6 psi	66 °C	-29 °C	15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc	15A @ 125/250/480 Vac	1/4 in	NPT Female	Up to 500 psi	Diaphragm	± 1%	Typically shifts ± 1% of range per 28°C (50°F)	66 °C	-29 °C	Dual	Two SPDT switches can be wired “normally open” or “normally closed”	SPDT NO/NC, Selectable
PSW-3711,756,720 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SPDT Relay	8.4 to 19.2 inH2O	Fixed	3/4 in NPSM with Screw Terminal block	IP66, NEMA Type 4X	316 Stainless Steel, PTFE, Stainless Steel	PTFE, Stainless Steel	Gauge	150 inH₂O	22 inH₂O	66 °C	-29 °C	15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc	15A @ 125/250/480 Vac	1/4 in	NPT Female	Up to 20 psi	Diaphragm	± 1%	Typically shifts ± 1% of range per 28°C (50°F)	66 °C	-29 °C	Dual	Two SPDT switches can be wired “normally open” or “normally closed”	SPDT NO/NC, Selectable
PSW-3721,532,150 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SPDT Relay	2.4 to 3.6 psi	Fixed	3/4 in NPSM with Screw Terminal block	IP66, NEMA Type 4X	316 Stainless Steel, Stainless Steel	PTFE, Stainless Steel	Gauge	15 psi	3 psi	66 °C	-29 °C	15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc	15A @ 125/250/480 Vac	1/4 in	NPT Female	Up to 500 psi	Diaphragm	± 1%	Typically shifts ± 1% of range per 28°C (50°F)	66 °C	-29 °C	Dual	Two SPDT switches can be wired “normally open” or “normally closed”	SPDT NO/NC, Selectable
PSW-3701,756,720 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SPDT Relay	2.5 to 5.9 inH2O	Fixed	3/4 in NPSM with Screw Terminal block	IP66, NEMA Type 4X	316 Stainless Steel, PTFE, Stainless Steel	PTFE, Stainless Steel	Gauge	30 inH₂O	5 inH₂O	66 °C	-29 °C	15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc	15A @ 125/250/480 Vac	1/4 in	NPT Female	Up to 20 psi	Diaphragm	± 1%	Typically shifts ± 1% of range per 28°C (50°F)	66 °C	-29 °C	Dual	Two SPDT switches can be wired “normally open” or “normally closed”	SPDT NO/NC, Selectable
