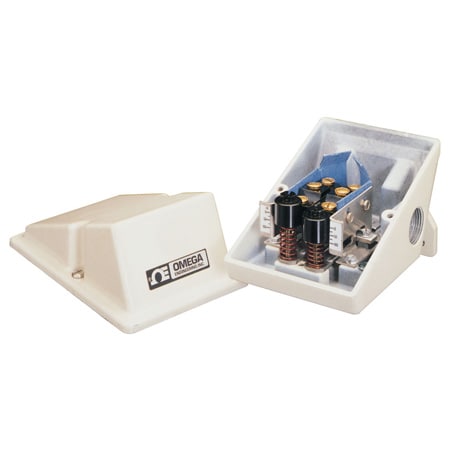

혹독한 환경용 산업용 압력 스위치
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 43개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Approvals | Control Output | Deadband | Deadband Type | Electrical Connection | Enclosure Ratings | Height | Materials | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature Note | Operating Temperature, Max | Operating Temperature, Min | Output Note | Output Value | Process Connection Note | Process Connection Size | Process Connection Type | Proof Pressure | Sensor Type | Setpoint Repeatability | Storage Temperature, Max | Storage Temperature, Min | Switch | Switch Note | Switch Type | Weight | Width | Diameter | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PSW-308-SS가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 18 to 180 psi | Adjustable | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Stainless Steel, Aluminum, Epoxy | Gauge | 200 psi | 40 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 10A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 1000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Single | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3681,827,110 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 5.6 to 11 psi | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 400 psi | 60 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 8000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3661,827,110 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 1.4 to 2.8 psi | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 60 psi | 9 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 2000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3671,827,110 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 1.4 to 5.6 psi | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 200 psi | 30 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 4000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3651,827,110 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 1 to 2.1 psi | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 30 psi | 5 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 2000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3641,679,320 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 2.4 to 4.2 inH2O | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 150 inH₂O | 23 inH₂O | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 21.6 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 4.5 in | |
PSW-3631,679,320 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 1.4 to 2.8 inH2O | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 100 inH₂O | 15 inH₂O | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 21.6 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 4.5 in | |
PSW-3621,679,320 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 0.7 to 2 inH2O | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 60 inH₂O | 9 inH₂O | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 21.6 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 4.5 in | |
PSW-3581,719,660 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 45 to 360 psi | Adjustable | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 400 psi | 60 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 10A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 8000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Single | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3611,679,320 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 0.7 to 1.4 inH2O | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 30 inH₂O | 5 inH₂O | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 21.6 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 4.5 in | |
PSW-3571,719,660 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 18 to 180 psi | Adjustable | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 200 psi | 30 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 10A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 4000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Single | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3561,719,660 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 5 to 54 psi | Adjustable | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 60 psi | 9 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 10A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 2000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Single | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3551,719,660 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 3 to 27 psi | Adjustable | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 30 psi | 5 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 10A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 2000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Single | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3531,571,860 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 8.5 to 90 inH2O | Adjustable | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 100 inH₂O | 15 inH₂O | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 10A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 21.6 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Single | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 4.5 in | |
PSW-3541,571,860 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 18 to 135 inH2O | Adjustable | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 150 inH₂O | 23 inH₂O | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 10A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 21.6 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Single | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 4.5 in | |
PSW-3521,571,860 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 5 to 54 inH2O | Adjustable | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 60 inH₂O | 9 inH₂O | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 10A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 21.6 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Single | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 4.5 in | |
PSW-3511,571,860 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 4 to 27 inH2O | Adjustable | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | Aluminum, NBR, Nitrile Rubber | Differential | 30 inH₂O | 5 inH₂O | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 10A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 21.6 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Single | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 4.5 in | |
PSW-3481,236,000 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 4.2 to 11.2 psi | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | 316 Stainless Steel, Aluminum, Stainless Steel | Gauge | 200 psi | 40 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 1000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3471,236,000 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 2.8 to 5.6 psi | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | 316 Stainless Steel, Aluminum, Stainless Steel | Gauge | 100 psi | 20 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 1000 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in | |
PSW-3461,236,000 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed, CSA certified | SPDT Relay | 1.7 to 2.8 psi | Fixed | 3/4 in NPT female Conduit with Screw Terminal block | IP66, NEMA Type 4X | 6 in | 316 Stainless Steel, Aluminum, Stainless Steel | Gauge | 30 psi | 6 psi | -29 to 66°C (-20 to 150°F); setpoint typically shifts +1% of range per 28°C (50°F) of temperature change. | 66 °C | -29 °C | 10 A 125/250 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc, 15 A: 125/250 Vac | 15A @ 125/250 Vac | 1/4 FNPT; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges; 1/2 NPT male for vacuum to 600 psi; 1/4 FNPT for 1000 and 3000 psi | 1/4 in | NPT Female | Up to 500 psi | Diaphragm | ± 1% | 66 °C | -29 °C | Dual | 1 or 2 SPDT switches can be wired "normally open" or "normally closed" | SPDT NO/NC, Selectable | 2 lb | 4.125 in | 3.75 in |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
