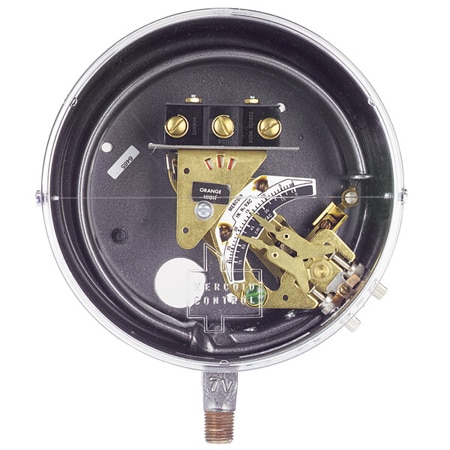

Series-DA-DS | Britestone

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 41개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Compliance	Deadband	Deadband Type	Enclosure Ratings	Material Construction Option	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Mounting Orientation	Operating Temperature, Max	Pressure Limits	Process Connection Note	Process Connection Size	Process Connection Type	Repeatability	Set Point Adjustment	Switch Rating	Switch Type	Weight
DA-7041-153-26E가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	15 psi	Adjustable	None	316 Stainless Steel	316 Stainless Steel	Compound Gauge	75 psi	-14.7 psi	Vertical	180 °F	Up to 75 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7041-153-24E가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	16.5 psi	Adjustable	None	316 Stainless Steel	316 Stainless Steel	Gauge	150 psi	10 psi	Vertical	180 °F	Up to 150 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7041-153-23E가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	12 psi	Adjustable	None	316 Stainless Steel	316 Stainless Steel	Gauge	75 psi	5 psi	Vertical	180 °F	Up to 75 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7041-153-22E가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	180 psi	Adjustable	None	316 Stainless Steel	316 Stainless Steel	Gauge	800 psi	75 psi	Vertical	180 °F	Up to 800 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7041-153-21E가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	78 psi	Adjustable	None	316 Stainless Steel	316 Stainless Steel	Gauge	400 psi	30 psi	Vertical	180 °F	Up to 400 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7041-153-13E가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	600 psi	Adjustable	None	316 Stainless Steel	316 Stainless Steel	Gauge	2500 psi	200 psi	Vertical	180 °F	Up to 2500 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7021-153-9AS가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	30 psi	Adjustable	None	Stainless Steel	Stainless Steel	Gauge	350 psi	40 psi	Vertical	180 °F	Up to 350 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7021-153-25S가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	18 psi	Adjustable	None	Stainless Steel	Stainless Steel	Compound Gauge	60 psi	-14.7 psi	Vertical	180 °F	Up to 60 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7021-153-26S가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	22.5 psi	Adjustable	None	Stainless Steel	Stainless Steel	Compound Gauge	75 psi	-14.7 psi	Vertical	180 °F	Up to 75 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7021-153-15S가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	1350 psi	Adjustable	None	Stainless Steel	Stainless Steel	Gauge	5000 psi	500 psi	Vertical	180 °F	Up to 5000 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/2 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7021-153-13S가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	390 psi	Adjustable	None	Stainless Steel	Stainless Steel	Gauge	2500 psi	300 psi	Vertical	180 °F	Up to 2500 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7021-153-12S가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	195 psi	Adjustable	None	Stainless Steel	Stainless Steel	Gauge	1500 psi	100 psi	Vertical	180 °F	Up to 1500 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7021-153-11S가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	142.5 psi	Adjustable	None	Stainless Steel	Stainless Steel	Gauge	1000 psi	50 psi	Vertical	180 °F	Up to 1000 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7041-153-9E가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	42 psi	Adjustable	None	316 Stainless Steel	316 Stainless Steel	Gauge	300 psi	10 psi	Vertical	180 °F	Up to 300 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DS-7231-153-3A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	1.5 psi	Fixed	None	Brass	Brass	Gauge	20 psi	0.125 psi	Vertical	180 °F	Up to 20 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	15 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7041-153-6E가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	15 psi	Adjustable	None	316 Stainless Steel	316 Stainless Steel	Gauge	100 psi	10 psi	Vertical	180 °F	Up to 100 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7031-153-3A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	6 psi	Adjustable	None	Brass	Brass	Gauge	20 psi	0.125 psi	Vertical	180 °F	Up to 20 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7031-153-27가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	12 psi	Adjustable	None	Brass	Brass	Compound Gauge	50 psi	12.2 psi	Vertical	180 °F	Up to 50 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7021-153-9S가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	28.5 psi	Adjustable	None	Stainless Steel	Stainless Steel	Gauge	300 psi	10 psi	Vertical	180 °F	Up to 300 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb
DA-7021-153-8S가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CSA, UL	22.5 psi	Adjustable	None	Stainless Steel	Stainless Steel	Gauge	200 psi	10 psi	Vertical	180 °F	Up to 200 psi	General purpose and weatherproof: 1/4˝ male NPT, 1/2˝ male NPT on ranges 15S and 16S; Explosion-proof: 1/2˝ male NPT and 1/4˝ female NPT	1/4 in	NPT Male	± 1%	Internal Thumbwheel or Nut	10 A @ 120/240 Vac	SPDT Snap	4 lb

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
