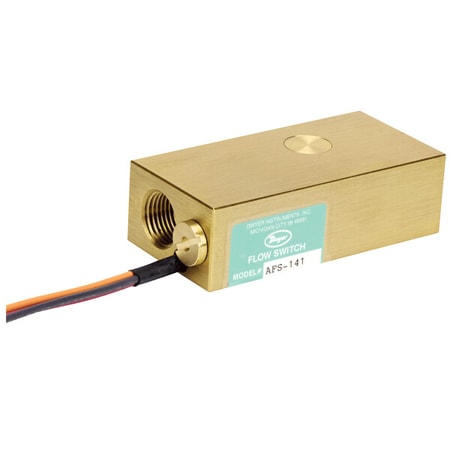

오일 및 가스를 위한 조절 가능한 유량 스위치, 0.5-20 GPM, 피스톤 설계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Actuation Set Point, Max | Actuation Set Point, Min | Compliance | Electrical Connection | Filter | Measurement Pressure Type | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Port 1 Size | Port 1 Type | Port 2 Size | Port 2 Type | Pressure Limits | Pressure Limits Note | Repeatability | Repeatability Note | Sensor Material | Sensor Type | Switch Rating | Switch Type | Weight | Wire Gauge | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AFS-252가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | ± 10% of set point | 75 SCFM | 1 SCFM | CE | 1/2 in NPT male Conduit with Wire Leads | 50 μ or better | Gauge | None | 300 °F | -20 °F | 1/2 in | NPT Female | 1/2 in | NPT Female | Up to 5 psi | 1000 psi (68 bar) | ± 1% | ± 1% max deviation | 316 Stainless Steel, Fluoroelastomer, Epoxy | Gases | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.22 kg | 18 AWG | |
AFS-251가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | ± 10% of set point | 75 SCFM | 1 SCFM | CE | Pigtail Leads | 50 μ or better | Gauge | None | 300 °F | -20 °F | 1/2 in | NPT Female | 1/2 in | NPT Female | Up to 5 psi | 1000 psi (68 bar) | ± 1% | ± 1% max deviation | 316 Stainless Steel, Fluoroelastomer, Epoxy | Gases | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.22 kg | 18 AWG | |
AFS-232가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | ± 10% of set point | 75 SCFM | 1 SCFM | CE | 1/2 in NPT male Conduit with Wire Leads | 50 μ or better | Gauge | None | 300 °F | -20 °F | 1/2 in | NPT Female | 1/2 in | NPT Female | Up to 5 psi | 1000 psi (68 bar) | ± 1% | ± 1% max deviation | Brass, Stainless Steel, Fluoroelastomer | Gases | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.22 kg | 18 AWG | |
AFS-152가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | ± 10% of set point | 20 GPM | 0.5 GPM | CE | 1/2 in NPT male Conduit with Wire Leads | 50 μ or better | Gauge | None | 300 °F | -20 °F | 1/2 in | NPT Female | 1/2 in | NPT Female | Up to 1000 psi | 1000 psi (68 bar) | ± 1% | ± 1% max deviation | 316 Stainless Steel, Fluoroelastomer, Epoxy | Liquids | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.22 kg | 18 AWG | |
AFS-231가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | ± 10% of set point | 75 SCFM | 1 SCFM | CE | Pigtail Leads | 50 μ or better | Gauge | None | 300 °F | -20 °F | 1/2 in | NPT Female | 1/2 in | NPT Female | Up to 5 psi | 1000 psi (68 bar) | ± 1% | ± 1% max deviation | Brass, Stainless Steel, Fluoroelastomer | Gases | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.22 kg | 18 AWG | |
AFS-151가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | ± 10% of set point | 20 GPM | 0.5 GPM | CE | Pigtail Leads | 50 μ or better | Gauge | None | 300 °F | -20 °F | 1/2 in | NPT Female | 1/2 in | NPT Female | Up to 1000 psi | 1000 psi (68 bar) | ± 1% | ± 1% max deviation | 316 Stainless Steel, Fluoroelastomer, Epoxy | Liquids | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.22 kg | 18 AWG | |
AFS-141가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | ± 10% of set point | 20 GPM | 0.5 GPM | CE | Pigtail Leads | 50 μ or better | Gauge | None | 225 °F | -20 °F | 1/2 in | NPT Female | 1/2 in | NPT Female | Up to 1000 psi | 1000 psi (68 bar) | ± 1% | ± 1% max deviation | Brass, Polysulfone, Stainless Steel, Fluoroelastomer | Water | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.22 kg | 18 AWG | |
AFS-131가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | ± 10% of set point | 20 GPM | 0.5 GPM | CE | Pigtail Leads | 50 μ or better | Gauge | None | 300 °F | -20 °F | 1/2 in | NPT Female | 1/2 in | NPT Female | Up to 1000 psi | 1000 psi (68 bar) | ± 1% | ± 1% max deviation | Brass, Stainless Steel, Fluoroelastomer | Oil | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.22 kg | 18 AWG |
