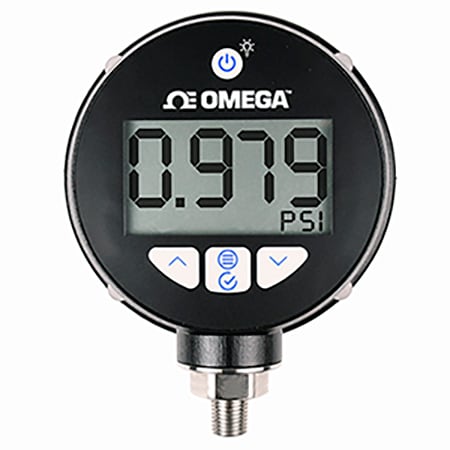

DPG509 고급 디지털 압력 게이지
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 91개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy Class | Accuracy Detail | Battery life | Calibration Note | Compliance | Data Retention | Display Segment Height | Display Type | Display Type Note | Electrical Output | Enclosure Material | Enclosure rotation after securing fluid connection | Isolation between Case and Output Terminations, Min | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Menu Complexity | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Pressure Accuracy | Pressure Cycles | Process Connection Size | Process Connection Type | Protective Boot | Stability | Storage Temperature, Max | Storage Temperature, Min | Supply Power Type | User Interface | Vibration | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DPG509-P500G08IVDCA-D가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Gauge | 500 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P500D08IVDCA-D가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Differential | 500 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P150G08IVDCA-D가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Gauge | 150 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P150D08IVDCA-D가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Differential | 150 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P100G08IVDCA-D가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Gauge | 100 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P050G08IVDCA-D가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Gauge | 50 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P100D08IVDCA-D가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Differential | 100 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P050D08IVDCA-D가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Differential | 50 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P030D08IVDCA-D가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Differential | 30 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P030G08IVDCA-D가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Gauge | 30 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P015G08IVDCA-D가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Gauge | 15 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P015D08IVDCA-D가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Differential | 15 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P005G08IVDCA-D가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Gauge | 5 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P005D08IVDCA-D가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Differential | 5 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | Current, Voltage | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | DC | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P500G08NBCA-D가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | None | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Gauge | 500 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | None | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | Battery | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P150G08NBCA-D가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | None | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Gauge | 150 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | None | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | Battery | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P500D08NBCA-D가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | None | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Differential | 500 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | None | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | Battery | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P150D08NBCA-D가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | None | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Differential | 150 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | None | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | Battery | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P100G08NBCA-D가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | None | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Gauge | 100 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | None | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | Battery | 4 membrane key switches | ASME B40.7 | 1.25 lb | |
DPG509-P100D08NBCA-D가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | < 0.1% | ± 0.08% Full Scale Span | 1000 hr | 5-point NIST traceable calibration is a configurable option (it does not come standard) | CE, RoHS 2 | 8 GB Micro SD card micro SD is included with configurations that have data logging option Can accept up to 32 GB Micro SD | 1 in | LCD | 4-digit LCD with backlight and 25 mm (1”) character height | None | Thermoplastic | ± 150° | 100MΩ @100 VDC | 316 Stainless Steel | Differential | 100 psi | 0 psi | Advanced + Basic Menu Options. | 4 | 54 °C | -17 °C | None | ± 0.08 % | 1 million | 1/4 in | NPT Male | Adds another layer of durability to the pressure gauge | ± 0.3% Span/Year | 82 °C | -40 °C | Battery | 4 membrane key switches | ASME B40.7 | 1.25 lb |
