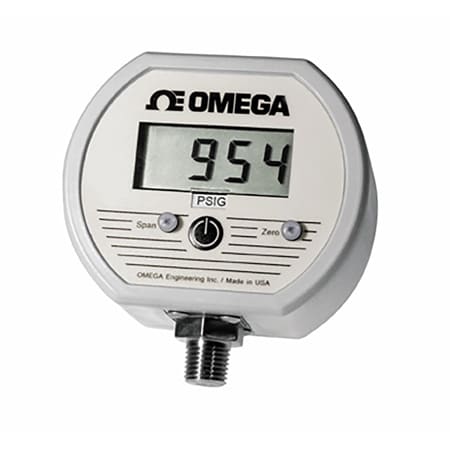

출력 기능이 있는 디지털 압력 게이지, NEMA 4X 케이스
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 28개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy Class | Accuracy Detail | Burst Pressure | Cable Length | Cable Length Note | Controls and Location | Display Segment Height | Display Type | Display Type Note | Electrical Output | Enclosure Material | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Pressure Accuracy | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Proof Pressure | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Power Type | Thermal Effects | Weight | Weight Note | Wire Gauge | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DPG1100B-30V/100G986,750 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 100 psi | -15 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | Battery | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100AD-500G981,320 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 500 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | AC/DC | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100AD-30V100G981,320 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 100 psi | -15 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | AC/DC | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100AD-300G981,320 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 300 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | AC/DC | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100AD-100G986,750 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 100 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | AC/DC | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100L-500G1,087,400 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 500 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | Loop Powered | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100AD-100A가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Absolute | 100 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | AC/DC | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100L-300G1,087,400 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 300 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | Loop Powered | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100L-100G1,087,400 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 100 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | Loop Powered | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100B-100G986,750 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 100 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | Battery | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100B-500G986,750 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 500 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | Battery | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100AD-60G981,320 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 60 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | AC/DC | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100AD-30G981,320 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 30 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | AC/DC | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100AD-15G981,320 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 15 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | AC/DC | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100AD-1KG981,320 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 1000 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | AC/DC | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100AD-05G981,320 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 5 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | AC/DC | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100L-60G1,087,400 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 60 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | Loop Powered | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100L-1KG1,087,400 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 1000 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | Loop Powered | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100L-30G1,087,400 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 30 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | Loop Powered | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG | |
DPG1100L-15G1,087,400 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0.1% to 0.25% | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 4x Full Scale | 0.9 m | 0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B) | Display zero/span, non-interactive, ± 15% range; test calibration level, 0 to 100% range; top-accessible, multiturn potentiometers; loop 4 mA and 20 mA internal potentiometers | 13 mm | LCD | LCD, 13 mm (0.5") digit height, 3 readings per second | 4 to 20 mA | Aluminum | 316 Stainless Steel | Gauge | 15 psi | 0 psi | 3.5 | 85 °C | -20 °C | ± 0.25 % | 1/4 in | NPT Male | 70 °C | 0 °C | 2x Full Scale | 95 °C | -55 °C | Battery Note:None | Loop Powered | ± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical; ± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range | 255 g | Approx 255 g (9 oz) | 22 AWG |
