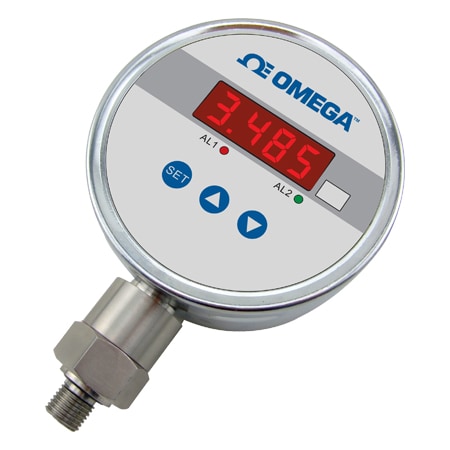

DPG104-DPG104S | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 44개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy Class	Accuracy Detail	Alarm Types	Burst Pressure	Display Size	Display Type	Electrical Output	Enclosure Ratings	Height	Length	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Number of Digits	Operating Temperature, Max	Operating Temperature, Min	Outer Diameter	Output Signal	Pressure Accuracy	Process Connection Size	Process Connection Type	Process Temperature, Max	Process Temperature, Min	Proof Pressure	Relative Humidity	Stability	Supply Power Type	Supply Voltage	Width
DPG104S-5.0KG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	5000 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-V100G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	100 psi	-15 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-3.0KG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	3000 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-2.0KG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	2000 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-015CG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Compound Gauge	15 psi	-15 psi	4	80 °C	-30 °C	100 mm	Current	± 0.5 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-1.0KG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	1000 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-005CG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Compound Gauge	5 psi	-5 psi	4	80 °C	-30 °C	100 mm	Current	± 0.5 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-500G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	500 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-300G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	300 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-500A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Absolute	500 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.5 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-300A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Absolute	300 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.5 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-200G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	200 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-100G가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	100 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-200A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Absolute	200 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.5 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-100A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Absolute	100 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.5 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-060G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	60 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-030A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Absolute	30 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.5 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-030G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	30 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-015G가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	± 0.25% for gauge pressure >5psi	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Gauge	15 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.25 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm
DPG104S-015A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges	Alarm, SPDT	4x Full Scale	14 mm (.56 in)	4 Digit LED	4 to 20 mA	IP40	45.5 mm	39 mm	316 Stainless Steel	Absolute	15 psi	0 psi	4	80 °C	-30 °C	100 mm	Current	± 0.5 %	1/4 in	NPT Male	150 °C	-40 °C	200% Full Scale	≤90%	≤0.1% FS/year	DC	13 to 30 Vdc	14 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy Class

Accuracy Detail

Alarm Types

Burst Pressure

Display Size

Display Type

Electrical Output

Enclosure Ratings

Height

Length

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Number of Digits

Operating Temperature, Max

Operating Temperature, Min

Outer Diameter

Output Signal

Pressure Accuracy

Process Connection Size

Process Connection Type

Process Temperature, Max

Process Temperature, Min

Proof Pressure

Relative Humidity

Stability

Supply Power Type

Supply Voltage

Width

수량 / 장바구니

DPG104S-5.0KG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

5000 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-V100G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

100 psi

-15 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-3.0KG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

3000 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-2.0KG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

2000 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-015CG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Compound Gauge

15 psi

-15 psi

80 °C

-30 °C

100 mm

Current

± 0.5 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-1.0KG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

1000 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-005CG가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Compound Gauge

5 psi

-5 psi

80 °C

-30 °C

100 mm

Current

± 0.5 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-500G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

500 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-300G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

300 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-500A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Absolute

500 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.5 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-300A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Absolute

300 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.5 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-200G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

200 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-100G가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

100 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-200A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Absolute

200 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.5 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-100A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Absolute

100 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.5 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-060G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

60 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-030A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Absolute

30 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.5 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-030G가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

30 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-015G가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

± 0.25% for gauge pressure >5psi

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Gauge

15 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.25 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm

DPG104S-015A가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

± 0.5% FS for all others including absolute, compound gauge, and Vacuum ranges

Alarm, SPDT

4x Full Scale

14 mm (.56 in)

4 Digit LED

4 to 20 mA

IP40

45.5 mm

39 mm

316 Stainless Steel

Absolute

15 psi

0 psi

80 °C

-30 °C

100 mm

Current

± 0.5 %

1/4 in

NPT Male

150 °C

-40 °C

200% Full Scale

≤90%

≤0.1% FS/year

13 to 30 Vdc

14 mm
