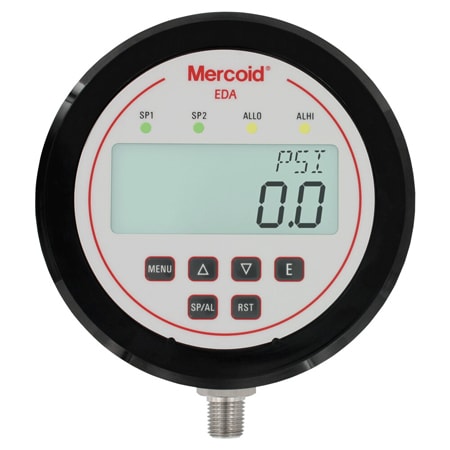

전자식 압력 제어, 방수형, 조정 가능한 SPDT, LED, 백라이트 디스플레이
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 24개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Applications | Compensated Temperature, Max | Compensated Temperature, Min | Compliance | Display Note | Display Type | Enclosure Ratings | Materials | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Power Consumption | Pressure Limits | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Repeatability | Repeatability Note | Set Point Adjustment | Stability | Supply Power Note | Supply Power Type | Supply Voltage | Switch Indication | Switch Rating | Switch Reset | Switch Type | Thermal Effects | Warm Up Time | Weight | Zero Setting Adjustable Range | Output Detail | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAW-N1E1-05T0-HV가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 150 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | N/A | 4.5 W | Up to 225 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | Excitation - 14 Vdc | AC | 120/240 Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | - | |
EDAW-N1E1-07T1-HV가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 600 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | Current | 4.5 W | Up to 900 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | Excitation - 14 Vdc | AC | 120/240 Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | 4-20 mA (direct or reverse output selection). | |
EDAW-N1E1-04T1-HV가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 100 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | Current | 4.5 W | Up to 150 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | Excitation - 14 Vdc | AC | 120/240 Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | 4-20 mA (direct or reverse output selection). | |
EDAW-N1E1-04T0-HV가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 100 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | N/A | 4.5 W | Up to 150 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | Excitation - 14 Vdc | AC | 120/240 Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | - | |
EDAW-N1E1-02T0-HV가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 20 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | N/A | 4.5 W | Up to 30 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | Excitation - 14 Vdc | AC | 120/240 Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | - | |
EDAW-N1E1-02T1-HV가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 20 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | Current | 4.5 W | Up to 30 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | Excitation - 14 Vdc | AC | 120/240 Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | 4-20 mA (direct or reverse output selection). | |
EDAW-N1E1-10T1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 3000 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | Current | 2.5 W | Up to 4500 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | 4-20 mA (direct or reverse output selection). | |
EDAW-N1E1-10T0가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 3000 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | N/A | 2.5 W | Up to 4500 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | - | |
EDAW-N1E1-09T1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 1500 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | Current | 2.5 W | Up to 2250 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | 4-20 mA (direct or reverse output selection). | |
EDAW-N1E1-09T0가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 1500 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | N/A | 2.5 W | Up to 2250 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | - | |
EDAW-N1E1-08T0가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 1000 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | N/A | 2.5 W | Up to 1500 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | - | |
EDAW-N1E1-08T1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 1000 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | Current | 2.5 W | Up to 1500 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | 4-20 mA (direct or reverse output selection). | |
EDAW-N1E1-07T1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 600 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | Current | 2.5 W | Up to 900 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | 4-20 mA (direct or reverse output selection). | |
EDAW-N1E1-07T0가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 600 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | N/A | 2.5 W | Up to 900 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | - | |
EDAW-N1E1-06T1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 300 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | Current | 2.5 W | Up to 450 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | 4-20 mA (direct or reverse output selection). | |
EDAW-N1E1-05T1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 150 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | Current | 2.5 W | Up to 225 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | 4-20 mA (direct or reverse output selection). | |
EDAW-N1E1-06T0가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 300 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | N/A | 2.5 W | Up to 450 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | - | |
EDAW-N1E1-05T0가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 150 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | N/A | 2.5 W | Up to 225 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | - | |
EDAW-N1E1-04T1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 100 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | Current | 2.5 W | Up to 150 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | 4-20 mA (direct or reverse output selection). | |
EDAW-N1E1-04T0가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter) | Filter Monitoring, HVAC, Industrial and Manufacturing | 122 °F | 32 °F | CE, UL | 4-digit backlit LCD (digits: 0.60˝H x 0.33˝ W) | LCD | IP66, NEMA Type 4X | Polycarbonate | 316 Stainless Steel | Gauge | 100 psi | 0 psi | Consult Factory | 4 | 140 °F | 20 °F | N/A | 2.5 W | Up to 150 psi | 1/4 in | NPT Male | 176 °F | 0 °F | ± 1% | ± 1% of FS (switching only) | Full Scale Adjustable (0-100%) | <± 2% of FS/year | 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s); Excitation - 14Vdc | AC/DC | 12 to 28 Vdc/Vac | External LED for each relay on the front panel | 5 A @ 120/240Vac, 1 A @ 30 Vdc | Manual/Automatic | (2) SPDT | ± 0.05% of FS/°F | <10 s | 1.18 lb | Menu Scalable within the Range | - |
