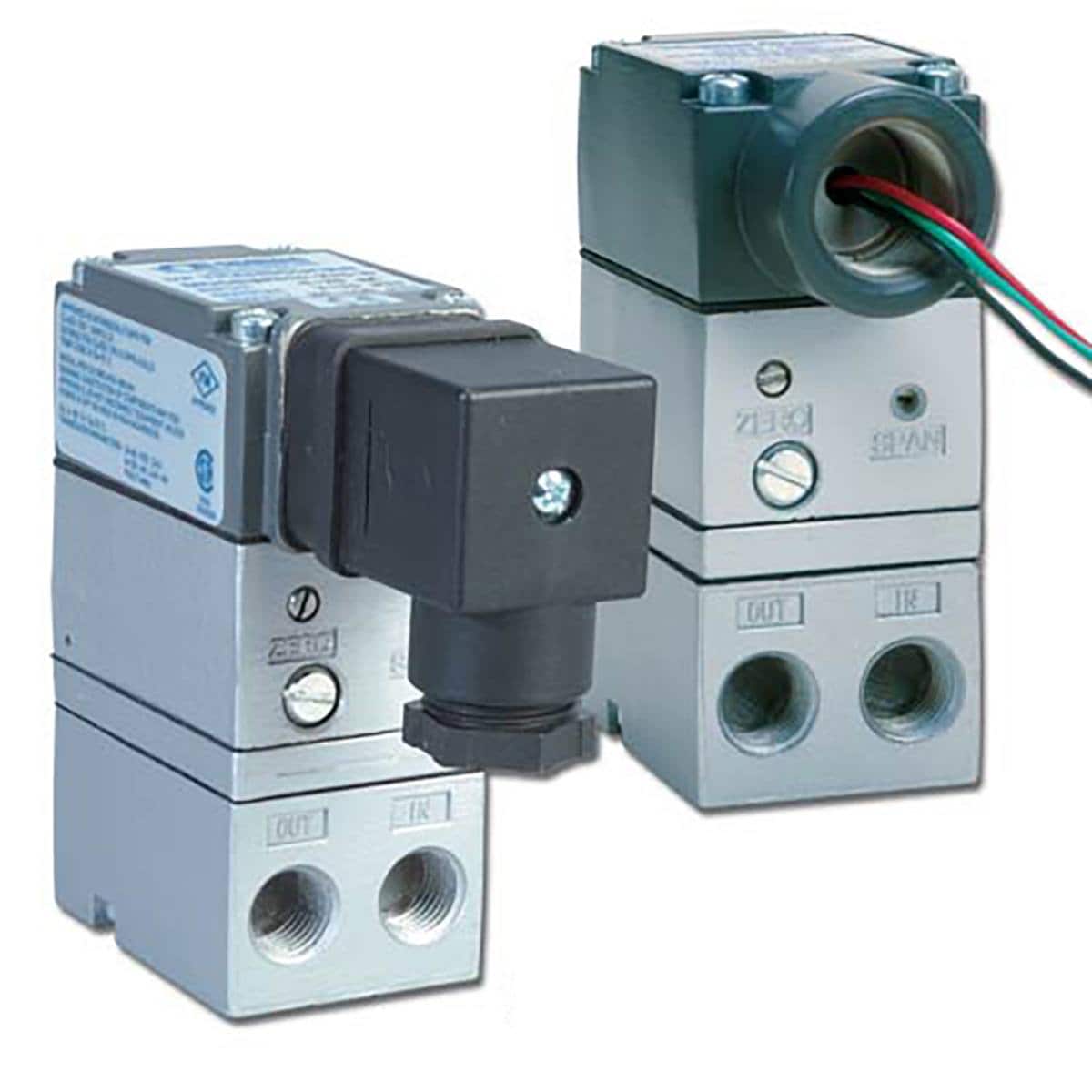

IP610 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 16개의 상품

제품 번호 / 가격	Brand	Accuracy	Air Supply Pressure, Max	Air Supply Pressure, Min	Approvals	Electrical Connection	Enclosure Ratings	Enclosure Type	Flow Rate Note	Hysteresis	Impedance	Input Control Signal	Input Current	Input Resistance	Input Voltage	Linearity	Material Construction Option	Materials	Measurement Pressure Type	Media Compatibility	Operating Temperature, Max	Operating Temperature, Min	Output Pressure, Max	Output Pressure, Min	Process Connection Size	Process Connection Type	Repeatability	Supply Pressure Sensitivity	Supply Pressure, Max	Total Air Consumption	Volumetric Flow Rate, Max
IP610-X120-D997,840 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	150 psi	125 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	IP65, NEMA Type 4	N/A	20 scfm @ 150 psig	<1.0% of span	280 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	120 psi	3 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	1.8 SCFH	20 SCFM
IP610-0120-D1,177,090 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	150 psi	125 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	IP65, NEMA Type 4	N/A	12 scfm @ 100 psig 20 scfm @ 150 psig	<1.0% of span	315 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	120 psi	0 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	6 SCFH	12 SCFM
IP610-X60-D1,081,400 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	150 psi	65 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	IP65, NEMA Type 4	N/A	12 scfm @ 100 psig	<1.0% of span	245 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	60 psi	2 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	1.8 SCFH	12 SCFM
IP610-X30-D1,053,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	100 psi	35 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	IP65, NEMA Type 4	N/A	4.5 scfm @ 25 psig 12 scfm @ 100 psig	<1.0% of span	240 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	30 psi	6 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	1.8 SCFH	4.5 SCFM
IP610-X15-D1,053,920 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	100 psi	20 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	IP65, NEMA Type 4	N/A	4.5 scfm @ 25 psig 12 scfm @ 100 psig	<1.0% of span	180 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	15 psi	3 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	1.8 SCFH	4.5 SCFM
IP610-X27-D1,053,920 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	100 psi	32 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	IP65, NEMA Type 4	N/A	4.5 scfm @ 25 psig 12 scfm @ 100 psig	<1.0% of span	240 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	27 psi	3 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	1.8 SCFH	4.5 SCFM
IP610-030-D1,177,090 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	100 psi	35 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	IP65, NEMA Type 4	N/A	12 scfm @ 100 psig 20 scfm @ 150 psig	<1.0% of span	290 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	30 psi	0 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	6 SCFH	12 SCFM
IP610-060-D1,177,090 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	100 psi	65 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	IP65, NEMA Type 4	N/A	12 scfm @ 100 psig 20 scfm @ 150 psig	<1.0% of span	300 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	60 psi	0 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	6 SCFH	12 SCFM
IP610-X1201,053,310 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	150 psi	125 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	IP65, NEMA Type 4	N/A	20 scfm @ 150 psig	<1.0% of span	280 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	120 psi	3 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	1.8 SCFH	20 SCFM
IP610-01201,103,640 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	150 psi	125 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	IP65, NEMA Type 4	N/A	12 scfm @ 100 psig 20 scfm @ 150 psig	<1.0% of span	315 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	120 psi	0 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	6 SCFH	12 SCFM
IP610-X271,020,900 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	100 psi	32 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	IP65, NEMA Type 4	N/A	4.5 scfm @ 25 psig 12 scfm @ 100 psig	<1.0% of span	240 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	27 psi	3 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	1.8 SCFH	4.5 SCFM
IP610-X301,026,530 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	100 psi	35 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	IP65, NEMA Type 4	N/A	4.5 scfm @ 25 psig 12 scfm @ 100 psig	<1.0% of span	240 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	30 psi	6 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	1.8 SCFH	4.5 SCFM
IP610-X15971,930 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	100 psi	20 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	IP65, NEMA Type 4	N/A	4.5 scfm @ 25 psig 12 scfm @ 100 psig	<1.0% of span	180 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	15 psi	3 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	1.8 SCFH	4.5 SCFM
IP610-0601,136,020 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	100 psi	65 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	IP65, NEMA Type 4	N/A	12 scfm @ 100 psig 20 scfm @ 150 psig	<1.0% of span	300 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	60 psi	0 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	6 SCFH	12 SCFM
IP610-0301,136,020 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	100 psi	35 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	IP65, NEMA Type 4	N/A	12 scfm @ 100 psig 20 scfm @ 150 psig	<1.0% of span	290 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	30 psi	0 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	6 SCFH	12 SCFM
IP610-X60997,270 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2.3 %	150 psi	65 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	IP65, NEMA Type 4	N/A	12 scfm @ 100 psig	<1.0% of span	245 Ω	N/A	4 to 20 mA	<300 Ω	N/A	<2.0% of span	N/A	Epoxy, Die-Cast Zinc	Gauge	Clean Dry Air	60 °C	-29 °C	60 psi	2 psi	1/4 in	NPT Female	<0.5% of span	±0.004% span per 1.0 psig	150 psi	1.8 SCFH	12 SCFM

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Air Supply Pressure, Max

Air Supply Pressure, Min

Approvals

Electrical Connection

Enclosure Ratings

Enclosure Type

Flow Rate Note

Hysteresis

Impedance

Input Control Signal

Input Current

Input Resistance

Input Voltage

Linearity

Material Construction Option

Materials

Measurement Pressure Type

Media Compatibility

Operating Temperature, Max

Operating Temperature, Min

Output Pressure, Max

Output Pressure, Min

Process Connection Size

Process Connection Type

Repeatability

Supply Pressure Sensitivity

Supply Pressure, Max

Total Air Consumption

Volumetric Flow Rate, Max

수량 / 장바구니

IP610-X120-D997,840 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

150 psi

125 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

IP65, NEMA Type 4

N/A

20 scfm @ 150 psig

<1.0% of span

280 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

120 psi

3 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

1.8 SCFH

20 SCFM

IP610-0120-D1,177,090 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

150 psi

125 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

IP65, NEMA Type 4

N/A

12 scfm @ 100 psig 20 scfm @ 150 psig

<1.0% of span

315 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

120 psi

0 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

6 SCFH

12 SCFM

IP610-X60-D1,081,400 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

150 psi

65 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

IP65, NEMA Type 4

N/A

12 scfm @ 100 psig

<1.0% of span

245 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

60 psi

2 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

1.8 SCFH

12 SCFM

IP610-X30-D1,053,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

100 psi

35 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

IP65, NEMA Type 4

N/A

4.5 scfm @ 25 psig 12 scfm @ 100 psig

<1.0% of span

240 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

30 psi

6 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

1.8 SCFH

4.5 SCFM

IP610-X15-D1,053,920 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

100 psi

20 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

IP65, NEMA Type 4

N/A

4.5 scfm @ 25 psig 12 scfm @ 100 psig

<1.0% of span

180 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

15 psi

3 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

1.8 SCFH

4.5 SCFM

IP610-X27-D1,053,920 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

100 psi

32 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

IP65, NEMA Type 4

N/A

4.5 scfm @ 25 psig 12 scfm @ 100 psig

<1.0% of span

240 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

27 psi

3 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

1.8 SCFH

4.5 SCFM

IP610-030-D1,177,090 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

100 psi

35 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

IP65, NEMA Type 4

N/A

12 scfm @ 100 psig 20 scfm @ 150 psig

<1.0% of span

290 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

30 psi

0 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

6 SCFH

12 SCFM

IP610-060-D1,177,090 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

100 psi

65 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

IP65, NEMA Type 4

N/A

12 scfm @ 100 psig 20 scfm @ 150 psig

<1.0% of span

300 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

60 psi

0 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

6 SCFH

12 SCFM

IP610-X1201,053,310 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

150 psi

125 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

IP65, NEMA Type 4

N/A

20 scfm @ 150 psig

<1.0% of span

280 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

120 psi

3 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

1.8 SCFH

20 SCFM

IP610-01201,103,640 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

150 psi

125 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

IP65, NEMA Type 4

N/A

12 scfm @ 100 psig 20 scfm @ 150 psig

<1.0% of span

315 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

120 psi

0 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

6 SCFH

12 SCFM

IP610-X271,020,900 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

100 psi

32 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

IP65, NEMA Type 4

N/A

4.5 scfm @ 25 psig 12 scfm @ 100 psig

<1.0% of span

240 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

27 psi

3 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

1.8 SCFH

4.5 SCFM

IP610-X301,026,530 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

100 psi

35 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

IP65, NEMA Type 4

N/A

4.5 scfm @ 25 psig 12 scfm @ 100 psig

<1.0% of span

240 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

30 psi

6 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

1.8 SCFH

4.5 SCFM

IP610-X15971,930 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

100 psi

20 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

IP65, NEMA Type 4

N/A

4.5 scfm @ 25 psig 12 scfm @ 100 psig

<1.0% of span

180 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

15 psi

3 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

1.8 SCFH

4.5 SCFM

IP610-0601,136,020 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

100 psi

65 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

IP65, NEMA Type 4

N/A

12 scfm @ 100 psig 20 scfm @ 150 psig

<1.0% of span

300 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

60 psi

0 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

6 SCFH

12 SCFM

IP610-0301,136,020 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

100 psi

35 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

IP65, NEMA Type 4

N/A

12 scfm @ 100 psig 20 scfm @ 150 psig

<1.0% of span

290 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

30 psi

0 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

6 SCFH

12 SCFM

IP610-X60997,270 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2.3 %

150 psi

65 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

IP65, NEMA Type 4

N/A

12 scfm @ 100 psig

<1.0% of span

245 Ω

N/A

4 to 20 mA

<300 Ω

N/A

<2.0% of span

N/A

Epoxy, Die-Cast Zinc

Gauge

Clean Dry Air

60 °C

-29 °C

60 psi

2 psi

1/4 in

NPT Female

<0.5% of span

±0.004% span per 1.0 psig

150 psi

1.8 SCFH

12 SCFM
