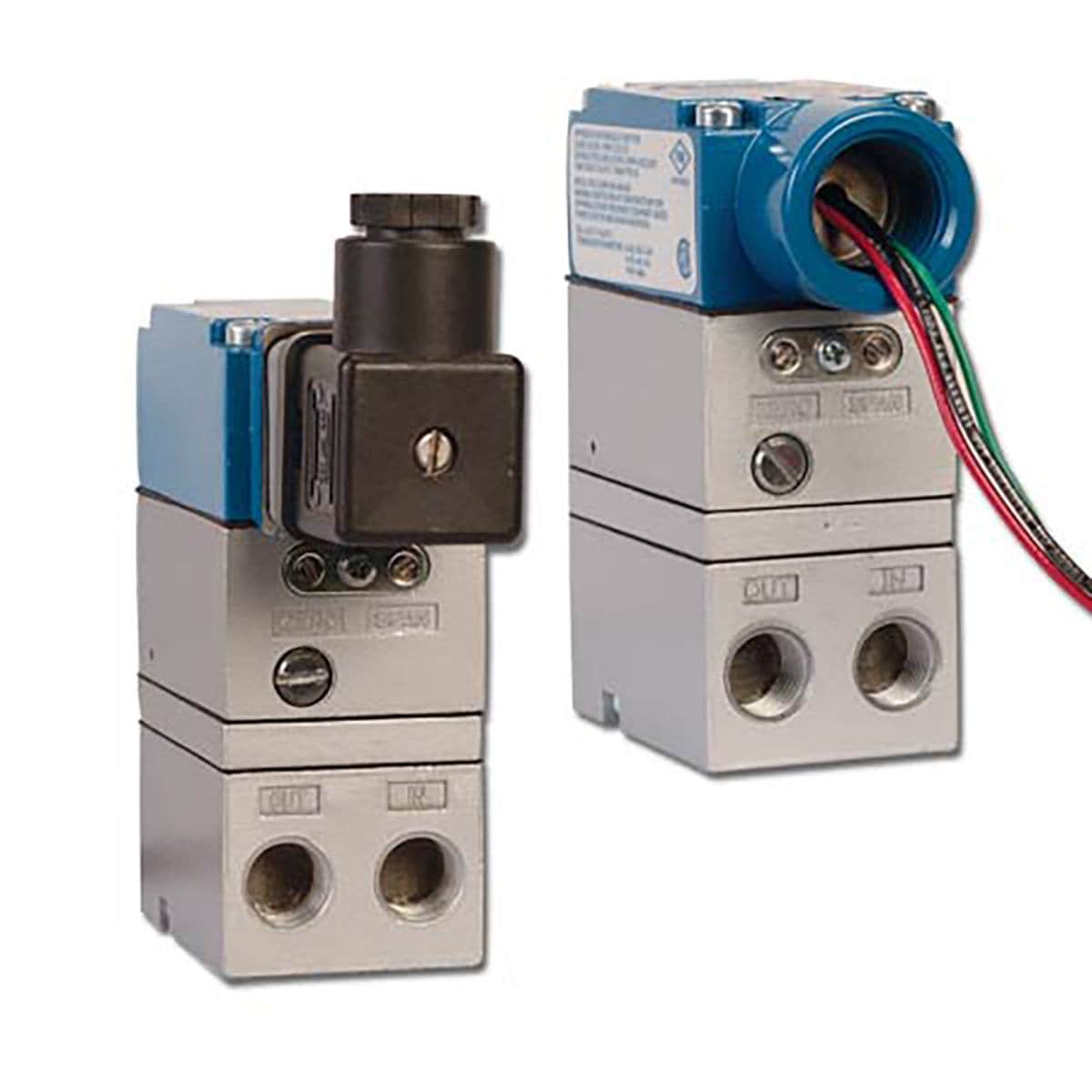

IP710 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 12개의 상품

제품 번호 / 가격	Brand	Accuracy	Air Supply Pressure, Max	Air Supply Pressure, Min	Approvals	Electrical Connection	Enclosure Type	Exhaust Capacity Note	Flow Rate Note	Height	Hysteresis	Impedance	Input Control Signal	Input Current	Input Voltage	Length	Linearity	Material Construction Option	Measurement Pressure Type	Media Compatibility	Output Pressure, Max	Output Pressure, Min	Process Connection Size	Process Connection Type	Repeatability	Supply Pressure Sensitivity	Total Air Consumption	Total Air Consumption Note	Volumetric Flow Rate, Max	Volumetric Flow Rate, Min	Width
IP710-X60-D1,527,050 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	130 psi	65 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	20 scfm @ 130 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	60 psi	2 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	4.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	20 SCFM	12 SCFM	2.125 in
IP710-X30-D1,453,210 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	100 psi	35 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	4.5 scfm @ 25 psig 12 scfm @ 100 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	30 psi	6 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	1.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	4.5 SCFM	12 SCFM	2.125 in
IP710-X27-D1,453,210 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	100 psi	32 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	4.5 scfm @ 25 psig 12 scfm @ 100 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	27 psi	3 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	1.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	4.5 SCFM	12 SCFM	2.125 in
IP710-X17-D1,453,210 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	100 psi	22 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	4.5 scfm @ 25 psig 12 scfm @ 100 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	17 psi	1 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	1.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	4.5 SCFM	12 SCFM	2.125 in
IP710-X15-D1,304,390 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	100 psi	20 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	4.5 scfm @ 25 psig 12 scfm @ 100 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	15 psi	3 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	1.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	4.5 SCFM	12 SCFM	2.125 in
IP710-X1001,383,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	130 psi	105 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	20 scfm @ 130 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	100 psi	2 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	4.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	20 SCFM	12 SCFM	2.125 in
IP710-X301,408,530 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	100 psi	35 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	4.5 scfm @ 25 psig 12 scfm @ 100 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	30 psi	6 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	1.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	4.5 SCFM	12 SCFM	2.125 in
IP710-X601,383,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	130 psi	65 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	20 scfm @ 130 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	60 psi	2 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	4.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	20 SCFM	12 SCFM	2.125 in
IP710-X271,400,790 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	100 psi	32 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	4.5 scfm @ 25 psig 12 scfm @ 100 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	27 psi	3 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	1.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	4.5 SCFM	12 SCFM	2.125 in
IP710-X171,445,300 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	100 psi	22 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	4.5 scfm @ 25 psig 12 scfm @ 100 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	17 psi	1 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	1.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	4.5 SCFM	12 SCFM	2.125 in
IP710-X151,408,530 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	100 psi	20 psi	Class I, II, III, Div. 1,Groups C, D, E, F and G	1/2 in NPT Female Conduit	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	4.5 scfm @ 25 psig 12 scfm @ 100 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	15 psi	3 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	1.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	4.5 SCFM	12 SCFM	2.125 in
IP710-X100-D1,527,050 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1.5 %	130 psi	105 psi	Class I, Div. 1, Groups C and D	DIN 43560 connector	N/A	Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM	20 scfm @ 130 psig	4 in	<1.0% of span	10 kΩ	N/A	N/A	0 to 5 Vdc	2.125 in	<1.0% of span	General Purpose	Gauge	Air	100 psi	2 psi	1/4 in	NPT Female	<0.5% of span	±0.15% span per 1.5 psig	4.5 SCFH	Air Consumption (Max) at Midrange: 0.1 SCFM	20 SCFM	12 SCFM	2.125 in

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Air Supply Pressure, Max

Air Supply Pressure, Min

Approvals

Electrical Connection

Enclosure Type

Exhaust Capacity Note

Flow Rate Note

Height

Hysteresis

Impedance

Input Control Signal

Input Current

Input Voltage

Length

Linearity

Material Construction Option

Measurement Pressure Type

Media Compatibility

Output Pressure, Max

Output Pressure, Min

Process Connection Size

Process Connection Type

Repeatability

Supply Pressure Sensitivity

Total Air Consumption

Total Air Consumption Note

Volumetric Flow Rate, Max

Volumetric Flow Rate, Min

Width

수량 / 장바구니

IP710-X60-D1,527,050 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

130 psi

65 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

20 scfm @ 130 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

60 psi

2 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

4.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

20 SCFM

12 SCFM

2.125 in

IP710-X30-D1,453,210 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

100 psi

35 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

4.5 scfm @ 25 psig 12 scfm @ 100 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

30 psi

6 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

1.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

4.5 SCFM

12 SCFM

2.125 in

IP710-X27-D1,453,210 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

100 psi

32 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

4.5 scfm @ 25 psig 12 scfm @ 100 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

27 psi

3 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

1.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

4.5 SCFM

12 SCFM

2.125 in

IP710-X17-D1,453,210 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

100 psi

22 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

4.5 scfm @ 25 psig 12 scfm @ 100 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

17 psi

1 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

1.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

4.5 SCFM

12 SCFM

2.125 in

IP710-X15-D1,304,390 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

100 psi

20 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

4.5 scfm @ 25 psig 12 scfm @ 100 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

15 psi

3 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

1.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

4.5 SCFM

12 SCFM

2.125 in

IP710-X1001,383,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

130 psi

105 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

20 scfm @ 130 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

100 psi

2 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

4.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

20 SCFM

12 SCFM

2.125 in

IP710-X301,408,530 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

100 psi

35 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

4.5 scfm @ 25 psig 12 scfm @ 100 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

30 psi

6 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

1.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

4.5 SCFM

12 SCFM

2.125 in

IP710-X601,383,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

130 psi

65 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

20 scfm @ 130 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

60 psi

2 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

4.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

20 SCFM

12 SCFM

2.125 in

IP710-X271,400,790 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

100 psi

32 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

4.5 scfm @ 25 psig 12 scfm @ 100 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

27 psi

3 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

1.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

4.5 SCFM

12 SCFM

2.125 in

IP710-X171,445,300 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

100 psi

22 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

4.5 scfm @ 25 psig 12 scfm @ 100 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

17 psi

1 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

1.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

4.5 SCFM

12 SCFM

2.125 in

IP710-X151,408,530 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

100 psi

20 psi

Class I, II, III, Div. 1,Groups C, D, E, F and G

1/2 in NPT Female Conduit

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

4.5 scfm @ 25 psig 12 scfm @ 100 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

15 psi

3 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

1.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

4.5 SCFM

12 SCFM

2.125 in

IP710-X100-D1,527,050 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1.5 %

130 psi

105 psi

Class I, Div. 1, Groups C and D

DIN 43560 connector

N/A

Exhaust Capacity @ 5 psig (0.4 bar) Above Setpoint: 2 SCFM

20 scfm @ 130 psig

4 in

<1.0% of span

10 kΩ

N/A

0 to 5 Vdc

2.125 in

<1.0% of span

General Purpose

Gauge

Air

100 psi

2 psi

1/4 in

NPT Female

<0.5% of span

±0.15% span per 1.5 psig

4.5 SCFH

Air Consumption (Max) at Midrange: 0.1 SCFM

20 SCFM

12 SCFM

2.125 in
