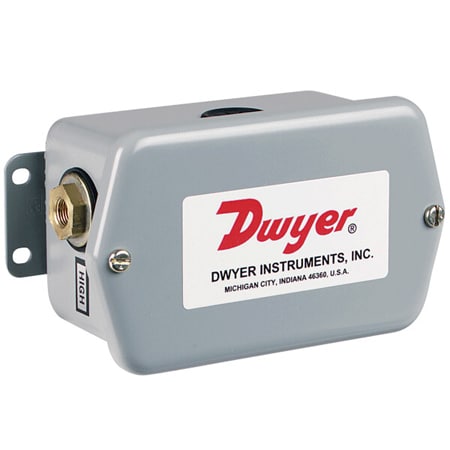

습식/습식 차압 변환기, 4-20 mA, 온도 보상
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 9개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Display Type | Electrical Connection | Electrical Output | Enclosure Ratings | Long Term Stability | Loop Resistance | Materials | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Number of Wires | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Size | Process Connection Type | Proof Pressure | Span Adjustment | Supply Power Type | Supply Voltage | Thermal Effects | Weight | Zero Setting Adjustable Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
647-8가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | N/A | Screw Terminal | 4 to 20 mA | IP56, NEMA Type 4 | ± 1.5% FS output/year | 400Ω @ 18 VDC, 600Ω @ 24 VDC, 1000Ω @ 30 VDC | Epoxy, Steel | Brass, Fluorosilicone, Glass-filled Polyester, Silicone, Vinyl | Differential | 30 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 2 | 50 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 60 psi | Adjustable | DC | 18 to 30 Vdc | Zero: ± 0.05% FS/°F, Span: ± 0.05% rdg/°F | 397 g | Adjustable, ± 10% | |
647-7가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | N/A | Screw Terminal | 4 to 20 mA | IP56, NEMA Type 4 | ± 1.5% FS output/year | 400Ω @ 18 VDC, 600Ω @ 24 VDC, 1000Ω @ 30 VDC | Epoxy, Steel | Brass, Fluorosilicone, Glass-filled Polyester, Silicone, Vinyl | Differential | 15 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 2 | 50 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 45 psi | Adjustable | DC | 18 to 30 Vdc | Zero: ± 0.05% FS/°F, Span: ± 0.05% rdg/°F | 397 g | Adjustable, ± 10% | |
647-5가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | N/A | Screw Terminal | 4 to 20 mA | IP56, NEMA Type 4 | ± 1.5% FS output/year | 400Ω @ 18 VDC, 600Ω @ 24 VDC, 1000Ω @ 30 VDC | Epoxy, Steel | Brass, Fluorosilicone, Glass-filled Polyester, Silicone, Vinyl | Differential | 1 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 2 | 50 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 20 psi | Adjustable | DC | 18 to 30 Vdc | Zero: ± 0.05% FS/°F, Span: ± 0.05% rdg/°F | 397 g | Adjustable, ± 10% | |
647-6가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | N/A | Screw Terminal | 4 to 20 mA | IP56, NEMA Type 4 | ± 1.5% FS output/year | 400Ω @ 18 VDC, 600Ω @ 24 VDC, 1000Ω @ 30 VDC | Epoxy, Steel | Brass, Fluorosilicone, Glass-filled Polyester, Silicone, Vinyl | Differential | 5 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 2 | 50 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 20 psi | Adjustable | DC | 18 to 30 Vdc | Zero: ± 0.05% FS/°F, Span: ± 0.05% rdg/°F | 397 g | Adjustable, ± 10% | |
647-4가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | N/A | Screw Terminal | 4 to 20 mA | IP56, NEMA Type 4 | ± 1.5% FS output/year | 400Ω @ 18 VDC, 600Ω @ 24 VDC, 1000Ω @ 30 VDC | Epoxy, Steel | Brass, Fluorosilicone, Glass-filled Polyester, Silicone, Vinyl | Differential | 10 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 2 | 50 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 20 psi | Adjustable | DC | 18 to 30 Vdc | Zero: ± 0.05% FS/°F, Span: ± 0.05% rdg/°F | 397 g | Adjustable, ± 10% | |
647-3가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | N/A | Screw Terminal | 4 to 20 mA | IP56, NEMA Type 4 | ± 1.5% FS output/year | 400Ω @ 18 VDC, 600Ω @ 24 VDC, 1000Ω @ 30 VDC | Epoxy, Steel | Brass, Fluorosilicone, Glass-filled Polyester, Silicone, Vinyl | Differential | 5 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 2 | 50 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 20 psi | Adjustable | DC | 18 to 30 Vdc | Zero: ± 0.05% FS/°F, Span: ± 0.05% rdg/°F | 397 g | Adjustable, ± 10% | |
647-0가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | N/A | Screw Terminal | 4 to 20 mA | IP56, NEMA Type 4 | ± 1.5% FS output/year | 400Ω @ 18 VDC, 600Ω @ 24 VDC, 1000Ω @ 30 VDC | Epoxy, Steel | Brass, Fluorosilicone, Glass-filled Polyester, Silicone, Vinyl | Differential | 1 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 2 | 50 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 20 psi | Adjustable | DC | 18 to 30 Vdc | Zero: ± 0.05% FS/°F, Span: ± 0.05% rdg/°F | 397 g | Adjustable, ± 10% | |
647-1가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | N/A | Screw Terminal | 4 to 20 mA | IP56, NEMA Type 4 | ± 1.5% FS output/year | 400Ω @ 18 VDC, 600Ω @ 24 VDC, 1000Ω @ 30 VDC | Epoxy, Steel | Brass, Fluorosilicone, Glass-filled Polyester, Silicone, Vinyl | Differential | 3 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 2 | 50 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 20 psi | Adjustable | DC | 18 to 30 Vdc | Zero: ± 0.05% FS/°F, Span: ± 0.05% rdg/°F | 397 g | Adjustable, ± 10% | |
647-2가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | N/A | Screw Terminal | 4 to 20 mA | IP56, NEMA Type 4 | ± 1.5% FS output/year | 400Ω @ 18 VDC, 600Ω @ 24 VDC, 1000Ω @ 30 VDC | Epoxy, Steel | Brass, Fluorosilicone, Glass-filled Polyester, Silicone, Vinyl | Differential | 25 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 2 | 50 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 20 psi | Adjustable | DC | 18 to 30 Vdc | Zero: ± 0.05% FS/°F, Span: ± 0.05% rdg/°F | 397 g | Adjustable, ± 10% |
