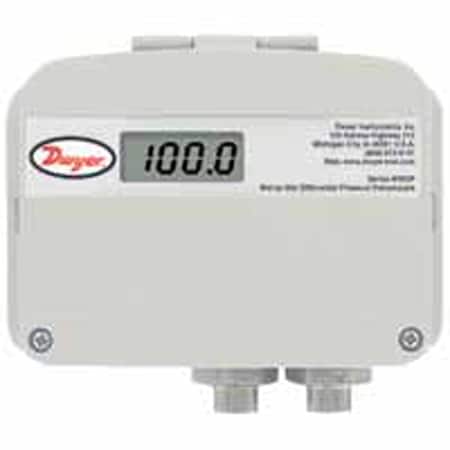

Series-WWDP | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 6개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Burst Pressure	Compensated Temperature, Max	Compliance	Display Type	Electrical Connection	Electrical Output	Enclosure Ratings	Long Term Stability	Loop Resistance	Measurement Pressure Type	Measurement Pressure, Max	Media Compatibility	Mounting Note	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Power Consumption	Pressure Note	Process Connection Size	Process Connection Type	Proof Pressure	Response Time	Response Time Note	Span Adjustment	Supply Power Type	Supply Voltage	Thermal Effects	Thermal Effects Note	Weight	Zero Setting Adjustable Range
WWDP-2-LCD가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS	10,000 psi Maximum	54 °C	CE	LCD	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc	IP56, NEMA Type 4	± 0.5%/year	1000 Ω	Differential	100 psi	Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids	Vertical with Downward Pressure Ports	85 °C	-20 °C	Field selectable	max 40 mA	Selectable 10, 20, 50,100 psid	1/8 in	NPT Female	Up to 220 psi	1 to 5 s	1 to 5 s (selectable)	Menu Option	AC/DC	12 to 30 Vdc/18 to 28 Vac	2% FS/100°F	2% FS/100°F (50°C) includes zero and span	680.4 g	Digital “re” zero button (should be used when changing ranges)
WWDP-3가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS	10,000 psi Maximum	54 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc	IP56, NEMA Type 4	± 0.5%/year	1000 Ω	Differential	250 psi	Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids	Vertical with Downward Pressure Ports	85 °C	-20 °C	Field selectable	max 40 mA	Selectable 25, 50,125, 250 psid	1/8 in	NPT Female	Up to 550 psi	1 to 5 s	1 to 5 s (selectable)	Menu Option	AC/DC	12 to 30 Vdc/18 to 28 Vac	2% FS/100°F	2% FS/100°F (50°C) includes zero and span	680.4 g	Digital “re” zero button (should be used when changing ranges)
WWDP-1-LCD가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS	10,000 psi Maximum	54 °C	CE	LCD	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc	IP56, NEMA Type 4	± 0.5%/year	1000 Ω	Differential	50 psi	Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids	Vertical with Downward Pressure Ports	85 °C	-20 °C	Field selectable	max 40 mA	Selectable 5, 10, 25, 50 psid	1/8 in	NPT Female	Up to 111 psi	1 to 5 s	1 to 5 s (selectable)	Menu Option	AC/DC	12 to 30 Vdc/18 to 28 Vac	2% FS/100°F	2% FS/100°F (50°C) includes zero and span	680.4 g	Digital “re” zero button (should be used when changing ranges)
WWDP-2가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS	10,000 psi Maximum	54 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc	IP56, NEMA Type 4	± 0.5%/year	1000 Ω	Differential	100 psi	Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids	Vertical with Downward Pressure Ports	85 °C	-20 °C	Field selectable	max 40 mA	Selectable 10, 20, 50,100 psid	1/8 in	NPT Female	Up to 220 psi	1 to 5 s	1 to 5 s (selectable)	Menu Option	AC/DC	12 to 30 Vdc/18 to 28 Vac	2% FS/100°F	2% FS/100°F (50°C) includes zero and span	680.4 g	Digital “re” zero button (should be used when changing ranges)
WWDP-1가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS	10,000 psi Maximum	54 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc	IP56, NEMA Type 4	± 0.5%/year	1000 Ω	Differential	50 psi	Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids	Vertical with Downward Pressure Ports	85 °C	-20 °C	Field selectable	max 40 mA	Selectable 5, 10, 25, 50 psid	1/8 in	NPT Female	Up to 110 psi	1 to 5 s	1 to 5 s (selectable)	Menu Option	AC/DC	12 to 30 Vdc/18 to 28 Vac	2% FS/100°F	2% FS/100°F (50°C) includes zero and span	680.4 g	Digital “re” zero button (should be used when changing ranges)
WWDP-3-LCD가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS	10,000 psi Maximum	54 °C	CE	LCD	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc	IP56, NEMA Type 4	± 0.5%/year	1000 Ω	Differential	250 psi	Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids	Vertical with Downward Pressure Ports	85 °C	-20 °C	Field selectable	max 40 mA	Selectable 10, 20, 50,100 psid	1/8 in	NPT Female	Up to 550 psi	1 to 5 s	1 to 5 s (selectable)	Menu Option	AC/DC	12 to 30 Vdc/18 to 28 Vac	2% FS/100°F	2% FS/100°F (50°C) includes zero and span	680.4 g	Digital “re” zero button (should be used when changing ranges)

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Burst Pressure

Compensated Temperature, Max

Compensated Temperature, Min

Compliance

Display Type

Electrical Connection

Electrical Output

Enclosure Ratings

Long Term Stability

Loop Resistance

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Mounting Note

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Power Consumption

Pressure Note

Process Connection Size

Process Connection Type

Proof Pressure

Response Time

Response Time Note

Span Adjustment

Supply Power Type

Supply Voltage

Thermal Effects

Thermal Effects Note

Weight

Zero Setting Adjustable Range

수량 / 장바구니

WWDP-2-LCD가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS

10,000 psi Maximum

54 °C

0 °C

LCD

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc

IP56, NEMA Type 4

± 0.5%/year

1000 Ω

Differential

100 psi

0 psi

Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids

Vertical with Downward Pressure Ports

85 °C

-20 °C

Field selectable

max 40 mA

Selectable 10, 20, 50,100 psid

1/8 in

NPT Female

Up to 220 psi

1 to 5 s

1 to 5 s (selectable)

Menu Option

AC/DC

12 to 30 Vdc/18 to 28 Vac

2% FS/100°F

2% FS/100°F (50°C) includes zero and span

680.4 g

Digital “re” zero button (should be used when changing ranges)

WWDP-3가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS

10,000 psi Maximum

54 °C

0 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc

IP56, NEMA Type 4

± 0.5%/year

1000 Ω

Differential

250 psi

0 psi

Vertical with Downward Pressure Ports

85 °C

-20 °C

Field selectable

max 40 mA

Selectable 25, 50,125, 250 psid

1/8 in

NPT Female

Up to 550 psi

1 to 5 s

1 to 5 s (selectable)

Menu Option

AC/DC

12 to 30 Vdc/18 to 28 Vac

2% FS/100°F

2% FS/100°F (50°C) includes zero and span

680.4 g

Digital “re” zero button (should be used when changing ranges)

WWDP-1-LCD가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS

10,000 psi Maximum

54 °C

0 °C

LCD

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc

IP56, NEMA Type 4

± 0.5%/year

1000 Ω

Differential

50 psi

0 psi

Vertical with Downward Pressure Ports

85 °C

-20 °C

Field selectable

max 40 mA

Selectable 5, 10, 25, 50 psid

1/8 in

NPT Female

Up to 111 psi

1 to 5 s

1 to 5 s (selectable)

Menu Option

AC/DC

12 to 30 Vdc/18 to 28 Vac

2% FS/100°F

2% FS/100°F (50°C) includes zero and span

680.4 g

Digital “re” zero button (should be used when changing ranges)

WWDP-2가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS

10,000 psi Maximum

54 °C

0 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc

IP56, NEMA Type 4

± 0.5%/year

1000 Ω

Differential

100 psi

0 psi

Vertical with Downward Pressure Ports

85 °C

-20 °C

Field selectable

max 40 mA

Selectable 10, 20, 50,100 psid

1/8 in

NPT Female

Up to 220 psi

1 to 5 s

1 to 5 s (selectable)

Menu Option

AC/DC

12 to 30 Vdc/18 to 28 Vac

2% FS/100°F

2% FS/100°F (50°C) includes zero and span

680.4 g

Digital “re” zero button (should be used when changing ranges)

WWDP-1가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS

10,000 psi Maximum

54 °C

0 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc

IP56, NEMA Type 4

± 0.5%/year

1000 Ω

Differential

50 psi

0 psi

Vertical with Downward Pressure Ports

85 °C

-20 °C

Field selectable

max 40 mA

Selectable 5, 10, 25, 50 psid

1/8 in

NPT Female

Up to 110 psi

1 to 5 s

1 to 5 s (selectable)

Menu Option

AC/DC

12 to 30 Vdc/18 to 28 Vac

2% FS/100°F

2% FS/100°F (50°C) includes zero and span

680.4 g

Digital “re” zero button (should be used when changing ranges)

WWDP-3-LCD가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

All pressure ranges have ± 1% FS accuracy except the lowest selectable range of each unit is ± 2% FS

10,000 psi Maximum

54 °C

0 °C

LCD

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc

IP56, NEMA Type 4

± 0.5%/year

1000 Ω

Differential

250 psi

0 psi

Vertical with Downward Pressure Ports

85 °C

-20 °C

Field selectable

max 40 mA

Selectable 10, 20, 50,100 psid

1/8 in

NPT Female

Up to 550 psi

1 to 5 s

1 to 5 s (selectable)

Menu Option

AC/DC

12 to 30 Vdc/18 to 28 Vac

2% FS/100°F

2% FS/100°F (50°C) includes zero and span

680.4 g

Digital “re” zero button (should be used when changing ranges)
