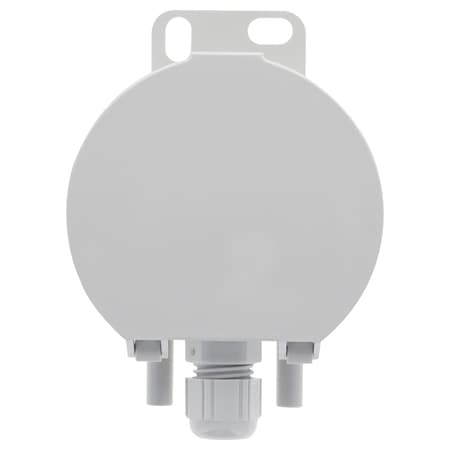

진공 차압 변환기, 조절 가능한 범위, 조절 가능한 응답
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 28개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Applications | Cable Conduit Length | Cable Conduit Length Note | Cable Conduit Type | Compliance | Dial Depth | Dial Outer Diameter | Display Type | Electrical Connection | Electrical Output | Enclosure Ratings | Long Term Stability | Loop Resistance | Materials | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Mounting Note | Number of Wires | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Power Consumption | Process Connection Size | Process Connection Type | Relative Humidity | Response Time | Response Time Note | Sensor Type | Supply Power Type | Supply Voltage | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
685-12-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 2500 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-13-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 5000 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-11-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 1250 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-10-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 750 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-09-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 250 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-08-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 40 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-07-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 25 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-05-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 15 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-06-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 20 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-03-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 5 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-02-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 3 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-01-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 2 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-13가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 4 to 20 mA | IP54 | ≤ ± 1% RSS/year | 500 Ω max | ABS, Polyamide | Differential | 5000 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 2 | 70 °C | -20 °C | Current | 21 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | DC | 18 to 30 Vdc | 46 g | |
685-00-V가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 0 to 10 V | IP54 | ≤ ± 1% RSS/year | ≥ 1 kΩ (≤ 10 mA) | ABS, Polyamide | Differential | 1 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 3 | 70 °C | -20 °C | Voltage | 40 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | AC/DC | 18 to 30 Vac/Vdc | 46 g | |
685-12가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 4 to 20 mA | IP54 | ≤ ± 1% RSS/year | 500 Ω max | ABS, Polyamide | Differential | 2500 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 2 | 70 °C | -20 °C | Current | 21 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | DC | 18 to 30 Vdc | 46 g | |
685-11가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 4 to 20 mA | IP54 | ≤ ± 1% RSS/year | 500 Ω max | ABS, Polyamide | Differential | 1250 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 2 | 70 °C | -20 °C | Current | 21 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | DC | 18 to 30 Vdc | 46 g | |
685-09가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 4 to 20 mA | IP54 | ≤ ± 1% RSS/year | 500 Ω max | ABS, Polyamide | Differential | 250 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 2 | 70 °C | -20 °C | Current | 21 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | DC | 18 to 30 Vdc | 46 g | |
685-10가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 4 to 20 mA | IP54 | ≤ ± 1% RSS/year | 500 Ω max | ABS, Polyamide | Differential | 750 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 2 | 70 °C | -20 °C | Current | 21 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | DC | 18 to 30 Vdc | 46 g | |
685-08가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 4 to 20 mA | IP54 | ≤ ± 1% RSS/year | 500 Ω max | ABS, Polyamide | Differential | 40 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 2 | 70 °C | -20 °C | Current | 21 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | DC | 18 to 30 Vdc | 46 g | |
685-07가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ≤ ± 0.5% RSS (BFSL), ± 1 Pa, Accuracy specifications are based on measurements at 73°F (23°C) | Clean Rooms, Filter Monitoring, Fluid Measurement and Control | 15 mm | 15 mm (across flats) | Cap Nut Conduit | CE, UKCA | 28 mm | 66 mm | N/A | Cable Gland with Screw Terminal block | 4 to 20 mA | IP54 | ≤ ± 1% RSS/year | 500 Ω max | ABS, Polyamide | Differential | 25 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Panel Mount | 2 | 70 °C | -20 °C | Current | 21 mA | 6 mm | Stem | 0 to 95% RH, non-condensing | 1 s | Default: 1 s, User Selectable: 200 ms | Piezoresistive Pressure Sensor | DC | 18 to 30 Vdc | 46 g |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
