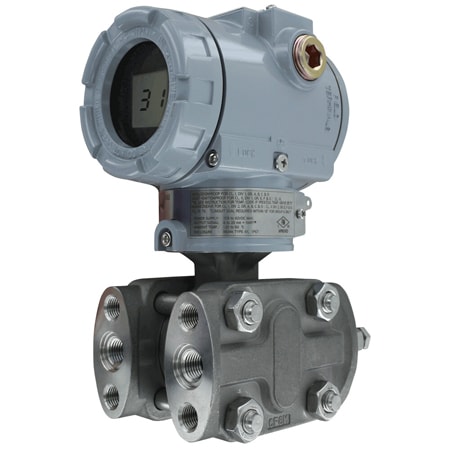

스마트 차압 트랜스미터, HART®, 위험 지역
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 14개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Burst Pressure | Compliance | Damping Time | Display Type | Electrical Connection | Electrical Output | Enclosure Ratings | Long Term Stability | Loop Resistance | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Proof Pressure | Response Time | Supply Power Type | Supply Voltage | Thermal Effects | Turndown Ratio | Weight | Number of Digits | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3100D-7-FM-1-1-LCD가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 1000 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 80 °C | -30 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | 5 | |
3100D-5-FM-1-1-LCD가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 100 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 80 °C | -30 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | 5 | |
3100D-6-FM-1-1-LCD가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 300 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 80 °C | -30 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | 5 | |
3100D-4-FM-1-1-LCD가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 750 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 80 °C | -30 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | 5 | |
3100D-3-FM-1-1-LCD가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 150 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 80 °C | -30 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | 5 | |
3100D-1-FM-1-1-LCD가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 6 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 80 °C | -30 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 20:1 | 3.9 kg | 5 | |
3100D-2-FM-1-1-LCD가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | LCD | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 30 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 80 °C | -30 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | 5 | |
3100D-7-FM-1-1가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 1000 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | - | |
3100D-6-FM-1-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 300 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | - | |
3100D-5-FM-1-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 100 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | - | |
3100D-4-FM-1-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 750 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | - | |
3100D-2-FM-1-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 30 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | - | |
3100D-3-FM-1-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 150 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 100:1 | 3.9 kg | - | |
3100D-1-FM-1-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | 10,000 psi Maximum | CE, FM | 0.25 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA, HART | Hazardous Location Rated, IP66, NEMA Type 4X | ± 0.125% FSO/year | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω | 316L Stainless Steel, Fluoroelastomer | Differential | 6 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | HART® Communication | Current, HART | 1/4 in | NPT Female | 120 °C | -40 °C | Up to 2000 psi | 0.12 s | DC | 11.9 to 45 Vdc | ± 0.125% span/32°C | 20:1 | 3.9 kg | - |
