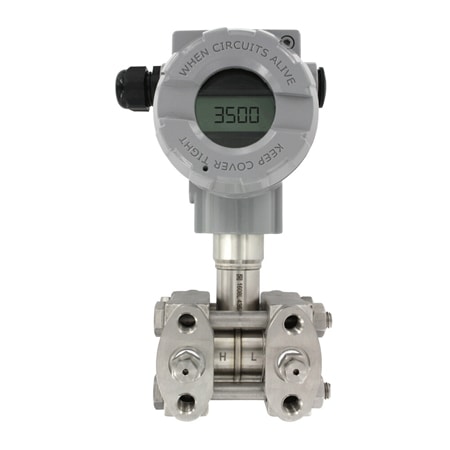

스마트 차압 트랜스미터, HART®, ATEX/IECEX, 맞춤형
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 6개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Applications | Compliance | Compliance Note | Damping Time | Display Type | Electrical Connection | Electrical Output | Enclosure Ratings | Long Term Stability | MTBF | Materials | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Size | Process Connection Type | Response Time | Supply Power Type | Supply Voltage | Thermal Effects | Turndown Ratio | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3500-AL-15-NF-2가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | Chemicals, Filter Monitoring, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, Level Monitoring and Control, Oil, Petrochemical, Pump Control | CE | CE; -IS, -FP suffix: ATEX Compliant CE 0518 II 2G ia/db IIC T6/T5 Gb Ta<80°C, T5 / II 2D Ex ia/tb IIIC T85°C/T100°C Db. TypeCertificate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013,EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certificate of Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2006, IEC 60079-31:2013. | 0 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA | IP66, IP67, NEMA Type 4X | ≤0.075% FSO/3 years | 1,000,000 hours | Aluminum | 316L Stainless Steel, FKM | Differential | 1000 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | Current | 1/4 in | NPT Female | 16 to 480 ms | DC | 10 to 55 Vdc | < ± 0.05% span/10°C | 25:1 | |
3500-AL-20-NF-2가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | Chemicals, Filter Monitoring, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, Level Monitoring and Control, Oil, Petrochemical, Pump Control | CE | CE; -IS, -FP suffix: ATEX Compliant CE 0518 II 2G ia/db IIC T6/T5 Gb Ta<80°C, T5 / II 2D Ex ia/tb IIIC T85°C/T100°C Db. TypeCertificate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013,EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certificate of Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2006, IEC 60079-31:2013. | 0 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA | IP66, IP67, NEMA Type 4X | ≤0.075% FSO/3 years | 1,000,000 hours | Aluminum | 316L Stainless Steel, FKM | Differential | 15 psi | 0 psi | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | Current | 1/4 in | NPT Female | 16 to 480 ms | DC | 10 to 55 Vdc | < ± 0.05% span/10°C | 25:1 | |
3500-AL-10-NF-2가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | Chemicals, Filter Monitoring, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, Level Monitoring and Control, Oil, Petrochemical, Pump Control | CE | CE; -IS, -FP suffix: ATEX Compliant CE 0518 II 2G ia/db IIC T6/T5 Gb Ta<80°C, T5 / II 2D Ex ia/tb IIIC T85°C/T100°C Db. TypeCertificate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013,EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certificate of Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2006, IEC 60079-31:2013. | 0 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA | IP66, IP67, NEMA Type 4X | ≤0.075% FSO/3 years | 1,000,000 hours | Aluminum | 316L Stainless Steel, FKM | Differential | 200 inH₂O | -200 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | Current | 1/4 in | NPT Female | 16 to 480 ms | DC | 10 to 55 Vdc | < ± 0.05% span/10°C | 25:1 | |
3500-AL-08-NF-2가격 문의19 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | Chemicals, Filter Monitoring, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, Level Monitoring and Control, Oil, Petrochemical, Pump Control | CE | CE; -IS, -FP suffix: ATEX Compliant CE 0518 II 2G ia/db IIC T6/T5 Gb Ta<80°C, T5 / II 2D Ex ia/tb IIIC T85°C/T100°C Db. TypeCertificate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013,EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certificate of Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2006, IEC 60079-31:2013. | 0 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA | IP66, IP67, NEMA Type 4X | ≤0.075% FSO/3 years | 1,000,000 hours | Aluminum | 316L Stainless Steel, FKM | Differential | 100 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | Current | 1/4 in | NPT Female | 16 to 480 ms | DC | 10 to 55 Vdc | < ± 0.05% span/10°C | 25:1 | |
3500-AL-04-NF-2가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | Chemicals, Filter Monitoring, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, Level Monitoring and Control, Oil, Petrochemical, Pump Control | CE | CE; -IS, -FP suffix: ATEX Compliant CE 0518 II 2G ia/db IIC T6/T5 Gb Ta<80°C, T5 / II 2D Ex ia/tb IIIC T85°C/T100°C Db. TypeCertificate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013,EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certificate of Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2006, IEC 60079-31:2013. | 0 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA | IP66, IP67, NEMA Type 4X | ≤0.075% FSO/3 years | 1,000,000 hours | Aluminum | 316L Stainless Steel, FKM | Differential | 30 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | Current | 1/4 in | NPT Female | 16 to 480 ms | DC | 10 to 55 Vdc | < ± 0.05% span/10°C | 25:1 | |
3500-AL-02-NF-2가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.075 % | ± 0.075% FS (@ 20°C) | Chemicals, Filter Monitoring, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, Level Monitoring and Control, Oil, Petrochemical, Pump Control | CE | CE; -IS, -FP suffix: ATEX Compliant CE 0518 II 2G ia/db IIC T6/T5 Gb Ta<80°C, T5 / II 2D Ex ia/tb IIIC T85°C/T100°C Db. TypeCertificate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013,EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certificate of Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2006, IEC 60079-31:2013. | 0 to 60 s | N/A | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA | IP66, IP67, NEMA Type 4X | ≤0.075% FSO/3 years | 1,000,000 hours | Aluminum | 316L Stainless Steel, FKM | Differential | 10 inH₂O | -10 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam | 85 °C | -40 °C | Current | 1/4 in | NPT Female | 16 to 480 ms | DC | 10 to 55 Vdc | < ± 0.05% span/10°C | 25:1 |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
