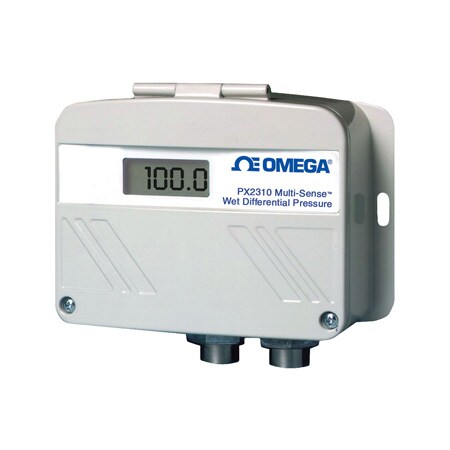

범위 조정 가능, 습식/습식 차압 고압 트랜스미터
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 3개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Applications | Burst Pressure | Burst Pressure Note | Cavity Volume | Compensated Temperature, Max | Compensated Temperature, Min | Diameter | Electrical Connection | Electrical Output | Electrical Output Note | Enclosure Material | Enclosure Ratings | Length | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Size | Process Connection Type | Proof Pressure | Proof Pressure Note | Response Time | Response Time Note | Shock | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Voltage | Thermal Effect on Zero error, Max | Vibration | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX2310-250DX2,098,950 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Accuracy RSS Ranges A, B & C: ± 1.0% Full Scale; Range D: ± 2.0% RSS full scale | Rangable | Air and HVAC, Energy Generation and Distribution, Fluid Measurement and Control, Industrial and Manufacturing, Level Monitoring and Control | 40 psi Maximum | 40 x FS | 0.2 cc | 54 °C | 0 °C | 51 mm | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA | 0 to 5 Vdc, 0 to 10 Vdc, 1 to 5 Vdc 3-wire system | Die cast aluminum powder coated | NEMA Type 4 | 102 mm | 17-4 Stainless Steel | Differential | 250 psi | 0 psi | 85 °C | -20 °C | Selectable | 1/8 in | NPT Female | 2.2x Full Scale | 2.2X FS | 1 to 5 sec | 1 to 5 seconds, selectable | 200 g | 85 °C | -20 °C | 12 to 30 Vdc @ 5 mA (typical)/18 to 28 Vac 40 mA (typical) (reverse polarity protected) | 12 to 30 Vdc | 2.0% FS, 2.0% FS | 10 g from 50 to 2000 Hz | 0.7 kg | 152 mm | |
PX2310-100DX2,098,950 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Accuracy RSS Ranges A, B & C: ± 1.0% Full Scale; Range D: ± 2.0% RSS full scale | Rangable | Air and HVAC, Energy Generation and Distribution, Fluid Measurement and Control, Industrial and Manufacturing, Level Monitoring and Control | 40 psi Maximum | 40 x FS | 0.2 cc | 54 °C | 0 °C | 51 mm | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA | 0 to 5 Vdc, 0 to 10 Vdc, 1 to 5 Vdc 3-wire system | Die cast aluminum powder coated | NEMA Type 4 | 102 mm | 17-4 Stainless Steel | Differential | 100 psi | 0 psi | 85 °C | -20 °C | Selectable | 1/8 in | NPT Female | 2.2x Full Scale | 2.2X FS | 1 to 5 sec | 1 to 5 seconds, selectable | 200 g | 85 °C | -20 °C | 12 to 30 Vdc @ 5 mA (typical)/18 to 28 Vac 40 mA (typical) (reverse polarity protected) | 12 to 30 Vdc | 2.0% FS, 2.0% FS | 10 g from 50 to 2000 Hz | 0.7 kg | 152 mm | |
PX2310-050DX2,098,950 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | > 0.25% | Accuracy RSS Ranges A, B & C: ± 1.0% Full Scale; Range D: ± 2.0% RSS full scale | Rangable | Air and HVAC, Energy Generation and Distribution, Fluid Measurement and Control, Industrial and Manufacturing, Level Monitoring and Control | 40 psi Maximum | 40 x FS | 0.2 cc | 54 °C | 0 °C | 51 mm | 1/2 in NPT female Conduit with Screw Terminal block | 4 to 20 mA | 0 to 5 Vdc, 0 to 10 Vdc, 1 to 5 Vdc 3-wire system | Die cast aluminum powder coated | NEMA Type 4 | 102 mm | 17-4 Stainless Steel | Differential | 50 psi | 0 psi | 85 °C | -20 °C | Selectable | 1/8 in | NPT Female | 2.2x Full Scale | 2.2X FS | 1 to 5 sec | 1 to 5 seconds, selectable | 200 g | 85 °C | -20 °C | 12 to 30 Vdc @ 5 mA (typical)/18 to 28 Vac 40 mA (typical) (reverse polarity protected) | 12 to 30 Vdc | 2.0% FS, 2.0% FS | 10 g from 50 to 2000 Hz | 0.7 kg | 152 mm |
